固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC2-6R0-RFIXED IND 6UH 17A 4.6 MOHM SMD |
0 | - |
|
数据表 |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | 6 µH | ±20% | 17 A | 16.5A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-R68-RFIXED IND 680NH 52.9A 0.6MOHM SM |
0 | - |
|
数据表 |
HC2 | Nonstandard | Bulk | Obsolete | Wirewound | - | 680 nH | ±20% | 52.9 A | 50A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-1R0TR-RFIXED IND 1UH 33A 1.3 MOHM SMD |
0 | - |
|
数据表 |
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 33 A | 42.5A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-2R2TR-RFIXED IND 2.2UH 24.3A 2.3MOHM SM |
0 | - |
|
数据表 |
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 24.3 A | 31.9A | Unshielded | 2.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|
|
HC2-R68TR-RFIXED IND 680NH 52.9A 0.6MOHM SM |
0 | - |
|
数据表 |
HC2 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 nH | ±20% | 52.9 A | 50A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.748" W (19.20mm x 19.00mm) | 0.500" (12.70mm) |
|

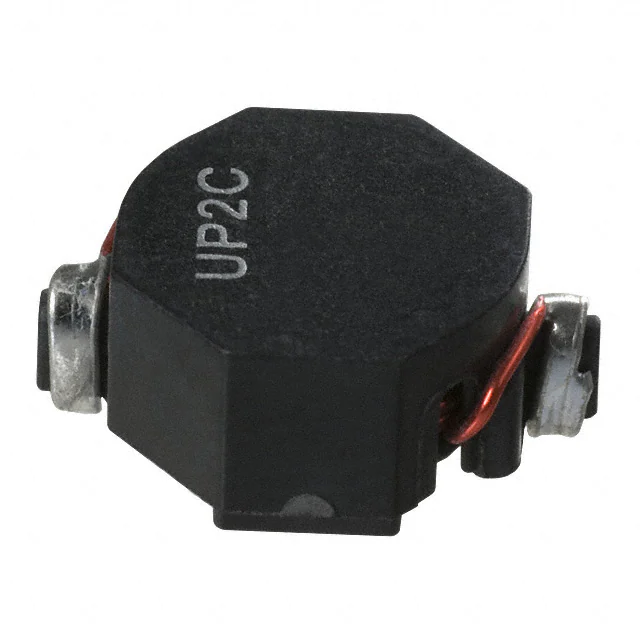

UP2C-100-RFIXED IND 10UH 3.61A 28.3MOHM SM |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.61 A | 3.94A | Unshielded | 28.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-150-RFIXED IND 15UH 3.17A 36.9MOHM SM |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.17 A | 3.17A | Unshielded | 36.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-1R0-RFIXED IND 1UH 9.8A 3.9 MOHM SMD |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 9.8 A | 11.8A | Unshielded | 3.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-1R5-RFIXED IND 1.5UH 8.1A 5.6MOHM SMD |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 8.1 A | 10A | Unshielded | 5.6mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-220-RFIXED IND 22UH 2.61A 54 MOHM SMD |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.61 A | 2.65A | Unshielded | 54mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-2R2-RFIXED IND 2.2UH 7.5A 6.6MOHM SMD |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 7.5 A | 8.67A | Unshielded | 6.6mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-3R3-RFIXED IND 3.3UH 5.9A 10.5MOHM SM |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.9 A | 6.84A | Unshielded | 10.5mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-470-RFIXED IND 47UH 1.77A 118.5 MOHM |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.77 A | 1.83A | Unshielded | 118.5mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-4R7-RFIXED IND 4.7UH 5.62A 11.7 MOHM |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.62 A | 6.2A | Unshielded | 11.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-680-RFIXED IND 68UH 1.57A 151.7 MOHM |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.57 A | 1.53A | Unshielded | 151.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
|
UP2C-6R8-RFIXED IND 6.8UH 4.42A 18MOHM SMD |
0 | - |
|
数据表 |
UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.42 A | 4.82A | Unshielded | 18mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|
UP4T-221-RFIXED IND 220UH 1.4A 357.1 MOHM |
0 | - |
|
数据表 |
UNI-PAC™ 4T | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Wirewound | - | 220 µH | ±20% | 1.4 A | 2.4A | Unshielded | 357.1mOhm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.518" (13.15mm) |
|
ELJ-QF1N0DFFIXED IND 1NH 400MA 50 MOHM SMD |
0 | - |
|
数据表 |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1 nH | ±0.3nH | 400 mA | - | Unshielded | 50mOhm Max | 10 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELC-16B150LFIXED IND 15UH 5.4A 26 MOHM TH |
0 | - |
|
数据表 |
16B | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Wirewound | - | 15 µH | ±20% | 5.4 A | - | Unshielded | 26mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
PM74SH-100MFIXED IND 10UH 1.65A 70 MOHM SMD |
0 | - |
|
数据表 |
PM74SH | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.65 A | - | Shielded | 70mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
