直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTH12050WASTDC DC CONVERTER 1.2-5.5V |
113 | - |
|
数据表 |
PTH12050 | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | - | - | - | - | |
|
UVT020A0X3-SRDZDC DC CONVERTER 0.45-5.5V 110W |
200 | - |
|
数据表 |
MicroDLynx™ | Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.45 ~ 5.5V | - | - | - | 20A | 110 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95.2% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
AG9205DC DC CONVERTER 5V 13W |
145 | - |
|
数据表 |
- | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 5V | - | - | - | 2.6A | 13 W | - | - | - | -20°C ~ 70°C | 88% | - | - | Through Hole | - | - | - | 60950-1 | |
|
|
LTM4659EV#PBFLOW VIN, HIGH EFFICIENCY 8A STEP |
520 | - |
|
数据表 |
LTM | 25-LFLGA | Tray | Active | Linear Regulator Replacement | 1 | 2.25V | 5.5V | 0.5 ~ 5.5V | - | - | - | 10A | 55 W | - | ITE (Commercial) | Adjustable Output, Load Sharing, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 25-LGA (4x4) | - | - | - | |
|
|
PKR2113ASIDC DC CONVERTER 12V 12W |
445 | - |
|
数据表 |
PKR 2000A (15W) | 18-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1A | 12 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -45°C ~ 110°C (With Derating) | 88% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|

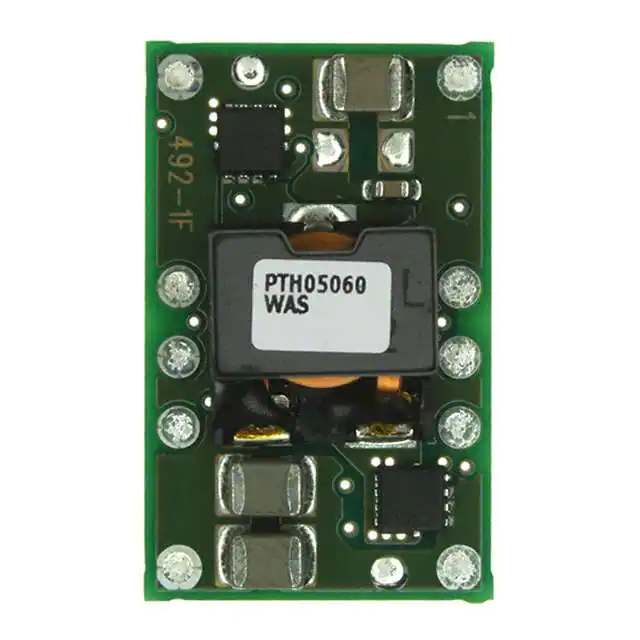

PTH05060WASDC DC CONVERTER 0.8-3.6V 36W |
36 | - |
|
数据表 |
PTH05060W (36W) | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | - | - | - | - | |
|
YEV09T03-0GDC DC CONVERTER 0.59-5.1V |
588 | - |
|
数据表 |
YEV09 | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 13.8V | 0.59 ~ 5.1V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | 0°C ~ 70°C | 93% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
IMM0524S3V3DC DC CONVERTER 3.3V 4W |
149 | - |
|
数据表 |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CSA, TUV, UL | - | |
|
RS-053.3S/H3DC DC CONVERTER 3.3V 2W |
122 | - |
|
数据表 |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 500mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
RS-0509D/H2DC DC CONVERTER +/-9V 2W |
132 | - |
|
数据表 |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
SLDN-06D1ALGDC DC CONVERTER 0.45-5.5V 33W |
722 | - |
|
数据表 |
SLDN-06D1Ax | 17-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 14V | 0.45 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | 93.8% | - | - | Surface Mount | - | - | - | - | |
|

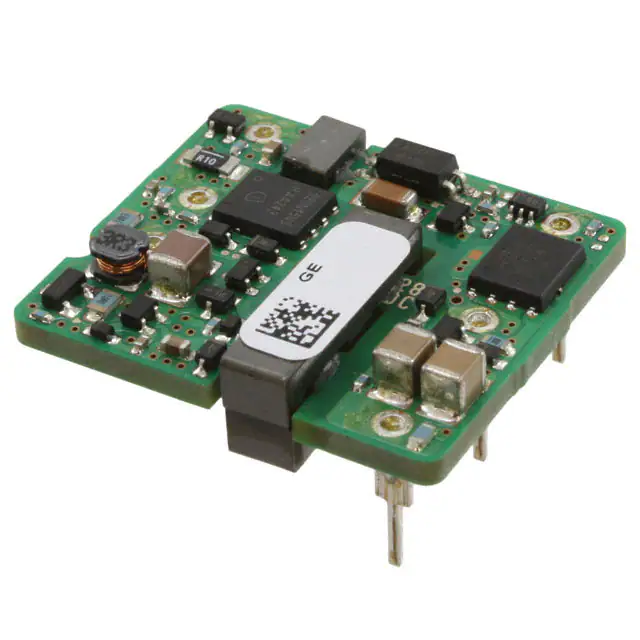

SHHD005A0F4ZDC DC CONVERTER 3.3V 15W |
448 | - |
|
数据表 |
Hammerhead™ SHHD005A0F (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 5A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | Enable, Active High | - | - | |
|

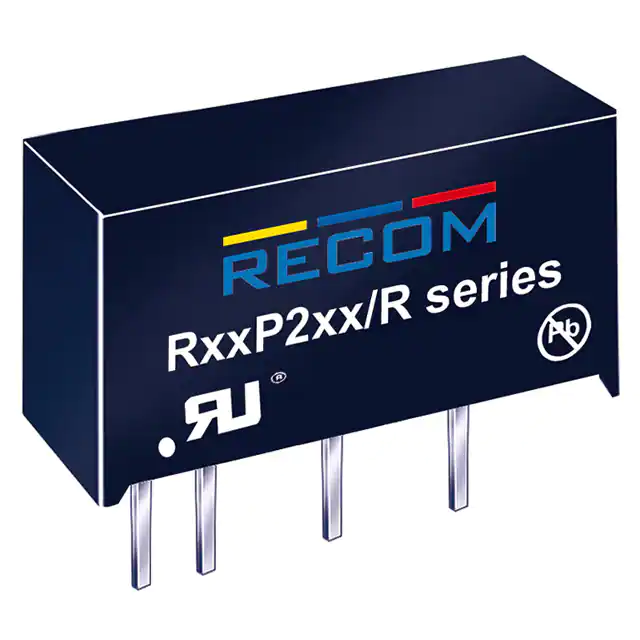

R15P212S/R6.4DC DC CONVERTER 12V 2W |
195 | - |
|
数据表 |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 167mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | |
|
|
LTM4659IV#PBFLOW VIN, HIGH EFFICIENCY 8A STEP |
535 | - |
|
数据表 |
LTM | 25-LFLGA | Tray | Active | Linear Regulator Replacement | 1 | 2.25V | 5.5V | 0.5 ~ 5.5V | - | - | - | 10A | 55 W | - | ITE (Commercial) | Adjustable Output, Load Sharing, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 25-LGA (4x4) | - | - | - | |
|
|
RS-1215D/H3DC DC CONVERTER +/-15V 2W |
121 | - |
|
数据表 |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
SLDN-12D1ALRDC DC CONVERTER 0.45-5.5V 66W |
900 | - |
|
数据表 |
SLDN | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.45 ~ 5.5V | - | - | - | 12A | 66 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 95.4% | - | - | Surface Mount | - | - | - | - | |
|
|
SIC951ED-T1-GE34.5 - 20V, INPUT25A MICROBRICK R |
1,100 | - |
|
数据表 |
microBRICK® SiC951 | 60-PowerBFQFN | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.3 ~ 5.5V | - | - | - | 25A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 97% | - | - | Surface Mount | PowerPAK® MLP60-A6C | - | - | - | |
|

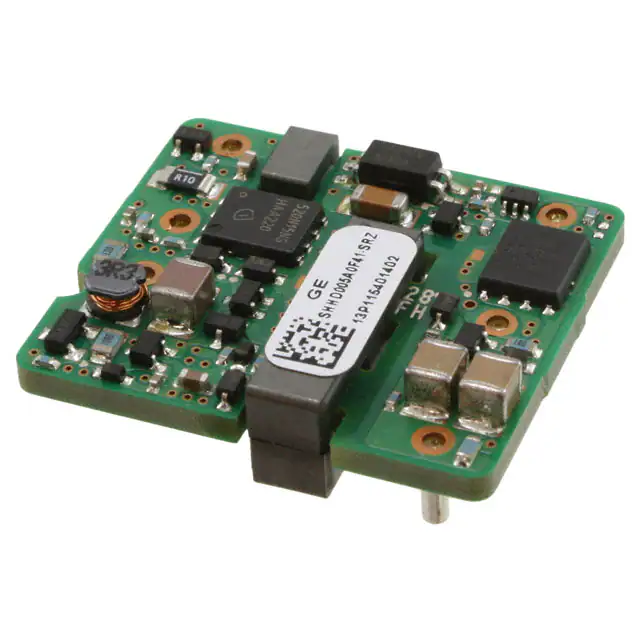

SHHD005A0F41-SRZDC DC CONVERTER 3.3V 15W |
369 | - |
|
数据表 |
Hammerhead™ SHHD005A0F (15W) | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 5A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
PTH05010YAZDC DC CONVERTER 0.55-1.8V |
155 | - |
|
数据表 |
PTH05010Y | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.55 ~ 1.8V | - | - | - | 15A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 88% | - | - | Surface Mount | - | - | - | - | |
|

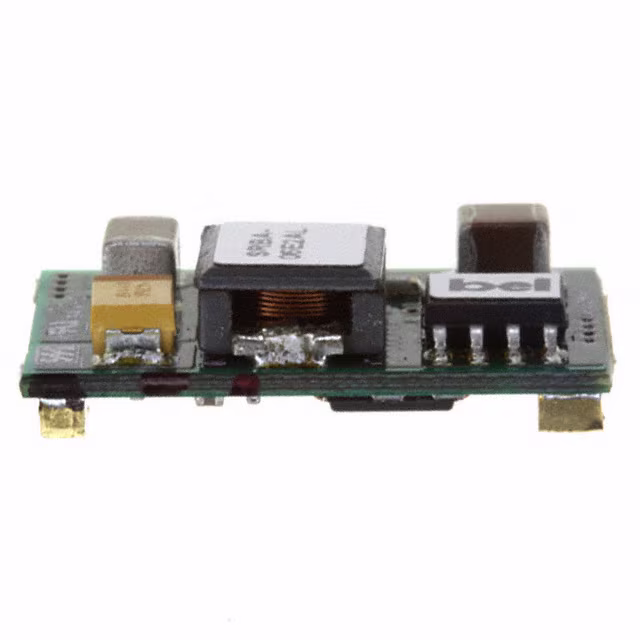

SRBA-06E2ALGDC DC CONVERTER 0.75-5V 30W |
524 | - |
|
数据表 |
SRBA | 6-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.75 ~ 5V | - | - | - | 6A | 30 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | - | Enable, Active Low | - | - |
