直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

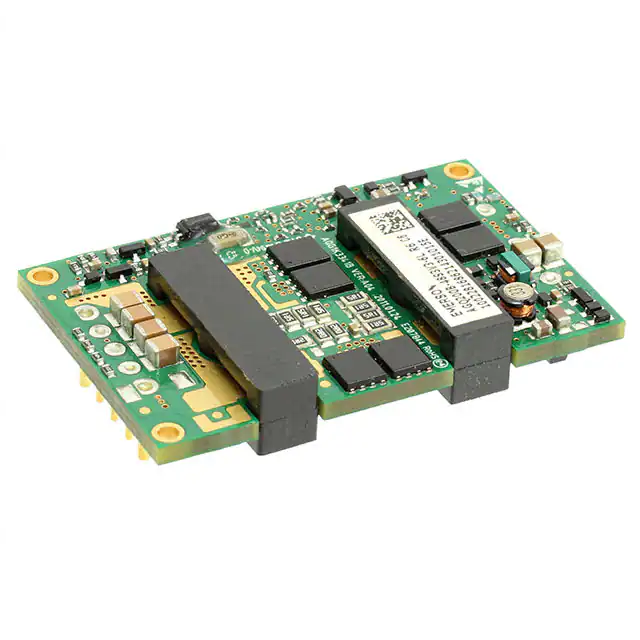

AGQ200B-48S3V3-6LDC DC CONVERTER 3.3V 200W |
145 | - |
|
数据表 |
AGQ200 (200W) | 8-DIP Module, 1/4 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 40A | 200 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
BMR4570005/001DC DC CONVERTER 12V 264W |
71 | - |
|
数据表 |
BMR457 (300W) | Eighth Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 22A | 264 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.2% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
RGA24250W014A-003DC DC CONVERTER 3.3-24V 250W |
119 | - |
|
数据表 |
RGA (250W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 40V | 3.3 ~ 24V | - | - | - | 14A | 336 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 110°C | 98% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE | - | |
|
|
RGA4W250W010A-003DC DC CONVERTER 3.3-40V 250W |
98 | - |
|
数据表 |
RGA (250W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 40V | - | - | - | 10A | 400 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 110°C | 97.5% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE | - | |
|
|
RGA4W250W020A-003DC DC CONVERTER 3.3-15V 250W |
72 | - |
|
数据表 |
RGA (250W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 15V | - | - | - | 20A | 300 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 110°C | 97% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE | - | |
|
|
SLDN-40E1ALRDC DC CONVERTER 0.45-2V 80W |
690 | - |
|
数据表 |
- | 19-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14.4V | 0.45 ~ 2V | - | - | - | 40A | 80 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 91.5% | - | - | Surface Mount | - | Enable, Active Low | - | 60950-1 | |
|
THN 20-4810WIDC DC CONVERTER 3.3V 15W |
30 | - |
|
数据表 |
THN 20WI (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 4.5A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 86% | - | - | Through Hole | - | - | CB, cURus | - | |
|
THM 10-1210DC DC CONVERTER 3.3V 8.3W |
35 | - |
|
数据表 |
THM 10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 2.5A | 8.3 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | - | - | CB, cURus | - | |
|
LTM8052MPYDC DC CONVERTER 1.2-24V |
119 | - |
|
数据表 |
µModule® | 81-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -55°C ~ 125°C | - | - | - | Surface Mount | 81-BGA (15x11.25) | - | - | - | |
|
PKU5515SPIDC DC CONVERTER 15V 51W |
154 | - |
|
数据表 |
PKU 5500S (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 3.4A | 51 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
|
AVO100-48S05SLDC DC CONVERTER 5V 100W |
218 | - |
|
数据表 |
AVO100 (100W) | 8-SMD Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92.8% | - | - | Surface Mount | - | - | - | - | |
|
THN 15-4813WIRDC DC CONVERTER 15V 15W |
28 | - |
|
数据表 |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 1A | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
|
BMR4560005/001DC DC CONVERTER 12V 420W |
58 | - |
|
数据表 |
BMR456 (468W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
|
AVO120-48S12-4LDC DC CONVERTER 12V 120W |
224 | - |
|
数据表 |
AVO120 (120W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - | |
|
IEA48007A120V-000-RDC DC CONVERTER 12V 78W |
80 | - |
|
数据表 |
iEA (75W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 6.5A | 78 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 125°C | 91% | - | - | Through Hole | Eighth Brick | - | - | - | |
|
THD 15-2422NDC DC CONVERTER +/-12V 15W |
37 | - |
|
数据表 |
THD 15N (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
REM6E-2412D/R10/ADC DC CONVERTER +/-12V 6W |
30 | - |
|
数据表 |
MEDLINE REM6E (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 10 kV | Medical | OCP, OVP, SCP | -40°C ~ 75°C | 83% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
JMR1024S0510W PCB DIP24 9-36VDC INPUT 4:1 |
80 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 | |
|
|
JMR1048S0510W PCB DIP24 18-75VDC INPUT 4:1 |
80 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 | |
|
|
JMR1012S0510W PCB DIP24 4.5-18VDC INPUT 4: |
75 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 2A | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 84.5% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
