拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5249YCDB17TOGGLE SWITCH 5000 MINIATURE |
0 | - |
|
数据表 |
5000 | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
A223P41Y9AV2QSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A127S2CXZQSWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A127T11TWGSWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | Wire Wrap | - | 15/32-32 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221P31D9AV2BSWITCH TOGGLE DPDT 0.5VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221S1YAQSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223P31HZBSWITCH TOGGLE DPDT 0.5VA 28V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S1D9AV2QSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223T11TCQSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A226P41DCQSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A226S1CXZQSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A231T1TZQSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A232L21YZ3GPSWITCH TOGGLE SP3T 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Anti-Rotation | 13.97mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A233M1D9AV2QSWITCH TOGGLE SP3T 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SP3T | On-On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A323S1YZQSWITCH TOGGLE 3PDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221S1YAV2QSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221T1TCQSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
5249WWATOGGLE SWITCH 5000 MINIATURE |
0 | - |
|
数据表 |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|

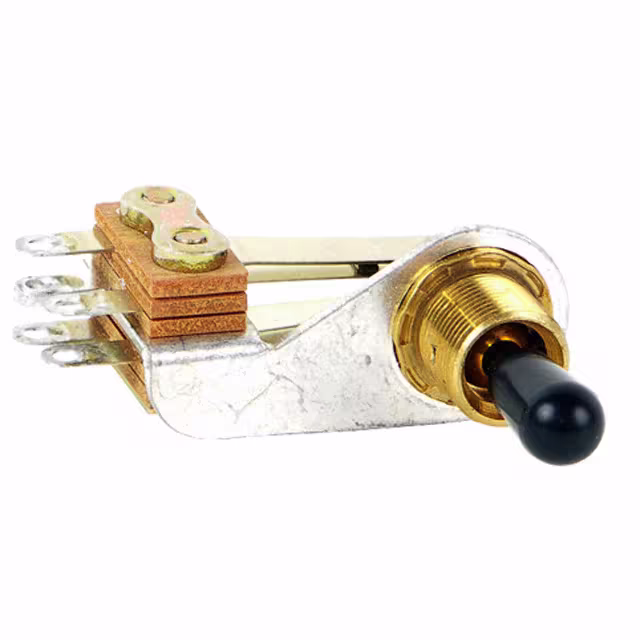

12016XSWITCH TOGGLE 3POS R/A 1B/1B |
0 | - |
|
数据表 |
12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|
|
1TL91-4SWITCH TOGGLE SPST-NC 10A 125V |
0 | - |
|
数据表 |
TL | Bulk | Obsolete | Panel Mount | SPST-NC | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
