铝 - 聚合物电容器
铝 - 聚合物电容器
铝聚合物电容器是采用导电聚合物作为电解质的铝电解电容器,具有低 ESR,高纹波电流能力,寿命长,温度稳定性好和适合高频电源电路等特点,常用于电源滤波,去耦,储能,电压稳定,DC-DC 转换器输出滤波和纹波电流吸收等电路场景.常见类型包括贴片铝聚合物电容,插件铝聚合物电容,固态铝电解电容和混合型聚合物铝电容等.
宝利科技作为专业电子元器件分销商,可为客户供应行业主流厂商的多系列铝聚合物电容器产品,包括松下(Panasonic),尼吉康(Nichicon),红宝石(Rubycon),United Chemi-Con,基美(KEMET),威世(Vishay),京瓷AVX(KYOCERA AVX),艾华(AISHI)等品牌.您可在下方产品列表中查询所需铝聚合物电容器型号的库存,价格,封装规格,品牌,参数及 PDF 规格书等相关资料,并提交 BOM 或型号清单进行批量询价.
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700X107M010ATE010E015CAP ALUM POLY 100UF 20% 10V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X107M010ATE0152478CAP ALUM POLY 100UF 20% 10V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
PCR1H121MCS1GSCAP ALUM HYBRID 56UF 20% 63V SMD |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PCG0G221MCL1GSCAP ALUM POLY 220UF 20% 4V SMD |
0 | - |
|
数据表 |
PCG | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 32mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
2SXE100MCAP ALUM POLY 100UF 20% 2V SMD |
0 | - |
|
数据表 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

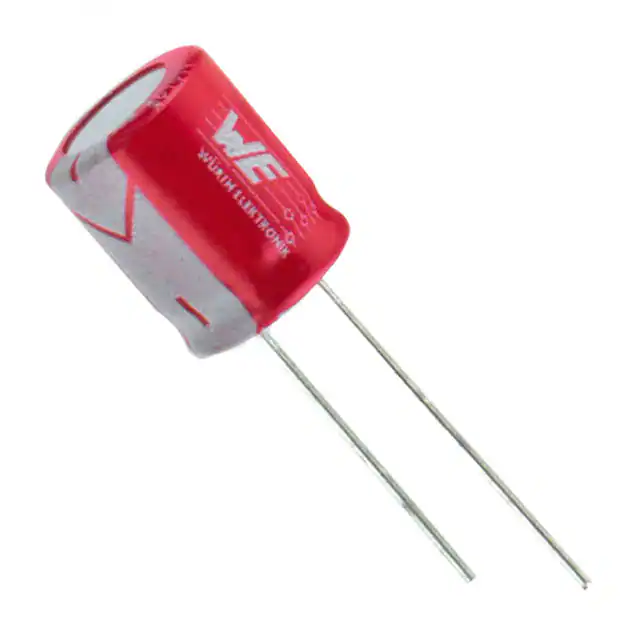

870235174004CAP ALUM POLY 680UF 20% 6.3V TH |
0 | - |
|
数据表 |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
MAL218697512E3CAP ALUM POLY 560UF 20% 16V SMD |
0 | - |
|
数据表 |
186 CPNT | Box | Active | Polymer | 560 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | |
|
MAL218597556E3CAP ALUM POLY 330UF 20% 20V SMD |
0 | - |
|
- |
185 CPNZ | Box | Active | Polymer | 330 µF | ±20% | 20 V | 23mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210 mA @ 120 Hz | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | |
|
MAL218197002E3CAP ALUM POLY 82UF 20% 35V SMD |
0 | - |
|
数据表 |
181 CPL | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | 29 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
|
MAL218197202E3CAP ALUM POLY 270UF 20% 20V SMD |
0 | - |
|
数据表 |
181 CPL | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 20 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | 21 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
|
MAL218197602E3CAP ALUM POLY 150UF 20% 25V SMD |
0 | - |
|
数据表 |
181 CPL | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | 28 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
|
A700X227M006ATE0157280CAP ALUM POLY 220UF 20% 6.3V SMD |
0 | - |
|
数据表 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
MAL218497564E3CAP ALUM POLY 390UF 20% 20V SMD |
0 | - |
|
数据表 |
184 CPNS | Box | Active | Polymer | 390 µF | ±20% | 20 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 4.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
PCH1J560MCL1GSCAP ALUM POLY 56UF 20% 63V SMD |
0 | - |
|
数据表 |
PCH | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 27mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.476" (12.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
A700X227M004ATE009CAP ALUM POLY 220UF 20% 4V SMD |
0 | - |
|
数据表 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X107M008ATE0102478CAP ALUM POLY 100UF 20% 8V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 8 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
A700X477M2R5ATE007CAP ALUM POLY 470UF 20% 2.5V SMD |
0 | - |
|
数据表 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
A700X567M002ATE009CAP ALUM POLY 560UF 20% 2V SMD |
0 | - |
|
数据表 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
RSL1E150MCN1GBCAP ALUM POLY 15UF 20% 25V SMD |
0 | - |
|
数据表 |
FPCAP, RSL | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 25 V | 55mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.177" (4.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount | |
|

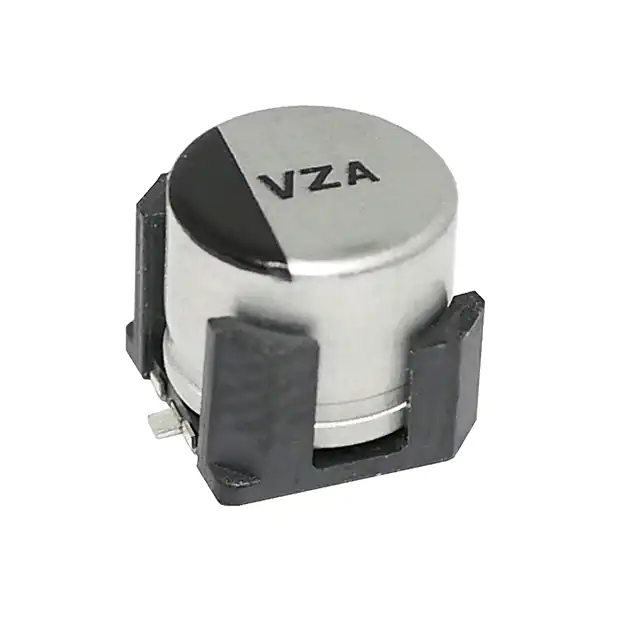

EEH-ZA1V330VCAP ALUM HYBRID 33UF 20% 35V SMD |
0 | - |
|
数据表 |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 130 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
