铝 - 聚合物电容器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

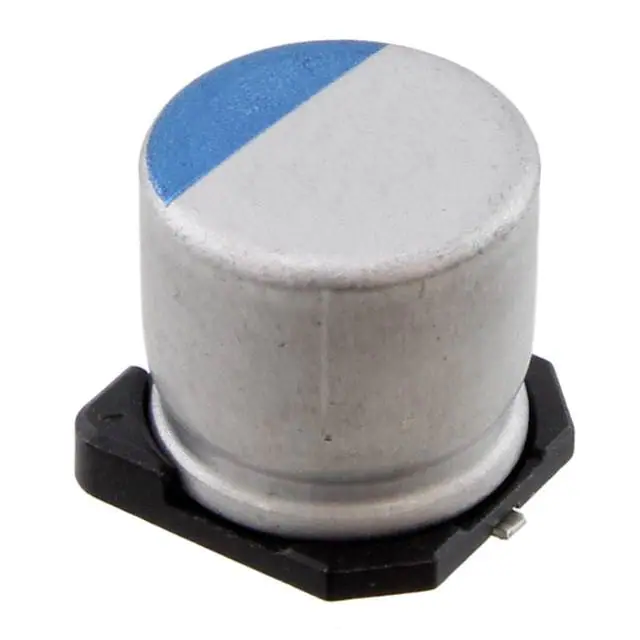

PCX1V680MCL1GSCAP ALUM POLY 68UF 20% 35V SMD |
0 | - |
|
数据表 |
PCX | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPE1C561MP30811UCAP ALUM POLY 560UF 20% 16V TH |
0 | - |
|
数据表 |
UPE | Active | Polymer | 560 µF | ±20% | 16 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.97 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | ||
|
B40640B8397M001CAP ALUM HYBRID 390UF 20% 63V TH |
0 | - |
|
数据表 |
B40640 | Tray | Active | Hybrid | 390 µF | ±20% | 63 V | 6.1mOhm | 4000 Hrs @ 125°C | -55°C ~ 150°C | AEC-Q200 | Automotive | High Vibration | - | 10.2 A @ 20 kHz | - | - | 0.551" Dia x 0.984" L (14.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B40640B8397M011CAP ALUM HYBRID 390UF 20% 63V TH |
0 | - |
|
数据表 |
B40640 | Tray | Active | Hybrid | 390 µF | ±20% | 63 V | 6.1mOhm | 4000 Hrs @ 125°C | -55°C ~ 150°C | AEC-Q200 | Automotive | High Vibration | - | 10.2 A @ 20 kHz | - | - | 0.551" Dia x 0.984" L (14.00mm x 25.00mm) | - | - | Through Hole | |
|
|
B40650A8467M001CAP ALUM HYBRID 460UF 20% 63V TH |
0 | - |
|
数据表 |
B40650 | Tray | Active | Hybrid | 460 µF | ±20% | 63 V | 5.9mOhm | 10000 Hrs @ 105°C | -55°C ~ 135°C | - | General Purpose | - | - | 13.8 A @ 100 kHz | 6.5 mOhms | - | 0.551" Dia x 0.984" L (14.00mm x 25.00mm) | - | - | Through Hole | |
|

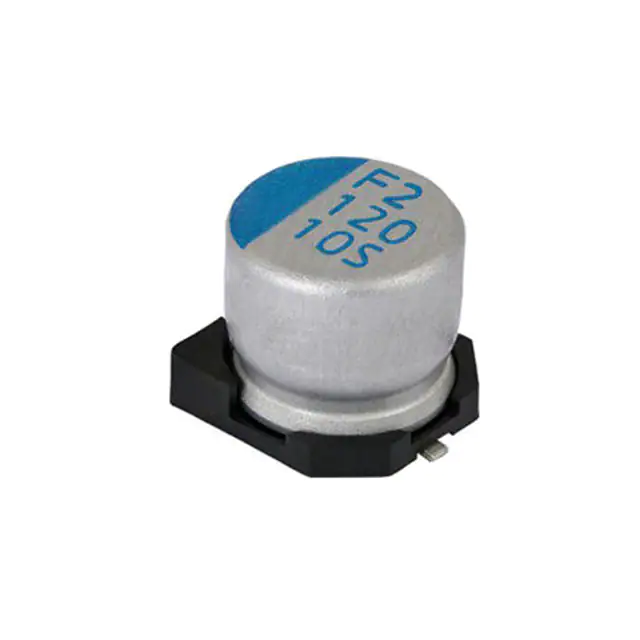

MAL218097002E3CAP ALUM POLY 82UF 20% 35V SMD |
0 | - |
|
数据表 |
180 CPS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | 20 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|
94SVP127X0010E7CAP ALUM POLY 120UF 20% 10V SMD |
0 | - |
|
数据表 |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 120 µF | ±20% | 10 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.12 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
94SVP826X0016E7CAP ALUM POLY 82UF 20% 16V SMD |
0 | - |
|
数据表 |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 82 µF | ±20% | 16 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.89 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PLV2A6R8MCL1TDCAP ALUM POLY 6.8UF 20% 100V TH |
24 | - |
|
数据表 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 6.8 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
MAL218497803E3CAP ALUM POLY 22UF 20% 63V SMD |
0 | - |
|
数据表 |
184 CPNS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount | |
|
PLV1K120MDL1TDCAP ALUM POLY 12UF 20% 80V T/H |
0 | - |
|
数据表 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 12 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
MAL218097707E3CAP ALUM POLY 1000UF 20% 4V SMD |
0 | - |
|
数据表 |
180 CPS | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 4 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.3 A @ 100 kHz | 14 mOhms | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|
|
MAL218097506E3CAP ALUM POLY 220UF 20% 16V SMD |
0 | - |
|
数据表 |
180 CPS | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.45 A @ 100 kHz | 22 mOhms | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount | |
|

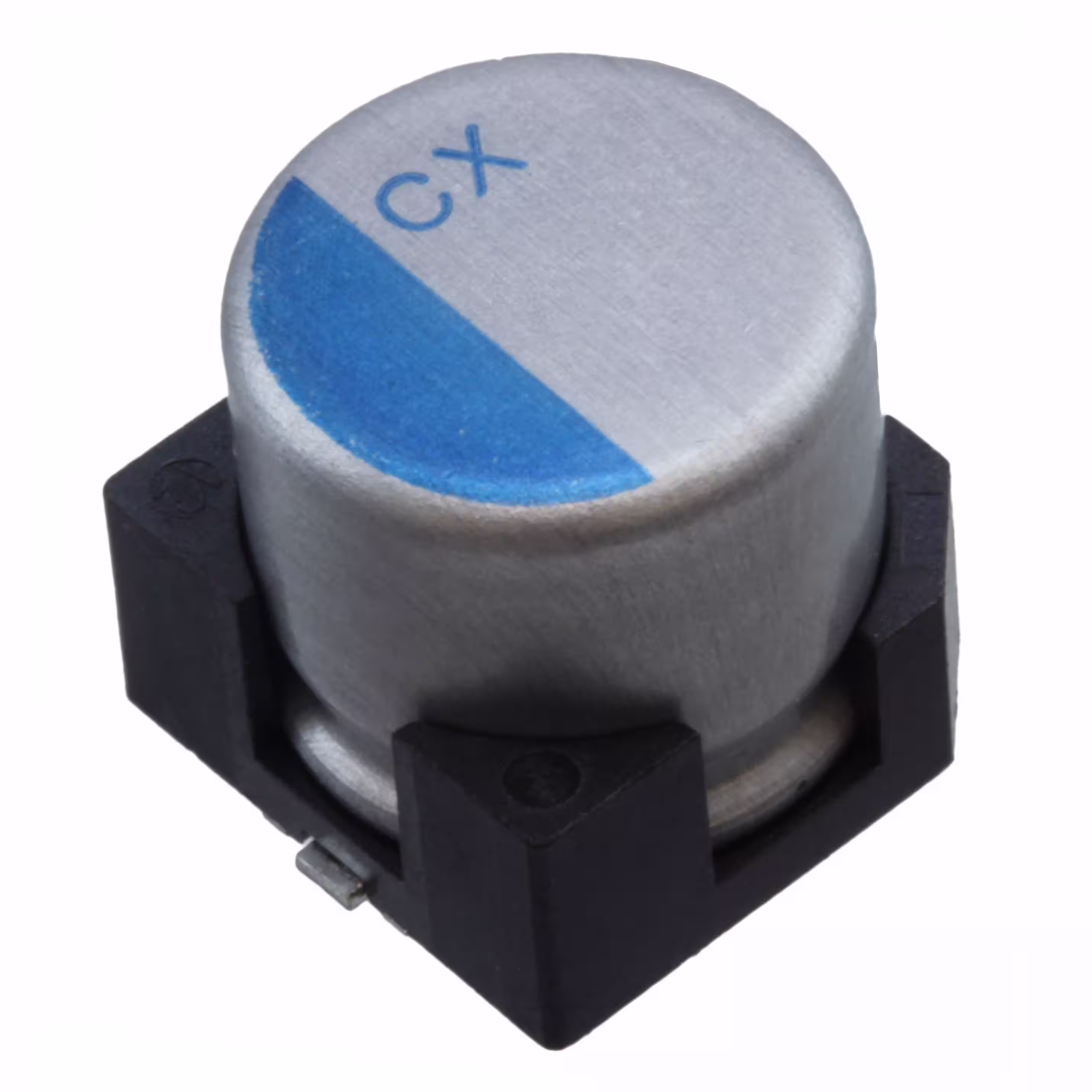

PCX1D181MCS1GSCAP ALUM POLY 180UF 20% 20V SMD |
0 | - |
|
数据表 |
PCX | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
94SVP157X0010E7CAP ALUM POLY 150UF 20% 10V SMD |
0 | - |
|
数据表 |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 150 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.56 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
PLV1E271MDL1TDCAP ALUM POLY 270UF 20% 25V TH |
0 | - |
|
数据表 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 270 µF | ±20% | 25 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
MAL218197203E3CAP ALUM POLY 390UF 20% 20V SMD |
0 | - |
|
数据表 |
181 CPL | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 20 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.95 A @ 100 kHz | 14 mOhms | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | |
|

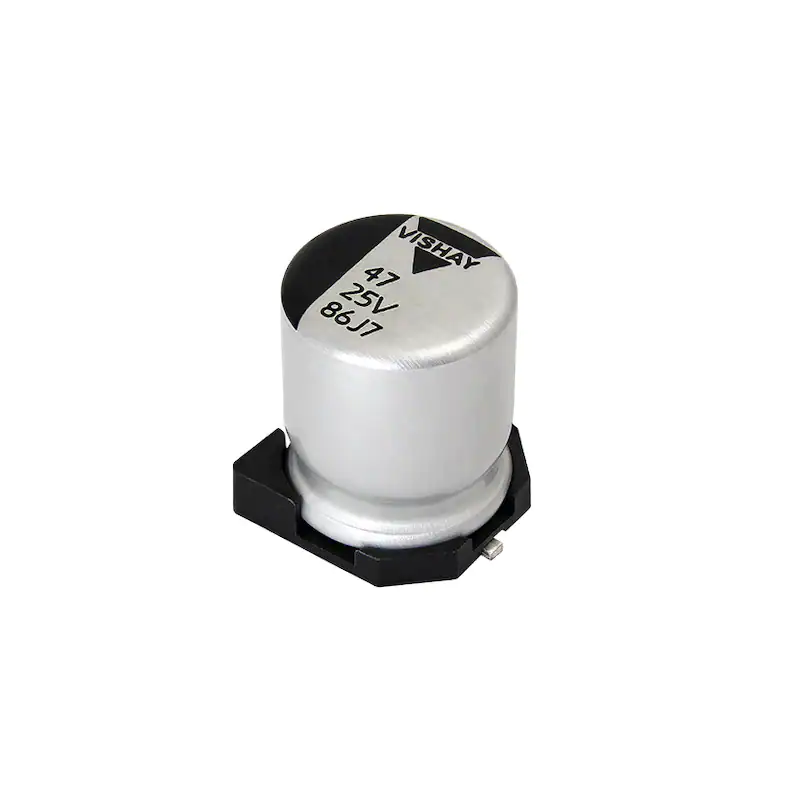

MAL218697109E3CAP ALUM POLY 180UF 20% 50V SMD |
0 | - |
|
- |
186 CPNT | Box | Active | Polymer | 180 µF | ±20% | 50 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | |
|
|
UPE0J821MP30808CAP ALUM POLY 820UF 20% 6.3V TH |
0 | - |
|
数据表 |
UPE | Active | Polymer | 820 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | ||
|
A700X337M002ATE015CAP ALUM POLY 330UF 20% 2V SMD |
0 | - |
|
数据表 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
