铝 - 聚合物电容器
铝 - 聚合物电容器
铝聚合物电容器是采用导电聚合物作为电解质的铝电解电容器,具有低 ESR,高纹波电流能力,寿命长,温度稳定性好和适合高频电源电路等特点,常用于电源滤波,去耦,储能,电压稳定,DC-DC 转换器输出滤波和纹波电流吸收等电路场景.常见类型包括贴片铝聚合物电容,插件铝聚合物电容,固态铝电解电容和混合型聚合物铝电容等.
宝利科技作为专业电子元器件分销商,可为客户供应行业主流厂商的多系列铝聚合物电容器产品,包括松下(Panasonic),尼吉康(Nichicon),红宝石(Rubycon),United Chemi-Con,基美(KEMET),威世(Vishay),京瓷AVX(KYOCERA AVX),艾华(AISHI)等品牌.您可在下方产品列表中查询所需铝聚合物电容器型号的库存,价格,封装规格,品牌,参数及 PDF 规格书等相关资料,并提交 BOM 或型号清单进行批量询价.
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RWA1C680MEGCAP ALUM POLY 68UF 20% 16V SMD |
0 | - |
|
数据表
|
FPCAP, WA | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 16 V | 55mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.177" (4.50mm) | - | Surface Mount | |
|
|
RWA1E470MEGCAP ALUM POLY 47UF 20% 25V SMD |
0 | - |
|
数据表
|
FPCAP, WA | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 25 V | 60mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.177" (4.50mm) | - | Surface Mount | |
|
|
RWA1E680MEGCAP ALUM POLY 68UF 20% 25V SMD |
0 | - |
|
数据表
|
FPCAP, WA | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 25 V | 60mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.177" (4.50mm) | - | Surface Mount | |
|
PLV2A180MDL1CAP ALUM POLY 18UF 20% 100V TH |
0 | - |
|
数据表
|
PLV | Bulk | Obsolete | Polymer | 18 µF | ±20% | 100 V | 38mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

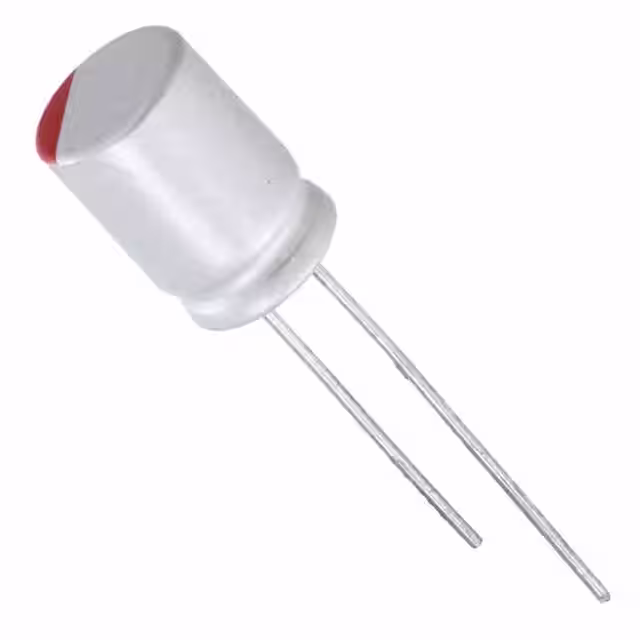

RNS0J470MDS1JTCAP ALUM POLY 47UF 20% 6.3V TH |
0 | - |
|
数据表
|
FPCAP, RNS | Tape & Box (TB) | Active | Polymer | 47 µF | ±20% | 6.3 V | 42mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 2.05 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | |
|
|
RNS1C220MDS1JTCAP ALUM POLY 22UF 20% 16V TH |
0 | - |
|
数据表
|
FPCAP, RNS | Tape & Box (TB) | Active | Polymer | 22 µF | ±20% | 16 V | 49mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | |
|
|
RNS1D150MDS1JTCAP ALUM POLY 15UF 20% 20V TH |
0 | - |
|
数据表
|
FPCAP, RNS | Tape & Box (TB) | Active | Polymer | 15 µF | ±20% | 20 V | 63mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | |
|
106XMPL012MG19CAP ALUM POLY 10UF 20% 12V SMD |
0 | - |
|
数据表
|
XMPL | Bulk | Active | Polymer | 10 µF | ±20% | 12 V | 55mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | |
|
|
106XMPL6R3MG19CAP ALUM POLY 10UF 20% 6.3V SMD |
0 | - |
|
数据表
|
XMPL | Bulk | Active | Polymer | 10 µF | ±20% | 6.3 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount | |
|
107UER016MEDCAP ALUM POLY 100UF 20% 16V TH |
0 | - |
|
数据表
|
UER | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 141 mA @ 120 Hz | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | |
|
107ULG035MGUCAP ALUM POLY 100UF 20% 35V TH |
0 | - |
|
数据表
|
ULG | Bulk | Active | Polymer | 100 µF | ±20% | 35 V | 65mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 93.5 mA @ 120 Hz | 1.87 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
107ULR025MFHCAP ALUM POLY 100UF 20% 25V TH |
0 | - |
|
数据表
|
ULR | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
107ULR035MGUCAP ALUM POLY 100UF 20% 35V TH |
0 | - |
|
数据表
|
ULR | Bulk | Active | Polymer | 100 µF | ±20% | 35 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
108UER016MGUCAP ALUM POLY 1000UF 20% 16V TH |
0 | - |
|
数据表
|
UER | Bulk | Active | Polymer | 1000 µF | ±20% | 16 V | 11mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
108ULR016MGUCAP ALUM POLY 1000UF 20% 16V TH |
0 | - |
|
数据表
|
ULR | Bulk | Active | Polymer | 1000 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
108ULR6R3MFHCAP ALUM POLY 1000UF 20% 6.3V TH |
0 | - |
|
数据表
|
ULR | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
226ULR010MEFCAP ALUM POLY 22UF 20% 10V TH |
0 | - |
|
数据表
|
ULR | Bulk | Active | Polymer | 22 µF | ±20% | 10 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 93.5 mA @ 120 Hz | 1.87 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
227ULR010MEFCAP ALUM POLY 220UF 20% 10V TH |
0 | - |
|
数据表
|
ULR | Bulk | Active | Polymer | 220 µF | ±20% | 10 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
227ULR010MEWCAP ALUM POLY 220UF 20% 10V TH |
0 | - |
|
数据表
|
ULR | Bulk | Active | Polymer | 220 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.276" (7.00mm) | - | Through Hole | |
|
227UVR6R3MEWCAP ALUM POLY 220UF 20% 6.3V SMD |
0 | - |
|
数据表
|
UVR | Bulk | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 122.5 mA @ 120 Hz | 2.45 A @ 120 kHz | - | - | 0.248" Dia (6.30mm) | 0.248" (6.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
