首页 > 产品 > 继电器 > 汽车继电器

汽车继电器

制造商	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度
AEI American Zettler BEULER CIT Relay and Switch Cole Hersee Egis Mobile Electric Franjobaim Hasco Relays KEMET Littelfuse Inc. Littelfuse/Commercial Vehicle Products Menbers Omron Automation and Safety Omron Electronics Inc-EMC Div Panasonic Electric Works Panasonic Electronic Components - Semiconductor Products Picker Components TE Connectivity TE Connectivity AMP Connectors TE Connectivity DEUTSCH Connectors TE Connectivity Potter & Brumfield Relays TE Connectivity Raychem Cable Protection YuanZe	* - 31, KISSLING 87, KISSLING 901087 901488 901643 A1 A10 A15 A16 A17 A1M A2 A2H A2K A3 A3F A3K A3M A4 A5 A6 A9 ACJ ACNH ACNM ACT ACTB ACTBP ACTE ACTL ACTP ACV ACVN ACW AEB AEV AEVS AZ9421A AZ947 AZ9471 AZ970 AZ9701 AZ970E AZ971 AZ9711 AZ9711E AZ971E AZ9731 AZ9731T5 AZ9741 AZ977 AZ979 AZ980 AZ9801 AZ983 AZ9831 AZ984 AZ9841 AZ9861 AZ987 AZ9871 AZ988 AZ989 AZ9891J CA CAR40 CAR80 CB CF CM CN-L CP CQ CR EC-N EM1 EP1 EP2 EP2F ET1 ET2 EV EX1 EX2 F4 F4A F7 F7 A FR401 FR402 G8G G8H G8HE G8HL G8HN G8J G8JE G8JN G8JR G8K G8N-1 G8ND-2 G8NW-2 G8PE G8PM G8QE G8QN G8QW G8SN G8TA G8V G8V-RH G8VL G8W G9EJ G9EJ-1-E HCR 150 HCR 75 High Current Relay 150 ISO MINI® JJM JS-M MICRO Micro Relay A Micro Relay K Mini K HV PC775 PC776 Power Relay B SD SRF-A TE TH Series V23071 V23074, AXICOM V23076 V23130 V23133 V23134, AXICOM V23201 VF4 VF7 VFM VFMA VKP	- Bag Box Bulk Retail Package Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Last Time Buy Obsolete	- Latching, Dual Coil Latching, Single Coil Non Latching	- 1.9 A 100 mA 100.8 mA 103 mA 105.3 mA 106.7 mA 109 mA 110 mA 110.1 mA 117 mA 120 mA 123.7 mA 125 mA 127.7 mA 128 mA 132 mA 133 mA 133.3 mA 134 mA 141 mA 143 mA 15 A 150 mA 150.9 mA 151 mA 157.9 mA 158.3 mA 160.9 mA 166 mA 166.7 mA 167 mA 168 mA 170 mA 170.2 mA 176 mA 2.5 A 2.8 A 20.8 mA 200 mA 208 mA 23.8 mA 240 mA 25 mA 250 mA 258 mA 260.9 mA 266.7 mA 288 mA 3 A 3.2 A 30 A 324 mA 324.3 mA 327 mA 33.3 mA 353 mA 37.5 mA 375 mA 39.6 mA 40 mA 41.7 mA 415 mA 429 mA 453 mA 47.2 mA 480 mA 49.7 mA 50 mA 500 mA 52 mA 53 mA 53.3 mA 53.5 mA 54.5 mA 55 mA 55.2 mA 55.8 mA 57 mA 57.1 mA 58 mA 60 A 62.5 mA 64 mA 66 mA 66.3 mA 66.7 mA 67 mA 68 mA 71.4 mA 72 A 74.1 mA 75 mA 75.6 mA 79.2 mA 80 mA 82.8 mA 83.3 mA 84 mA 85 mA 88.9 mA 90 mA 92.3 mA 94 mA 94.1 mA 95.2 mA 96 mA 96.8 mA 97.6 mA	- 10VDC 12VDC 24VDC 48VDC 5VDC 6VDC 9VDC	- DPDT (2 Form C) DPST-NO (2 Form A) SPDT (1 Form C) SPDT (1 Form C) x 2 SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (DM) (1 Form U) SPST-NO (DM) (1 Form X)	- 10 A 100 A 12 A 120 A 130 A 14 A 15 A 150 A 160 A 17 A 20 A 200 A 25 A 250 A 260 A 30 A 300 A 35 A 40 A 45 A 50 A 54 A 6 A 60 A 70 A 75 A 80 A	- 10VDC - Nom 110VDC - Max 120VDC - Max 12VDC 12VDC - Nom 13.5VDC - Nom 145VDC - Max 14VDC - Max 14VDC - Nom 150VDC - Max 15VDC - Max 16VDC - Max 20VDC - Max 24VDC - Max 24VDC - Nom 250VAC, 30VDC - Max 250VAC, 50VDC - Max 27VDC - Max 28VDC - Max 28VDC - Nom 30VDC - Max 32VDC - Max 380VAC, 75VDC - Max 400VDC - Max 400VDC - Nom 40VDC - Max 450VDC - Nom 500VDC - Nom 50VDC - Max 60VDC - Max 75VDC - Max	- 12 VDC 12.6 VDC 13.8 VDC 13.9 VDC 14 VDC 14.1 VDC 14.4 VDC 15.6 VDC 16 VDC 16.8 VDC 17.2 VDC 18 VDC 19 VDC 19.2 VDC 3.5 VDC 3.6 VDC 3.9 VDC 31.2 VDC 33.6 VDC 4.2 VDC 4.7 VDC 5.5 VDC 5.6 VDC 5.7 VDC 6 VDC 6.2 VDC 6.3 VDC 6.5 VDC 6.6 VDC 6.8 VDC 6.9 VDC 7 VDC 7.2 VDC 7.3 VDC 7.5 VDC 7.7 VDC 7.8 VDC 8 VDC 8.4 VDC 8.5 VDC 8.8 VDC 9 VDC	- 0.5 VDC 0.6 VDC 0.7 VDC 0.8 VDC 0.9 VDC 1 VDC 1.2 VDC 1.25 VDC 1.44 VDC 1.5 VDC 1.6 VDC 1.8 VDC 1.92 VDC 2 VDC 2.4 VDC 2.5 VDC 3 VDC 3.2 VDC 3.6 VDC 4 VDC 4.8 VDC 7.2 VDC 8 VDC	- 1 ms 10 ms 15 ms 2.5 ms 20 ms 25 ms 250 ms 3 ms 30 ms 4 ms 5 ms 50 ms 6 ms 7 ms 9 ms	- 1 ms 1.5 ms 10 ms 15 ms 2 ms 20 ms 250 ms 3 ms 30 ms 4 ms 5 ms 50 ms 7 ms 8 ms	- 280-ISO 280-ISO, Resistor 280-ISO, Resistor, Shrouded w/ Steel Bracket 280-ISO, Sealed - Epoxy Diode Diode, IP54 - Dust Protected, Water Resistant Diode, Magnetic Blowout Diode, MINI-ISO Diode, MINI-ISO w/ Plastic mounting bracket Diode, MINI-ISO w/ Plastic mounting bracket, Sealed - Epoxy Diode, MINI-ISO w/ Steel Mounting Bracket Diode, MINI-ISO w/ Steel Mounting Bracket, Sealed - Epoxy Diode, MINI-ISO, Sealed - Epoxy Diode, Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket Diode, Sealed - Flux Protection Diode, Sealed - Fully Diode, Sealed - Fully, Magnetic Blowout Diode, SUPER-ISO Diode, SUPER-ISO w/ Plastic Mounting Bracket Diode, SUPER-ISO, Sealed - Epoxy IP54 - Dust Protected, Water Resistant IP67 - Dust Tight, Waterproof Magnetic Blowout Magnetic Blowout, Resistor Magnetic Blowout, Resistor, Sealed - Fully Magnetic Blowout, Sealed - Fully MICRO-ISO MICRO-ISO, Resistor, Sealed - Epoxy MICRO-ISO, Sealed - Epoxy MINI-ISO MINI-ISO w/ Plastic mounting bracket MINI-ISO w/ Steel Mounting Bracket MINI-ISO w/ Steel Mounting Bracket, Resistor MINI-ISO w/ Steel Mounting Bracket, Sealed - Epoxy MINI-ISO, Resistor MINI-ISO, Resistor, Sealed - Epoxy MINI-ISO, Sealed - Epoxy MINI-ISO, Shrouded w/ Steel Bracket MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy Resistor Resistor, MINI-ISO w/ Plastic mounting bracket Resistor, MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy Resistor, Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket Resistor, Sealed - Epoxy, SUPER-ISO w/ Steel Mounting Bracket Resistor, Sealed - Flux Protection Resistor, Sealed - Fully Resistor, SUPER-ISO Resistor, SUPER-ISO, Sealed - Epoxy Sealed - Epoxy Sealed - Epoxy, SUPER-ISO Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket Sealed - Flux Protection Sealed - Fully SUPER-ISO SUPER-ISO w/ Plastic Mounting Bracket SUPER-ISO w/ Steel Mounting Bracket	- Chassis Mount Free Hanging Socketable Surface Mount Through Hole	- Connector Gull Wing PC Pin Plug In Plug In, Quick Connect - 0.110" (2.8mm) Plug In, Quick Connect - 0.187" (4.7mm) Plug In, Quick Connect - 0.250" (6.3mm) Plug In, Quick Connect - Multiple Sizes Quick Connect - 0.079" (2.0mm), Weld Terminal Quick Connect - 0.187"/0.250" Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250"/0.375" Quick Connect - Multiple Sizes Screw Terminal Screw Terminal, Quick Connect - 0.250" (6.3mm) Screw Terminal, Wire Leads Stud Stud, Wire Leads Wire Leads	- -25°C ~ 125°C -30°C ~ 100°C -30°C ~ 105°C -30°C ~ 80°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 110°C -40°C ~ 115°C -40°C ~ 120°C -40°C ~ 125°C -40°C ~ 135°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 125°C

全部重置

全部应用

结果

厂商型号	价格	数量	数据表	系列	包装	产品状态	线圈类型	线圈电流	线圈电压	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	动作时间	释放时间	特性	安装类型	端接样式	工作温度

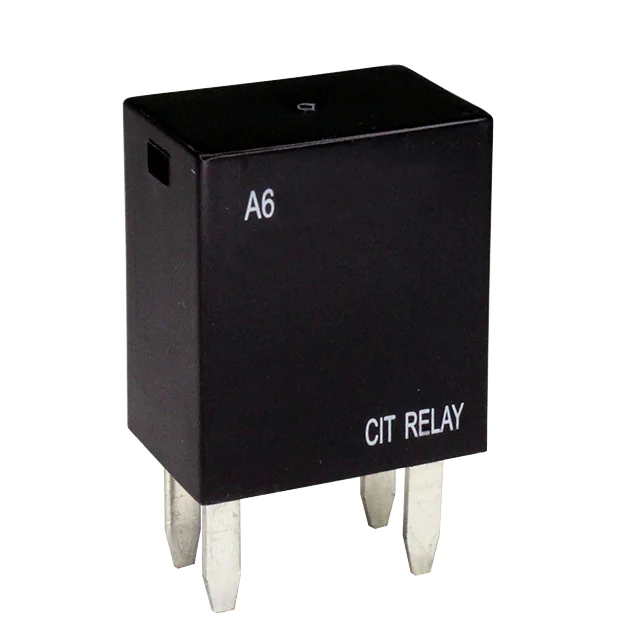

A61CC12VDC.9D RELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch	-	请求报价	数据表	A6	Tray	Active	Non Latching	75 mA	12VDC	SPDT (1 Form C)	30 A	75VDC - Max	8.4 VDC	1.2 VDC	5 ms	2 ms	Diode	Through Hole	PC Pin	-40°C ~ 85°C
A61CC12VDC.9R RELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch	-	请求报价	数据表	A6	Tray	Active	Non Latching	75 mA	12VDC	SPDT (1 Form C)	30 A	75VDC - Max	8.4 VDC	1.2 VDC	5 ms	2 ms	Resistor	Through Hole	PC Pin	-40°C ~ 85°C
A61CC12VDC1.3R RELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch	-	请求报价	数据表	A6	Tray	Active	Non Latching	110.1 mA	12VDC	SPDT (1 Form C)	30 A	75VDC - Max	8.4 VDC	1.2 VDC	5 ms	2 ms	Resistor	Through Hole	PC Pin	-40°C ~ 85°C
AZ987-1C-24DET RELAY AUTOMOTIVE SPDT 30A 24V American Zettler	-	请求报价	数据表	AZ987	Box	Active	Non Latching	-	24VDC	SPDT (1 Form C)	30 A	16VDC - Max	13.8 VDC	3 VDC	4 ms	2 ms	Sealed - Epoxy	Through Hole	PC Pin	-40°C ~ 105°C
AZ988-1AT-12DSEC1R RELAY AUTOMOTIVE SPST 30A 12V American Zettler	-	请求报价	数据表	AZ988	Box	Active	Non Latching	96.8 mA	12VDC	SPST-NO (1 Form A)	30 A	27VDC - Max	7.2 VDC	1.2 VDC	10 ms	10 ms	MICRO-ISO, Resistor, Sealed - Epoxy	Socketable	Plug In, Quick Connect - Multiple Sizes	-40°C ~ 125°C
A61CC24VDC.9 RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch	-	请求报价	数据表	A6	Tray	Active	Non Latching	37.5 mA	24VDC	SPDT (1 Form C)	30 A	75VDC - Max	16.8 VDC	2.4 VDC	5 ms	2 ms	-	Through Hole	PC Pin	-40°C ~ 85°C
A61CC24VDC1.3 RELAY AUTOMOTVIE SPDT 30A 24V CIT Relay and Switch	-	请求报价	数据表	A6	Tray	Active	Non Latching	55 mA	24VDC	SPDT (1 Form C)	30 A	75VDC - Max	16.8 VDC	2.4 VDC	5 ms	2 ms	-	Through Hole	PC Pin	-40°C ~ 85°C
A3F1ACQ12VDC1 RELAY AUTOMOTIVE SPST 60A 12V CIT Relay and Switch	-	请求报价	数据表	A3	Tray	Active	Non Latching	150 mA	12VDC	SPST-NO (1 Form A)	60 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	-	Chassis Mount	Quick Connect - Multiple Sizes	-40°C ~ 125°C
A31ACQ12VDC1 RELAY AUTOMOTIVE SPST 60A 12V CIT Relay and Switch	-	请求报价	数据表	A3	Tray	Active	Non Latching	150 mA	12VDC	SPST-NO (1 Form A)	60 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	-	Socketable	Quick Connect - Multiple Sizes	-40°C ~ 125°C
AZ9841-1C-24D RELAY AUTOMOTIVE SPDT 40A 24V American Zettler	-	请求报价	数据表	AZ9841	Box	Active	Non Latching	55 mA	24VDC	SPDT (1 Form C)	40 A	75VDC - Max	14.4 VDC	2.4 VDC	5 ms	2 ms	280-ISO	Socketable	Plug In, Quick Connect - 0.110" (2.8mm)	-40°C ~ 125°C
A102AS12VDC RELAY AUTOMOTIVE DPST 30A 12V CIT Relay and Switch	-	请求报价	数据表	A10	Tube	Active	Non Latching	47.2 mA	12VDC	DPST-NO (2 Form A)	30 A	28VDC - Max	8.4 VDC	1.2 VDC	4 ms	1.5 ms	Sealed - Fully	Through Hole	PC Pin	-40°C ~ 105°C
AZ9701-1A-12DT RELAY AUTOMOTIVE SPST 45A 12V American Zettler	-	请求报价	数据表	AZ9701	Box	Active	Non Latching	133.3 mA	12VDC	SPST-NO (1 Form A)	45 A	150VDC - Max	6.8 VDC	0.7 VDC	5 ms	3 ms	-	Through Hole	PC Pin	-40°C ~ 125°C
A3F1ACQ12VDC1R RELAY AUTOMOTIVE SPST 60A 12V CIT Relay and Switch	-	请求报价	数据表	A3	Tray	Active	Non Latching	150 mA	12VDC	SPST-NO (1 Form A)	60 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	Resistor	Chassis Mount	Quick Connect - Multiple Sizes	-40°C ~ 125°C
A3F1ACQ12VDC1D RELAY AUTOMOTIVE SPST 60A 12V CIT Relay and Switch	-	请求报价	数据表	A3	Tray	Active	Non Latching	150 mA	12VDC	SPST-NO (1 Form A)	60 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	Diode	Chassis Mount	Quick Connect - Multiple Sizes	-40°C ~ 125°C
A31ACQ12VDC1R RELAY AUTOMOTIVE SPST 60A 12V CIT Relay and Switch	-	请求报价	数据表	A3	Tray	Active	Non Latching	150 mA	12VDC	SPST-NO (1 Form A)	60 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	Resistor	Socketable	Quick Connect - Multiple Sizes	-40°C ~ 125°C
A31ACQ12VDC1D RELAY AUTOMOTIVE SPST 60A 12V CIT Relay and Switch	-	请求报价	数据表	A3	Tray	Active	Non Latching	150 mA	12VDC	SPST-NO (1 Form A)	60 A	75VDC - Max	8.4 VDC	1.2 VDC	7 ms	5 ms	Diode	Socketable	Quick Connect - Multiple Sizes	-40°C ~ 125°C
PC785-1C-12S-D-X RELAY AUTOMOTIVE SPDT 35A 12V Picker Components	-	请求报价	数据表	-	Tube	Active	Non Latching	110 mA	12VDC	SPDT (1 Form C)	-	75VDC - Max	7.2 VDC	1.2 VDC	5 ms	2 ms	Diode, Sealed - Fully	Socketable	Plug In	-40°C ~ 125°C
A61CC24VDC.9R RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch	-	请求报价	数据表	A6	Tray	Active	Non Latching	37.5 mA	24VDC	SPDT (1 Form C)	30 A	75VDC - Max	16.8 VDC	2.4 VDC	5 ms	2 ms	Resistor	Through Hole	PC Pin	-40°C ~ 85°C
A61CC24VDC.9D RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch	-	请求报价	数据表	A6	Tray	Active	Non Latching	37.5 mA	24VDC	SPDT (1 Form C)	30 A	75VDC - Max	16.8 VDC	2.4 VDC	5 ms	2 ms	Diode	Through Hole	PC Pin	-40°C ~ 85°C
A61CC24VDC1.3D RELAY AUTOMOTVIE SPDT 30A 24V CIT Relay and Switch	-	请求报价	数据表	A6	Tray	Active	Non Latching	55 mA	24VDC	SPDT (1 Form C)	30 A	75VDC - Max	16.8 VDC	2.4 VDC	5 ms	2 ms	Diode	Through Hole	PC Pin	-40°C ~ 85°C

共1882条记录«上一页 1... 54 55 56 575859 60 61...95 下一页»
