箱体
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BC-ATP-112110BOX ABS CLEAR 8.27"L X 4.33"W |
26 | - |
|
数据表 |
P | Bulk | Active | Box | 8.268" L x 4.331" W (210.00mm x 110.00mm) | 3.937" (100.00mm) | 35.8in² (231cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
1590WBBSFLBKENCLOSURE ALUM 4.7"L X 3.7"W |
0 | - |
|
数据表 |
1590-RIBBED | Bulk | Active | Enclosure | 4.700" L x 3.700" W (119.38mm x 93.98mm) | 1.570" (39.88mm) | 17.3in² (112cm²) | Cover Included | Aluminum | Black | 0.079" (2.00mm) | - | IP65 | - |
|
MB70-T-01SWITCH BOX ALUM 3.39"L X 2.76"W |
47 | - |
|
数据表 |
MB | Bulk | Active | Switch Box | 3.386" L x 2.756" W (86.00mm x 70.00mm) | 2.756" (70.00mm) | 9.30in² (60.0cm²) | Cover Included, Slanted Top | Metal, Aluminum; Plastic | Silver | - | Pushbutton Holes - 1 | - | - |
|

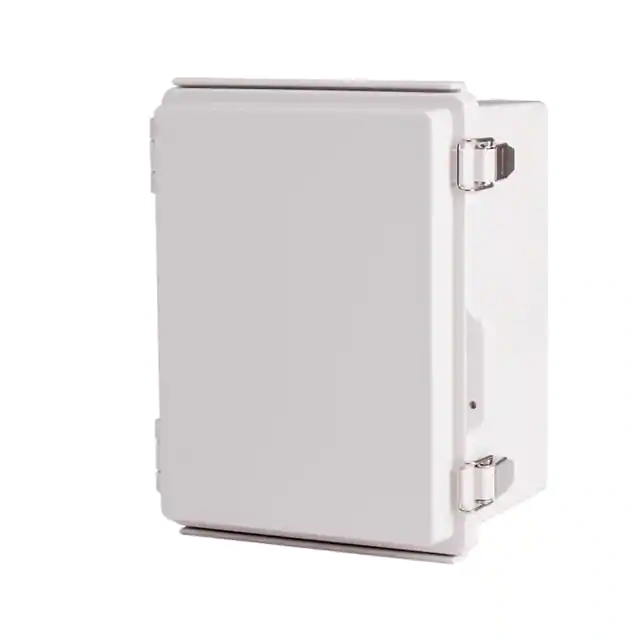

BC-AGP-162113BOX ABS LGT GRY 8.27"L X 6.3"W |
22 | - |
|
数据表 |
P | Bulk | Active | Box | 8.268" L x 6.299" W (210.00mm x 160.00mm) | 5.118" (130.00mm) | 52.1in² (336cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-CGS-082508BOX PLAS LGT GRY 9.84"L X 3.15"W |
11 | - |
|
数据表 |
S | Bulk | Active | Box | 9.843" L x 3.150" W (250.00mm x 80.00mm) | 3.346" (85.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
|
1590WSTPCENCLOSURE ALUM |
0 | - |
|
数据表 |
1590 | Bulk | Active | Enclosure | - | 1.543" (39.19mm) | 27.3in² (176cm²) | Cover Included | Aluminum | - | - | - | - | - |
|
BC-CTS-121707BOX PLASTIC CLR 6.89"L X 4.92"W |
12 | - |
|
数据表 |
S | Bulk | Active | Box | 6.890" L x 4.921" W (175.00mm x 125.00mm) | 2.953" (75.00mm) | 33.9in² (219cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-AGS-202013BOX ABS LGT GRY 7.87"L X 7.87"W |
9 | - |
|
数据表 |
S | Bulk | Active | Box | 7.874" L x 7.874" W (200.00mm x 200.00mm) | 5.118" (130.00mm) | 62.0in² (400cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-ATS-152510BOX ABS CLEAR 9.84"L X 5.91"W |
7 | - |
|
数据表 |
S | Bulk | Active | Box | 9.843" L x 5.906" W (250.00mm x 150.00mm) | 3.937" (100.00mm) | 58.1in² (375cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
|
1590WTRPBBKENCLOSURE ALUM 4.41"L X 3.11"W |
0 | - |
|
数据表 |
1590 | Bulk | Active | Enclosure | 4.409" L x 3.109" W (111.99mm x 78.97mm) | 1.543" (39.19mm) | 13.6in² (88cm²) | Cover Included | Aluminum | - | - | - | - | - |
|
BC-ATP-112607BOX ABS CLEAR 10.24"L X 4.33"W |
25 | - |
|
数据表 |
P | Bulk | Active | Box | 10.236" L x 4.331" W (260.00mm x 110.00mm) | 2.953" (75.00mm) | 44.3in² (286cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-AGS-152513BOX ABS LGT GRY 9.84"L X 5.91"W |
21 | - |
|
数据表 |
S | Bulk | Active | Box | 9.843" L x 5.906" W (250.00mm x 150.00mm) | 5.118" (130.00mm) | 58.1in² (375cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
|
1590BB2FENCLOSURE ALUM 4.7"L X 3.7"W |
0 | - |
|
数据表 |
1590-RIBBED | Bulk | Active | Enclosure | 4.700" L x 3.700" W (119.38mm x 93.98mm) | 1.490" (37.85mm) | 17.3in² (112cm²) | Cover Included | Aluminum | - | 0.079" (2.00mm) | - | IP65 | - |
|
BC-CTS-161607BOX PLASTIC CLEAR 6.3"L X 6.3"W |
8 | - |
|
数据表 |
S | Bulk | Active | Box | 6.299" L x 6.299" W (160.00mm x 160.00mm) | 2.756" (70.00mm) | 39.7in² (256cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

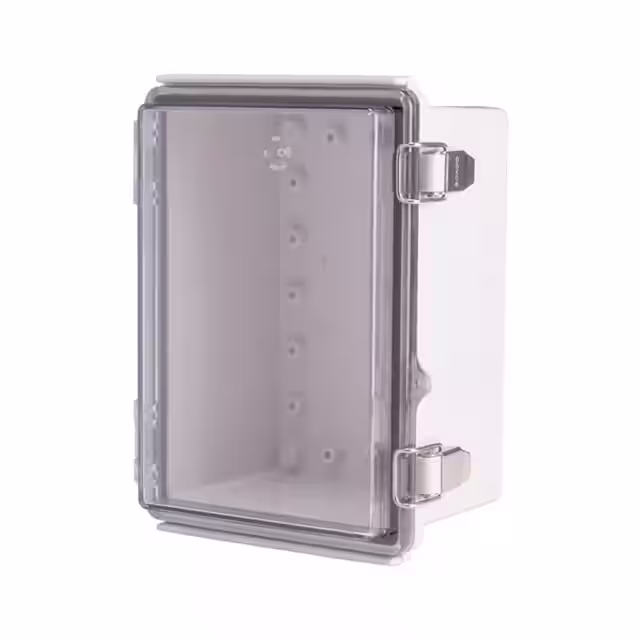

BC-ATP-131810BOX ABS CLEAR 7.28"L X 5.32"W |
17 | - |
|
数据表 |
P | Bulk | Active | Box | 7.283" L x 5.315" W (185.00mm x 135.00mm) | 3.937" (100.00mm) | 38.7in² (250cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
|
BC-AGP-172210BOX ABS GRAY 8.661"L X 6.693"W |
15 | - |
|
数据表 |
P | Bulk | Active | Box | 8.661" L x 6.693" W (220.00mm x 170.00mm) | 4.134" (105.00mm) | 58.0in² (374cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
RP1180CBOX PC WHT 6.47"L X 3.39"W |
0 | - |
|
数据表 |
RP | Bag | Active | Box | 6.470" L x 3.390" W (164.34mm x 86.11mm) | 3.350" (85.09mm) | 22.0in² (142cm²) | Cover Included | Polycarbonate | White, Off, Clear Cover/Door | 0.080" (2.03mm) | - | - | UL94 V-2 |
|
BC-AGS-212310BOX ABS LGT GRY 9.06"L X 8.27"W |
31 | - |
|
数据表 |
S | Bulk | Active | Box | 9.055" L x 8.268" W (230.00mm x 210.00mm) | 3.937" (100.00mm) | 74.9in² (483cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

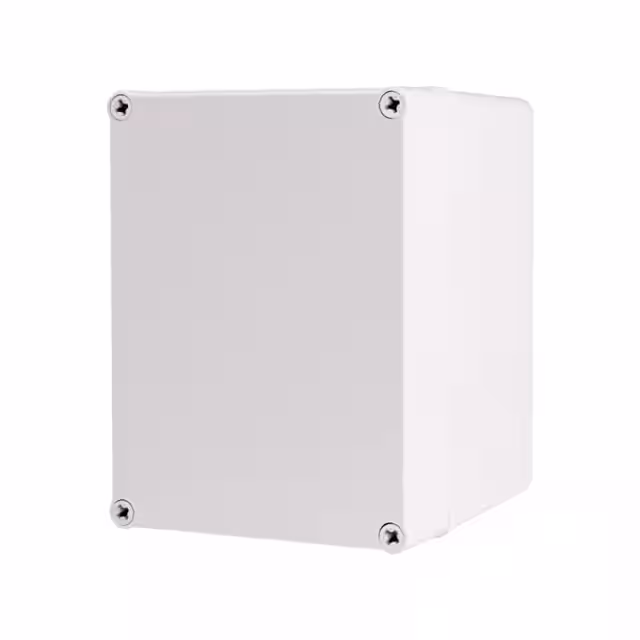

BC-AGS-152016BOX ABS LGT GRY 7.87"L X 5.91"W |
71 | - |
|
数据表 |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 6.299" (160.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-ATP-151512BOX ABS CLEAR 5.91"L X 5.91"W |
30 | - |
|
数据表 |
P | Bulk | Active | Box | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 4.724" (120.00mm) | 34.9in² (225cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
