蜂鸣器元件、压电弯片
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 频率 | 电压 - 输入（最大） | 类型 | 阻抗 | 电容 @ 频率 | 工作温度 | 尺寸 / 尺寸 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P35029-1BUZZER ELEMENT STD 8KHZ 10.50MM |
0 | - |
|
数据表 |
- | Bulk | Active | 2.9 kHz | 30V p-p | Standard | - | 30000pF @ 1kHz | -20°C ~ 60°C | 1.378" Dia (35.00mm) | None |
|

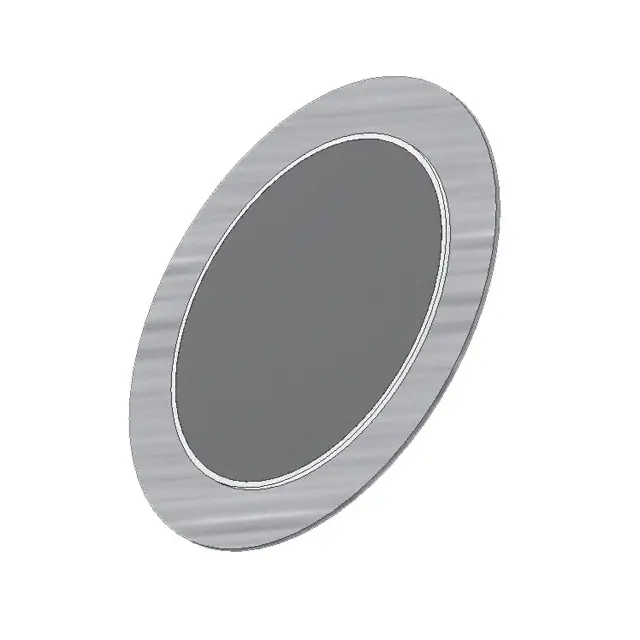

AB2022ABUZZER ELEMENT STD 2.2KHZ 20MM |
14 | - |
|
数据表 |
AB | Bulk | Obsolete | 2.2 kHz | 30V p-p | Standard | 500 Ohms | 80000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | None |
|
RPE-2.200-5004-NS2BUZZER ELEMENT STD 2.2 KHZ 50MM |
0 | - |
|
数据表 |
- | Tray | Discontinued at Digi-Key | 2.2 kHz | 30V p-p | Standard | 300 Ohms | 30000pF @ 100Hz | -20°C ~ 60°C | 1.969" Dia (50.00mm) | Wire Leads |
|
P20039-1BUZZER ELEMENT FDBK 4.2KHZ 27MM |
0 | - |
|
数据表 |
- | Bulk | Active | 3.9 kHz | 30V p-p | Feedback | - | 25000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | None |
|

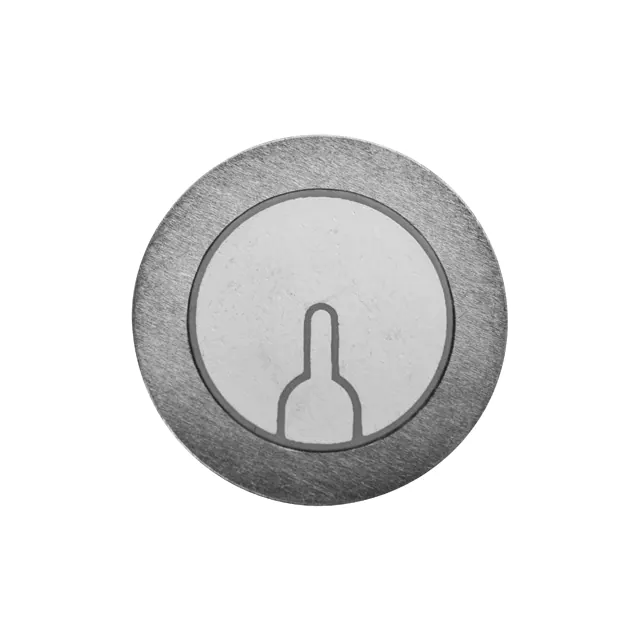

P27030-1BUZZER ELEMENT FDBK 3.6KHZ 20MM |
0 | - |
|
数据表 |
- | Bulk | Active | 3 kHz | 30V p-p | Feedback | - | 30000pF @ 1kHz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | None |
|
P50010-1BUZZER ELEMENT STD 2.8KHZ 35MM |
0 | - |
|
数据表 |
- | Bulk | Active | 1 kHz | 30V p-p | Standard | - | 50000pF @ 1kHz | -20°C ~ 60°C | 1.969" Dia (50.00mm) | None |
|
P31029-1BUZZER ELEMENT STD 2.9KHZ 31MM |
0 | - |
|
数据表 |
- | Bulk | Active | 2.9 kHz | 30V p-p | Standard | - | 23000pF @ 1kHz | -20°C ~ 70°C | 1.220" Dia (31.00mm) | None |
|

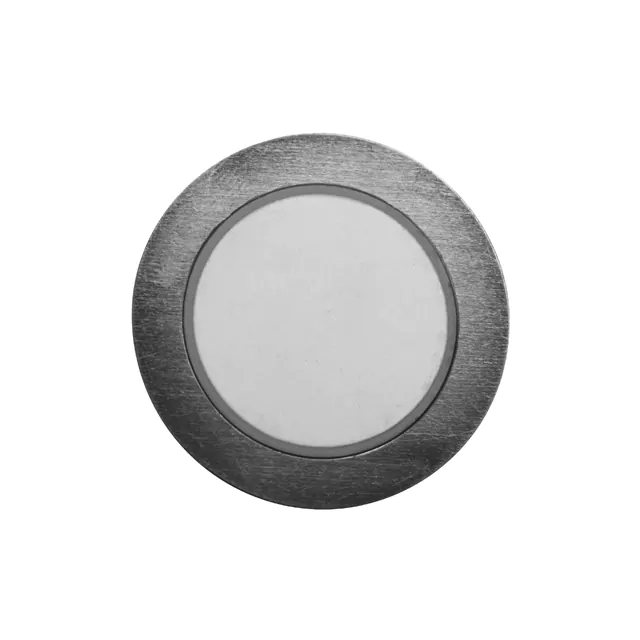

P35028-1BUZZER ELEMENT STD 3.3KHZ 27MM |
0 | - |
|
数据表 |
- | Bulk | Active | 2.8 kHz | 30V p-p | Standard | - | 40000pF @ 1kHz | -20°C ~ 60°C | 1.378" Dia (35.00mm) | None |
|
|
AB2725S-LW46-RBUZZER ELEMENT STD 2.5KHZ 27MM |
0 | - |
|
- |
AB | Bulk | Active | 2.5 kHz | 20V p-p | Standard | 500 Ohms | 45000pF @ 1kHz | -20°C ~ 60°C | 1.063" Dia (27.00mm) | None |
|
|
AB2025B-LWC30-RBUZZER ELEMENT STD 2.5KHZ 20MM |
0 | - |
|
数据表 |
AB | Bulk | Active | 2.5 kHz | 30V p-p | Standard | 500 Ohms | 80000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | Wire Leads |
|

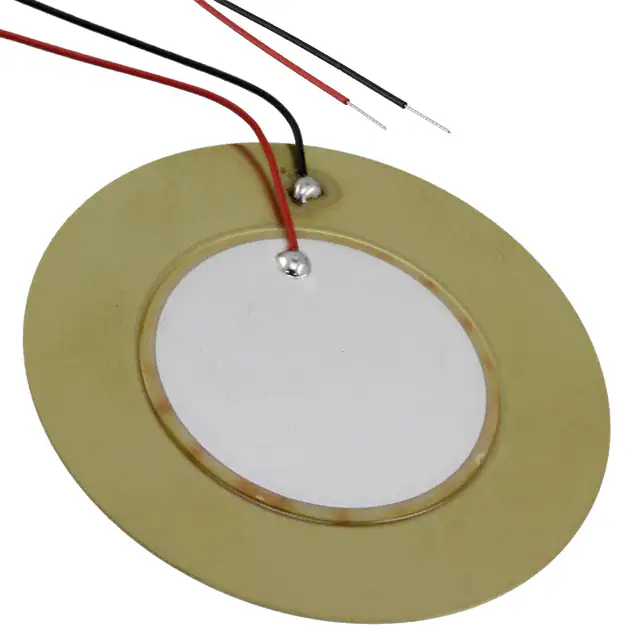

7BB-41-2L0BUZZER ELEMENT STD 2.2KHZ 41MM |
0 | - |
|
- |
7BB | Bulk | Obsolete | 2.2 kHz | - | Standard | 300 Ohms | 30000pF @ 1kHz | - | 1.614" Dia (41.00mm) | Wire Leads |
|
|
SEN-10293BUZZER ELEMENT STD 6.3KHZ 20MM |
0 | - |
|
- |
- | Bulk | Active | 6.3 kHz | - | Standard | 1 kOhms | 10000pF @ 1kHz | - | 0.787" Dia (20.00mm) | Wire Leads |
|
P20071-1BUZZER ELEMENT FDBK 3.9KHZ 20MM |
0 | - |
|
数据表 |
- | Bulk | Active | 7.1 kHz | 30V p-p | Standard | - | 13000pF @ 1kHz | -20°C ~ 60°C | 0.787" Dia (20.00mm) | None |
|
P27033-1BUZZER ELEMENT STD 1.5KHZ 41MM |
0 | - |
|
数据表 |
- | Bulk | Active | 3.3 kHz | 30V p-p | Standard | - | - | -20°C ~ 60°C | 1.063" Dia (27.00mm) | None |
|
P50011-1BUZZER ELEMENT STD 1KHZ 50MM |
0 | - |
|
数据表 |
- | Bulk | Active | 1.1 kHz | 30V p-p | Standard | - | - | -20°C ~ 60°C | 1.969" Dia (50.00mm) | None |
|
|
AB2734B-LWT80-RBUZZER ELEMENT CERAMIC BENDER |
0 | - |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - |
|
|
KBS-13DA-12ABUZZER ELEMENT STD 6.6KHZ 20MM |
0 | - |
|
数据表 |
KBS, Kyocera | Bulk | Obsolete | 12 kHz | - | Standard | 700 Ohms | 5000pF @ 1kHz | - | 0.512" Dia (13.00mm) | None |
|
|
KBS-15DA-9A-2BUZZER ELEMENT STD 6.6KHZ 20MM |
0 | - |
|
数据表 |
KBS, Kyocera | Bulk | Obsolete | 10.5 kHz | - | Standard | 600 Ohms | 8000pF @ 1kHz | - | 0.591" Dia (15.00mm) | None |
|
|
KBS-15DA-9C-31BUZZER ELEMENT FDBK 4.6KHZ 27MM |
0 | - |
|
数据表 |
KBS, Kyocera | Bulk | Obsolete | 10.5 kHz | - | Standard | 600 Ohms | 8000pF @ 1kHz | - | 0.591" Dia (15.00mm) | Wire Leads |
|
|
KBS-20DA-7ABUZZER ELEMENT STD 4.6KHZ 27MM |
0 | - |
|
数据表 |
KBS, Kyocera | Bulk | Obsolete | 6.6 kHz | - | Standard | 300 Ohms | 10000pF @ 1kHz | - | 0.787" Dia (20.00mm) | None |
