首页 > 产品 > 开关 > DIP 开关

DIP 开关

制造商	系列	包装	产品状态	电路	位置数量	电流额定值（安培）	电压额定值	执行器类型	执行器水平	触点材料	触点表面处理	板上高度	安装类型	端接样式	间距	可清洗	特性	工作温度
APEM Inc. Bourns Inc. C&K CIT Relay and Switch CTS Electrocomponents E-Switch GC Electronics Grayhill Inc. KaiFeng Electronics knitter-switch Nidec Components NKK Switches Omron Automation and Safety Omron Electronics Inc-EMC Div PTR HARTMANN Same Sky (Formerly CUI Devices) SparkFun Electronics TE Connectivity TE Connectivity ALCOSWITCH Switches TE Connectivity AMP Connectors Würth Elektronik	* - 193 194 195 204 206 206RA 208 208RA 209 210 218 219 219G 220 221 7000 7100 76 7600 76HP 78 7813 7814 7829 78C 78H 79A 79B 79C 90B 90GB 90HB 90HGB 94H 94R 97 A6A A6C A6D A6DR A6E A6E-N A6ER A6FR A6H A6HF A6HR A6K A6KS A6R A6RS A6RV A6S A6S-H A6SN A6SR A6T A6TN A6TR ADE ADF ADP ADPA AMP ARE ARF ARP ATT BD BDB BP BPA CAS CD CES CFP CFS CHP CHS CJS CMS CRD CRE CS-32 CS-4 CS-7 CVS DA DBP DBS DH DHN DHP 600 DHS DIP DIP-FIX DM DMR DP DPL DPU DR DR75 DRD DRR DRS DS DS01-254 DS02-254 DS03-254 DS04-254 DS04-254-SMT DS05-127-SMT DSR DSS DTS EDS EDSP FD01 FD02 FR01 FR02 GDB GDH GDHL GDP GDR GDS IKD IKE IKH IKN JS KAC KAD KAE KAG KAJ KAN KAP KAR KAS KAT KAW KC1901 KE KG KJ KP KR KT LDN LDNA MDG MGDH MPG MRD MRSS ND ND3 NDA NDI NDP NDPL NDS NHDS P25 P36 P36S P36SMJ P36SMT P36THR P56 P60A P60AS P65 P65SMT P65THR PI PT65 RD07 RD10 RDM RDS-1045 RDS-1045-SMT RDS-1055 RDS-1055-SMT RDS-7229-ASMT RDS-7229-CR RDS-7229-D RDS-7229-JSMT RDS-7229-SMT RDS-74365 RDS-74365-45A RDS-74385-45A-SMT RDS-74385-SMT RDS-74R-254 RDS-74R-508 RDS-74R45A-254 RDS-74R45A-508 RDS1-1065-D-67 RDS1-1065-SMT-67 RDS2-1012-RA-67 RDS3-1012-RA RDS3-1065-D RDS3-1065-SMT RDS4-1012-RA-67 RDS4-1065-D-67 RDS4-1065-SMT-67 RDS5-1011-RA-67 RDS5-1065-D-67 RDS5-1065-SMT-67 RDS6-1011-RA RDS6-1065-D RDS6-1065-SMT RDS7-1011-RA-67 RDS7-1065-D-67 RDS7-1065-SMT-67 RDT RM RRD RTE RTF RW, COMAX S-1000 S-1000A S-2000A S-2050 S-4000 S-7000 S-8000 SA-5000 SA-7000 SBP SBS SC SC-2000 SD SD-1000 SD-2000 SDA SDB SH-7000 SLV SMR SMS SP SPA SRJ SRK SRM SS-10 SSH SSV STR STV TDA TDD TDP TDS WS-DISU WS-DISV WS-DITU WS-DITV WS-ROSV WS-ROTU WS-ROTV	- Bag Box Bulk Cut Tape (CT) Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Last Time Buy Obsolete	- 10PST 3PST 4PST 4PST-2NO/2NC BCD BCD Complement BCD with Complement DP3T DPDT DPST DPST-NO/NC Gray Code Hexadecimal Hexadecimal Complement Hexadecimal with Complement Octal Octal Complement Programmable SP10T SP3T SP4T SP5T SP6T SP8T SP9T SPDT SPST	- 1 10 11 12 14 16 2 24 25 3 4 5 6 64 7 8 9	- 0.4VA 100mA 10mA 125mA 150mA 200mA 25mA 30mA 50mA 60mA	- 15VDC 16VAC/DC 16VDC 2.4VDC 20VAC/DC 20VDC 24VDC 25VDC 28VDC 30VDC 42VAC 42VAC/DC 42VDC 50VDC 5VDC 6VDC	- Breakable (Shunt) Flush Piano Rocker Rotary for Tool Rotary with Knob Rotary with Shaft Slide (Standard) Standard Toggle	- Flush Flush, Recessed Raised	- Beryllium Copper Brass Bronze Copper Copper Alloy Glass Fabric Epoxy Resin Nickel Phosphor Bronze Stainless Steel	- Gold Gold Alloy Silver Tin	- 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.062" (1.57mm) 0.063" (1.60mm) 0.064" (1.63mm) 0.067" (1.70mm) 0.079" (2.00mm) 0.081" (2.05mm) 0.083" (2.10mm) 0.087" (2.20mm) 0.089" (2.25mm) 0.091" (2.30mm) 0.091" (2.31mm) 0.093" (2.35mm) 0.094" (2.40mm) 0.098" (2.50mm) 0.100" (2.54mm) 0.102" (2.60mm) 0.104" (2.65mm) 0.106" (2.70mm) 0.110" (2.80mm) 0.112" (2.85mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.119" (3.02mm) 0.120" (3.05mm) 0.122" (3.10mm) 0.123" (3.12mm) 0.125" (3.17mm) 0.126" (3.20mm) 0.130" (3.30mm) 0.134" (3.40mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.140" (3.55mm) 0.141" (3.58mm) 0.142" (3.60mm) 0.143" (3.63mm) 0.144" (3.65mm) 0.144" (3.66mm) 0.146" (3.70mm) 0.148" (3.75mm) 0.149" (3.78mm) 0.150" (3.80mm) 0.150" (3.81mm) 0.151" (3.84mm) 0.152" (3.85mm) 0.154" (3.90mm) 0.155" (3.94mm) 0.157" (4.00mm) 0.159" (4.05mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.162" (4.11mm) 0.163" (4.15mm) 0.164" (4.17mm) 0.165" (4.20mm) 0.166" (4.21mm) 0.167" (4.25mm) 0.168" (4.27mm) 0.169" (4.30mm) 0.170" (4.33mm) 0.173" (4.40mm) 0.174" (4.41mm) 0.175" (4.45mm) 0.176" (4.47mm) 0.177" (4.50mm) 0.178" (4.52mm) 0.179" (4.55mm) 0.180" (4.57mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.184" (4.67mm) 0.185" (4.70mm) 0.189" (4.80mm) 0.190" (4.83mm) 0.195" (4.95mm) 0.196" (4.99mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.203" (5.15mm) 0.204" (5.18mm) 0.205" (5.20mm) 0.209" (5.30mm) 0.210" (5.33mm) 0.211" (5.35mm) 0.213" (5.40mm) 0.214" (5.45mm) 0.215" (5.45mm) 0.215" (5.46mm) 0.217" (5.50mm) 0.219" (5.55mm) 0.220" (5.59mm) 0.222" (5.64mm) 0.224" (5.70mm) 0.225" (5.72mm) 0.226" (5.74mm) 0.228" (5.80mm) 0.230" (5.85mm) 0.232" (5.90mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.246" (6.25mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.258" (6.55mm) 0.260" (6.60mm) 0.262" (6.66mm) 0.264" (6.70mm) 0.265" (6.73mm) 0.267" (6.78mm) 0.268" (6.80mm) 0.268" (6.81mm) 0.270" (6.85mm) 0.271" (6.88mm) 0.272" (6.90mm) 0.273" (6.93mm) 0.274" (6.95mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.277" (7.05mm) 0.278" (7.06mm) 0.280" (7.10mm) 0.283" (7.20mm) 0.284" (7.21mm) 0.287" (7.30mm) 0.290" (7.37mm) 0.291" (7.39mm) 0.291" (7.40mm) 0.292" (7.41mm) 0.293" (7.45mm) 0.294" (7.47mm) 0.295" (7.50mm) 0.297" (7.54mm) 0.298" (7.57mm) 0.299" (7.60mm) 0.301" (7.65mm) 0.303" (7.70mm) 0.305" (7.75mm) 0.307" (7.80mm) 0.308" (7.82mm) 0.309" (7.85mm) 0.311" (7.90mm) 0.312" (7.92mm) 0.315" (8.00mm) 0.316" (8.03mm) 0.317" (8.05mm) 0.319" (8.10mm) 0.321" (8.15mm) 0.322" (8.18mm) 0.327" (8.30mm) 0.329" (8.35mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.334" (8.48mm) 0.335" (8.50mm) 0.337" (8.56mm) 0.340" (8.64mm) 0.343" (8.70mm) 0.344" (8.75mm) 0.346" (8.80mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.359" (9.12mm) 0.360" (9.14mm) 0.362" (9.20mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.378" (9.60mm) 0.380" (9.64mm) 0.381" (9.68mm) 0.385" (9.78mm) 0.386" (9.80mm) 0.390" (9.90mm) 0.393" (9.98mm) 0.394" (10.00mm) 0.394" (10.01mm) 0.395" (10.02mm) 0.398" (10.10mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.406" (10.30mm) 0.409" (10.39mm) 0.413" (10.50mm) 0.414" (10.51mm) 0.417" (10.60mm) 0.420" (10.67mm) 0.425" (10.80mm) 0.426" (10.82mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.434" (11.02mm) 0.437" (11.10mm) 0.460" (11.68mm) 0.463" (11.75mm) 0.464" (11.79mm) 0.465" (11.80mm) 0.467" (11.86mm) 0.469" (11.90mm) 0.470" (11.94mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.495" (12.57mm) 0.508" (12.91mm) 0.520" (13.20mm) 0.531" (13.49mm) 0.535" (13.59mm) 0.543" (13.80mm) 0.555" (14.10mm) 0.618" (15.70mm) 0.626" (15.90mm) 0.634" (16.10mm) 0.638" (16.20mm) 1.104" (28.05mm) 1.476" (37.50mm)	- Panel Mount Panel Mount, Right Angle Surface Mount Surface Mount, Right Angle Through Hole Through Hole, Reverse Through Hole, Right Angle	- Gull Wing J Lead PC Pin	- 0.039" (1.00mm) 0.042" (1.08mm) 0.050" (1.27mm), Half 0.051" (1.30mm) 0.083" (2.10mm) 0.100" (2.54mm) 0.100" (2.54mm), Full 0.200" (5.08mm)	- No Yes	- Epoxy Sealed Terminals Epoxy Sealed Terminals, Tape Seal IP64 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof Position Identification Line Position Identification Line, Tape Seal Process Sealed Sealed Sealed - Flux Protection Tape Seal	- -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 85°C -20°C ~ 60°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 85°C -25°C ~ 95°C -30°C ~ 60°C -30°C ~ 80°C -30°C ~ 85°C -30°C ~ 90°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 80°C -40°C ~ 85°C -50°C ~ 125°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 85°C -60°C ~ 125°C

全部重置

全部应用

结果

厂商型号	价格	数量	数据表	系列	包装	产品状态	电路	位置数量	电流额定值（安培）	电压额定值	执行器类型	执行器水平	触点材料	触点表面处理	板上高度	安装类型	端接样式	间距	可清洗	特性	工作温度
90HGBW05PT SWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc.	-	请求报价	-	90HGB	Tube	Obsolete	SPST	5	10mA	30VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.190" (4.83mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
90HGBW06PT SWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc.	-	请求报价	-	90HGB	Tube	Obsolete	SPST	6	10mA	30VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.190" (4.83mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
90HGBW06T SWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc.	-	请求报价	-	90HGB	Tube	Obsolete	SPST	6	10mA	30VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.190" (4.83mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C
90HGBW08PT SWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc.	-	请求报价	-	90HGB	Tube	Obsolete	SPST	8	10mA	30VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.190" (4.83mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
90HGBW10PT SWITCH SLIDE DIP SPST 0.01A 30V Grayhill Inc.	-	请求报价	-	90HGB	Tube	Obsolete	SPST	10	10mA	30VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.190" (4.83mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
SRK-10 SWITCH ROTARY DIP BCD 0.1A 5V E-Switch	-	请求报价	数据表	SRK	Tube	Active	BCD	10	100mA	5VDC	Rotary for Tool	Flush, Recessed	Glass Fabric Epoxy Resin	Gold	0.256" (6.50mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	-	-10°C ~ 60°C
RW-108-NS RT SWITCH ROTARY DIP SP8T 0.1A 16V C&K	-	请求报价	数据表	RW, COMAX	Tape & Reel (TR)	Discontinued at Digi-Key	SP8T	8	100mA	16VDC	Rotary for Tool	Raised	-	-	0.165" (4.20mm)	Surface Mount	Gull Wing	0.083" (2.10mm)	No	-	-20°C ~ 70°C

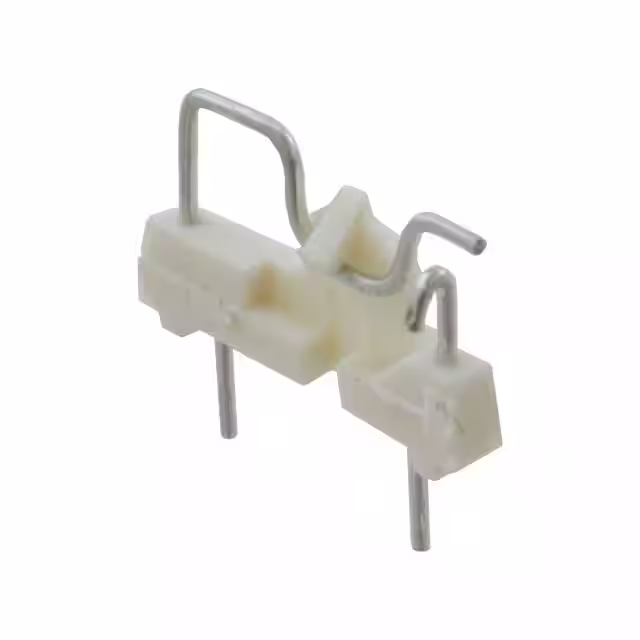

1393546-1 SWITCH DIP SPST TH TE Connectivity ALCOSWITCH Switches	-	请求报价	数据表	DIP-FIX	Bulk	Obsolete	SPST	1	-	-	-	Raised	-	-	0.319" (8.10mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-
1-1825286-0 SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	-	请求报价	数据表	GDR	Tube	Active	SPST	10	25mA	24VDC	Rocker	Flush, Recessed	Copper Alloy	Gold	0.309" (7.85mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-30°C ~ 85°C
1825013-4 SW ROTARY DIP BCD COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches	-	请求报价	数据表	MRD	Tube	Obsolete	BCD Complement	10	0.4VA	20VAC/DC	Rotary for Tool	Flush, Recessed	Beryllium Copper	Gold	0.295" (7.50mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	No	Process Sealed	-30°C ~ 85°C
1977103-3 SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	-	请求报价	数据表	GDHL	Bulk	Active	SPST	4	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.059" (1.50mm)	Surface Mount	Gull Wing	0.050" (1.27mm), Half	Yes	Tape Seal	-30°C ~ 85°C

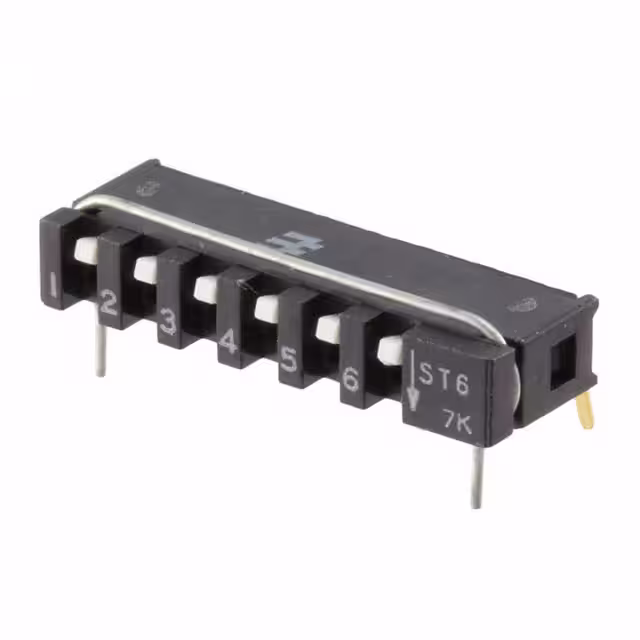

1977105-3 SWITCH SLIDE DIP SPST 0.01A 5V TE Connectivity ALCOSWITCH Switches	-	请求报价	数据表	STR	Tube	Active	SPST	6	10mA	5VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.244" (6.20mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	-	-30°C ~ 85°C

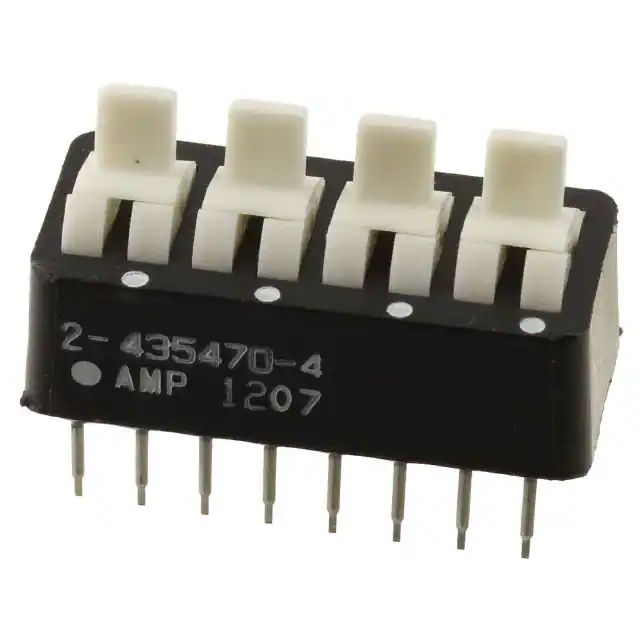

2-435470-4 SW TOGGLE DIP SPDT 0.025A 24V TE Connectivity ALCOSWITCH Switches	-	请求报价	数据表	7000	Tube	Obsolete	SPDT	4	25mA	24VDC	Toggle	Raised	Copper Alloy	Gold	0.460" (11.68mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-55°C ~ 105°C

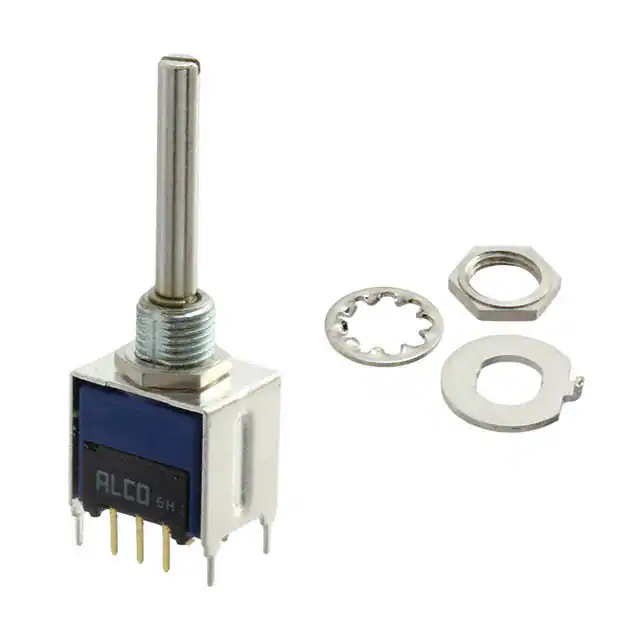

5-1825033-6 SW ROTARY DIP HEX COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches	-	请求报价	数据表	DR	Bulk	Obsolete	Hexadecimal Complement	16	0.4VA	20VAC/DC	Rotary with Shaft	Raised	Copper Alloy	Gold	1.476" (37.50mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-30°C ~ 85°C
1825059-4 SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	-	请求报价	数据表	ADF	Tape & Reel (TR)	Active	SPST	2	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.203" (5.15mm)	Surface Mount	J Lead	0.100" (2.54mm), Full	Yes	Tape Seal	-30°C ~ 85°C

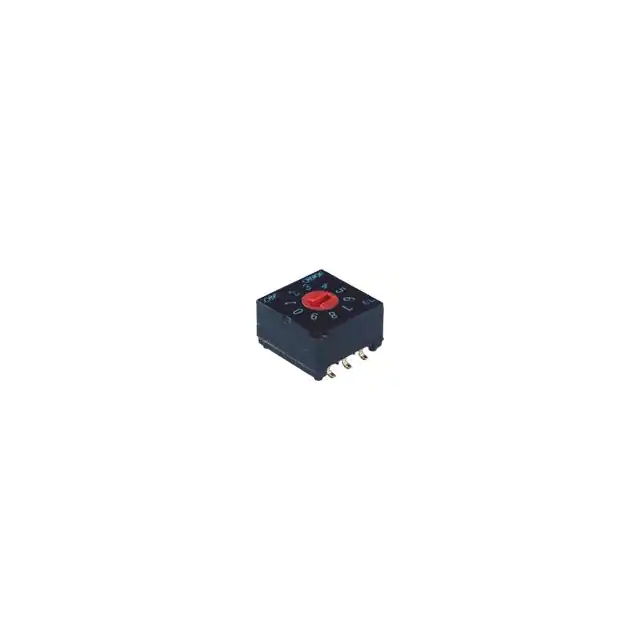

CRD10CL1CB SW ROTARY DIP BCD COMP 0.4VA 20V C&K	-	请求报价	数据表	CRD	Tray	Obsolete	BCD Complement	10	0.4VA	20VAC/DC	Rotary with Shaft	Raised	Beryllium Copper	Gold	0.543" (13.80mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Process Sealed	-20°C ~ 85°C
CRD10RL1AB SWITCH ROTARY DIP BCD 0.4VA 20V C&K	-	请求报价	数据表	CRD	Tray	Obsolete	BCD	10	0.4VA	20VAC/DC	Rotary with Shaft	Raised	Beryllium Copper	Gold	0.414" (10.51mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Process Sealed	-20°C ~ 85°C
CRD10RL1CB SWITCH ROTARY DIP BCD 0.4VA 20V C&K	-	请求报价	数据表	CRD	Tray	Obsolete	BCD	10	0.4VA	20VAC/DC	Rotary with Shaft	Raised	Beryllium Copper	Gold	0.543" (13.80mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Process Sealed	-20°C ~ 85°C
CRD10RW1AB SWITCH ROTARY DIP BCD 0.4VA 20V C&K	-	请求报价	数据表	CRD	Tray	Obsolete	BCD	10	0.4VA	20VAC/DC	Rotary with Knob	Raised	Beryllium Copper	Gold	0.414" (10.51mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Process Sealed	-20°C ~ 85°C
RTE0302G04 SWITCH ROTARY DIP SP3T 0.1A 30V C&K	-	请求报价	数据表	RTE	Bulk	Obsolete	SP3T	3	100mA	30VDC	Rotary with Shaft	Raised	Bronze	Gold	0.322" (8.18mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-25°C ~ 85°C

共8311条记录«上一页 1... 403 404 405 406407408 409 410...416 下一页»
