DIP 开关

制造商	系列	包装	产品状态	电路	位置数量	电流额定值（安培）	电压额定值	执行器类型	执行器水平	触点材料	触点表面处理	板上高度	安装类型	端接样式	间距	可清洗	特性	工作温度
APEM Inc. Bourns Inc. C&K CIT Relay and Switch CTS Electrocomponents E-Switch GC Electronics Grayhill Inc. KaiFeng Electronics knitter-switch Nidec Components NKK Switches Omron Automation and Safety Omron Electronics Inc-EMC Div PTR HARTMANN Same Sky (Formerly CUI Devices) SparkFun Electronics TE Connectivity TE Connectivity ALCOSWITCH Switches TE Connectivity AMP Connectors Würth Elektronik	* - 193 194 195 204 206 206RA 208 208RA 209 210 218 219 219G 220 221 7000 7100 76 7600 76HP 78 7813 7814 7829 78C 78H 79A 79B 79C 90B 90GB 90HB 90HGB 94H 94R 97 A6A A6C A6D A6DR A6E A6E-N A6ER A6FR A6H A6HF A6HR A6K A6KS A6R A6RS A6RV A6S A6S-H A6SN A6SR A6T A6TN A6TR ADE ADF ADP ADPA AMP ARE ARF ARP ATT BD BDB BP BPA CAS CD CES CFP CFS CHP CHS CJS CMS CRD CRE CS-32 CS-4 CS-7 CVS DA DBP DBS DH DHN DHP 600 DHS DIP DIP-FIX DM DMR DP DPL DPU DR DR75 DRD DRR DRS DS DS01-254 DS02-254 DS03-254 DS04-254 DS04-254-SMT DS05-127-SMT DSR DSS DTS EDS EDSP FD01 FD02 FR01 FR02 GDB GDH GDHL GDP GDR GDS IKD IKE IKH IKN JS KAC KAD KAE KAG KAJ KAN KAP KAR KAS KAT KAW KC1901 KE KG KJ KP KR KT LDN LDNA MDG MGDH MPG MRD MRSS ND ND3 NDA NDI NDP NDPL NDS NHDS P25 P36 P36S P36SMJ P36SMT P36THR P56 P60A P60AS P65 P65SMT P65THR PI PT65 RD07 RD10 RDM RDS-1045 RDS-1045-SMT RDS-1055 RDS-1055-SMT RDS-7229-ASMT RDS-7229-CR RDS-7229-D RDS-7229-JSMT RDS-7229-SMT RDS-74365 RDS-74365-45A RDS-74385-45A-SMT RDS-74385-SMT RDS-74R-254 RDS-74R-508 RDS-74R45A-254 RDS-74R45A-508 RDS1-1065-D-67 RDS1-1065-SMT-67 RDS2-1012-RA-67 RDS3-1012-RA RDS3-1065-D RDS3-1065-SMT RDS4-1012-RA-67 RDS4-1065-D-67 RDS4-1065-SMT-67 RDS5-1011-RA-67 RDS5-1065-D-67 RDS5-1065-SMT-67 RDS6-1011-RA RDS6-1065-D RDS6-1065-SMT RDS7-1011-RA-67 RDS7-1065-D-67 RDS7-1065-SMT-67 RDT RM RRD RTE RTF RW, COMAX S-1000 S-1000A S-2000A S-2050 S-4000 S-7000 S-8000 SA-5000 SA-7000 SBP SBS SC SC-2000 SD SD-1000 SD-2000 SDA SDB SH-7000 SLV SMR SMS SP SPA SRJ SRK SRM SS-10 SSH SSV STR STV TDA TDD TDP TDS WS-DISU WS-DISV WS-DITU WS-DITV WS-ROSV WS-ROTU WS-ROTV	- Bag Box Bulk Cut Tape (CT) Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Last Time Buy Obsolete	- 10PST 3PST 4PST 4PST-2NO/2NC BCD BCD Complement BCD with Complement DP3T DPDT DPST DPST-NO/NC Gray Code Hexadecimal Hexadecimal Complement Hexadecimal with Complement Octal Octal Complement Programmable SP10T SP3T SP4T SP5T SP6T SP8T SP9T SPDT SPST	- 1 10 11 12 14 16 2 24 25 3 4 5 6 64 7 8 9	- 0.4VA 100mA 10mA 125mA 150mA 200mA 25mA 30mA 50mA 60mA	- 15VDC 16VAC/DC 16VDC 2.4VDC 20VAC/DC 20VDC 24VDC 25VDC 28VDC 30VDC 42VAC 42VAC/DC 42VDC 50VDC 5VDC 6VDC	- Breakable (Shunt) Flush Piano Rocker Rotary for Tool Rotary with Knob Rotary with Shaft Slide (Standard) Standard Toggle	- Flush Flush, Recessed Raised	- Beryllium Copper Brass Bronze Copper Copper Alloy Glass Fabric Epoxy Resin Nickel Phosphor Bronze Stainless Steel	- Gold Gold Alloy Silver Tin	- 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.062" (1.57mm) 0.063" (1.60mm) 0.064" (1.63mm) 0.067" (1.70mm) 0.079" (2.00mm) 0.081" (2.05mm) 0.083" (2.10mm) 0.087" (2.20mm) 0.089" (2.25mm) 0.091" (2.30mm) 0.091" (2.31mm) 0.093" (2.35mm) 0.094" (2.40mm) 0.098" (2.50mm) 0.100" (2.54mm) 0.102" (2.60mm) 0.104" (2.65mm) 0.106" (2.70mm) 0.110" (2.80mm) 0.112" (2.85mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.119" (3.02mm) 0.120" (3.05mm) 0.122" (3.10mm) 0.123" (3.12mm) 0.125" (3.17mm) 0.126" (3.20mm) 0.130" (3.30mm) 0.134" (3.40mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.140" (3.55mm) 0.141" (3.58mm) 0.142" (3.60mm) 0.143" (3.63mm) 0.144" (3.65mm) 0.144" (3.66mm) 0.146" (3.70mm) 0.148" (3.75mm) 0.149" (3.78mm) 0.150" (3.80mm) 0.150" (3.81mm) 0.151" (3.84mm) 0.152" (3.85mm) 0.154" (3.90mm) 0.155" (3.94mm) 0.157" (4.00mm) 0.159" (4.05mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.162" (4.11mm) 0.163" (4.15mm) 0.164" (4.17mm) 0.165" (4.20mm) 0.166" (4.21mm) 0.167" (4.25mm) 0.168" (4.27mm) 0.169" (4.30mm) 0.170" (4.33mm) 0.173" (4.40mm) 0.174" (4.41mm) 0.175" (4.45mm) 0.176" (4.47mm) 0.177" (4.50mm) 0.178" (4.52mm) 0.179" (4.55mm) 0.180" (4.57mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.184" (4.67mm) 0.185" (4.70mm) 0.189" (4.80mm) 0.190" (4.83mm) 0.195" (4.95mm) 0.196" (4.99mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.203" (5.15mm) 0.204" (5.18mm) 0.205" (5.20mm) 0.209" (5.30mm) 0.210" (5.33mm) 0.211" (5.35mm) 0.213" (5.40mm) 0.214" (5.45mm) 0.215" (5.45mm) 0.215" (5.46mm) 0.217" (5.50mm) 0.219" (5.55mm) 0.220" (5.59mm) 0.222" (5.64mm) 0.224" (5.70mm) 0.225" (5.72mm) 0.226" (5.74mm) 0.228" (5.80mm) 0.230" (5.85mm) 0.232" (5.90mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.246" (6.25mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.258" (6.55mm) 0.260" (6.60mm) 0.262" (6.66mm) 0.264" (6.70mm) 0.265" (6.73mm) 0.267" (6.78mm) 0.268" (6.80mm) 0.268" (6.81mm) 0.270" (6.85mm) 0.271" (6.88mm) 0.272" (6.90mm) 0.273" (6.93mm) 0.274" (6.95mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.277" (7.05mm) 0.278" (7.06mm) 0.280" (7.10mm) 0.283" (7.20mm) 0.284" (7.21mm) 0.287" (7.30mm) 0.290" (7.37mm) 0.291" (7.39mm) 0.291" (7.40mm) 0.292" (7.41mm) 0.293" (7.45mm) 0.294" (7.47mm) 0.295" (7.50mm) 0.297" (7.54mm) 0.298" (7.57mm) 0.299" (7.60mm) 0.301" (7.65mm) 0.303" (7.70mm) 0.305" (7.75mm) 0.307" (7.80mm) 0.308" (7.82mm) 0.309" (7.85mm) 0.311" (7.90mm) 0.312" (7.92mm) 0.315" (8.00mm) 0.316" (8.03mm) 0.317" (8.05mm) 0.319" (8.10mm) 0.321" (8.15mm) 0.322" (8.18mm) 0.327" (8.30mm) 0.329" (8.35mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.334" (8.48mm) 0.335" (8.50mm) 0.337" (8.56mm) 0.340" (8.64mm) 0.343" (8.70mm) 0.344" (8.75mm) 0.346" (8.80mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.359" (9.12mm) 0.360" (9.14mm) 0.362" (9.20mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.378" (9.60mm) 0.380" (9.64mm) 0.381" (9.68mm) 0.385" (9.78mm) 0.386" (9.80mm) 0.390" (9.90mm) 0.393" (9.98mm) 0.394" (10.00mm) 0.394" (10.01mm) 0.395" (10.02mm) 0.398" (10.10mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.406" (10.30mm) 0.409" (10.39mm) 0.413" (10.50mm) 0.414" (10.51mm) 0.417" (10.60mm) 0.420" (10.67mm) 0.425" (10.80mm) 0.426" (10.82mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.434" (11.02mm) 0.437" (11.10mm) 0.460" (11.68mm) 0.463" (11.75mm) 0.464" (11.79mm) 0.465" (11.80mm) 0.467" (11.86mm) 0.469" (11.90mm) 0.470" (11.94mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.495" (12.57mm) 0.508" (12.91mm) 0.520" (13.20mm) 0.531" (13.49mm) 0.535" (13.59mm) 0.543" (13.80mm) 0.555" (14.10mm) 0.618" (15.70mm) 0.626" (15.90mm) 0.634" (16.10mm) 0.638" (16.20mm) 1.104" (28.05mm) 1.476" (37.50mm)	- Panel Mount Panel Mount, Right Angle Surface Mount Surface Mount, Right Angle Through Hole Through Hole, Reverse Through Hole, Right Angle	- Gull Wing J Lead PC Pin	- 0.039" (1.00mm) 0.042" (1.08mm) 0.050" (1.27mm), Half 0.051" (1.30mm) 0.083" (2.10mm) 0.100" (2.54mm) 0.100" (2.54mm), Full 0.200" (5.08mm)	- No Yes	- Epoxy Sealed Terminals Epoxy Sealed Terminals, Tape Seal IP64 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof Position Identification Line Position Identification Line, Tape Seal Process Sealed Sealed Sealed - Flux Protection Tape Seal	- -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 85°C -20°C ~ 60°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 85°C -25°C ~ 95°C -30°C ~ 60°C -30°C ~ 80°C -30°C ~ 85°C -30°C ~ 90°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 80°C -40°C ~ 85°C -50°C ~ 125°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 85°C -60°C ~ 125°C

全部重置

全部应用

结果

厂商型号	可用性	价格	数量	数据表	系列	包装	产品状态	电路	位置数量	电流额定值（安培）	电压额定值	执行器类型	执行器水平	触点材料	触点表面处理	板上高度	安装类型	端接样式	间距	可清洗	特性	工作温度
A6S-9104-H SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	127	-	请求报价	数据表	A6S-H	Tube	Active	SPST	9	25mA	24VDC	Slide (Standard)	Raised	-	Gold	0.173" (4.40mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 70°C
EDSP06SGRNSTU04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	256	-	请求报价	数据表	EDSP	Tube	Active	SPST	6	25mA	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	0.197" (5.00mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	Yes	-	-20°C ~ 85°C

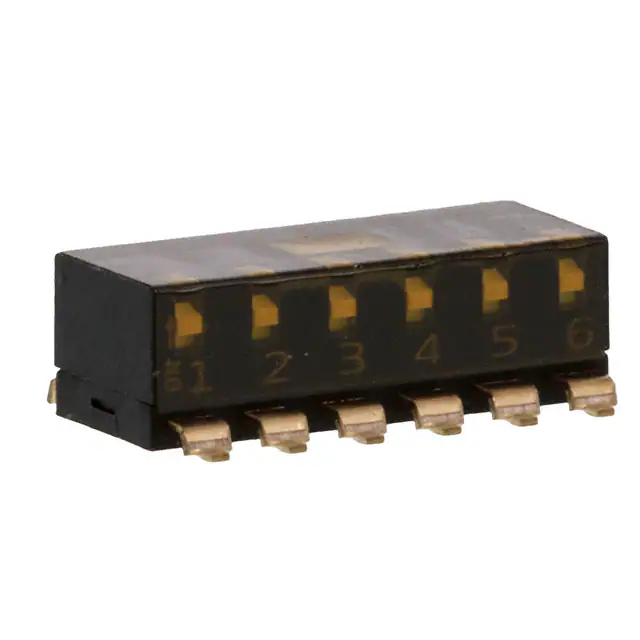

EDSP06SGRFSTU04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	256	-	请求报价	数据表	EDSP	Tube	Active	SPST	6	25mA	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	0.197" (5.00mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	Yes	-	-20°C ~ 85°C
EDSP10SGRNSTR04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	1,400	-	请求报价	数据表	EDSP	Tape & Reel (TR)	Active	SPST	10	25mA	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	0.197" (5.00mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	Yes	-	-20°C ~ 85°C
BD10AV SWITCH SLIDE DIP SPST 0.1A 5V C&K	490	-	请求报价	数据表	BD	Tube	Active	SPST	10	100mA	5VDC	Slide (Standard)	Raised	Phosphor Bronze	Gold	0.380" (9.64mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
FR01KC16P-W-S SW ROTARY DIP HEX COMP 0.1A 5V NKK Switches	250	-	请求报价	数据表	FR01	Tube	Active	Hexadecimal Complement	16	100mA	5VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.426" (10.82mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	-	-25°C ~ 85°C

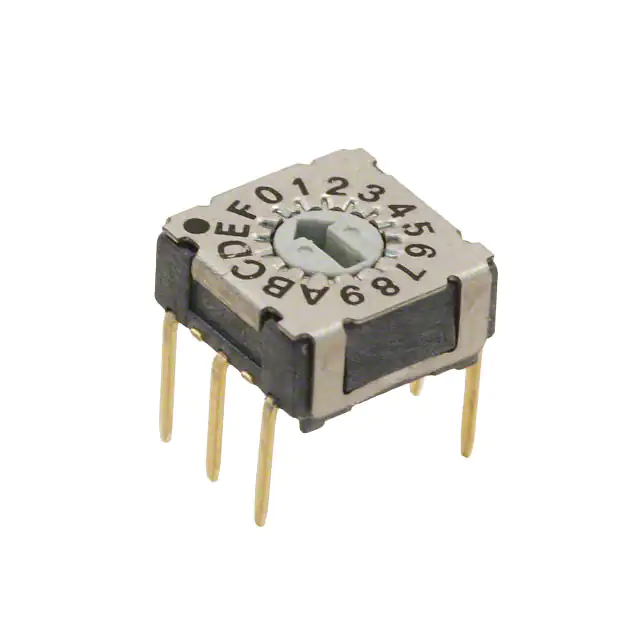

RDMAR16P1T SWITCH ROTARY DIP HEX 0.1A 42V E-Switch	111	-	请求报价	数据表	RDM	Tube	Active	Hexadecimal	16	100mA	42VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.144" (3.66mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	IP67 - Dust Tight, Waterproof	-60°C ~ 125°C
A6RS-101RS SWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div	239	-	请求报价	数据表	A6RS	Tube	Active	BCD	10	25mA	24VDC	Rotary with Shaft	Raised	-	-	0.472" (12.00mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-25°C ~ 80°C
A6HR-4104-P SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	300	-	请求报价	数据表	A6HR	Tape & Reel (TR)	Active	SPST	4	25mA	24VDC	Piano	Raised	-	Gold	0.165" (4.20mm)	Surface Mount, Right Angle	Gull Wing	0.050" (1.27mm), Half	No	-	-30°C ~ 85°C
SMR8016C-1 SWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation	145	-	请求报价	数据表	SMR	Tube	Active	Hexadecimal	16	30mA	15VDC	Rotary with Shaft	Raised	-	Gold	0.173" (4.40mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	-	-25°C ~ 85°C
RTE1000R14 SWITCH ROTARY DIP BCD 0.1A 30V C&K	10,737	-	请求报价	数据表	RTE	Bulk	Active	BCD	10	100mA	30VDC	Rotary for Tool	Flush, Recessed	Bronze	Gold	-	Through Hole, Reverse	PC Pin	0.100" (2.54mm), Full	No	-	-25°C ~ 85°C

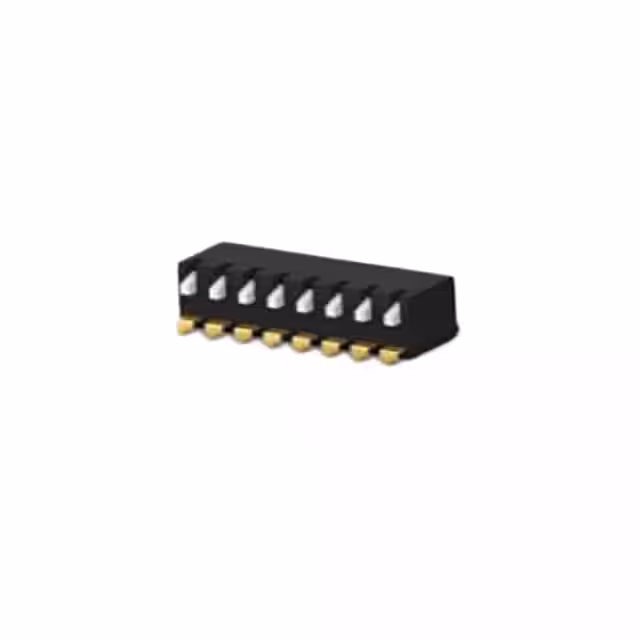

EDSP08SGLFNTR04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	1,709	-	请求报价	数据表	EDSP	Tape & Reel (TR)	Active	SPST	8	25mA	24VDC	Piano	Raised	Copper Alloy	Gold	0.197" (5.00mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 85°C
78B10SRAT SWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc.	6	-	请求报价	数据表	78	Bulk	Active	SPST	10	150mA	30VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.380" (9.64mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C

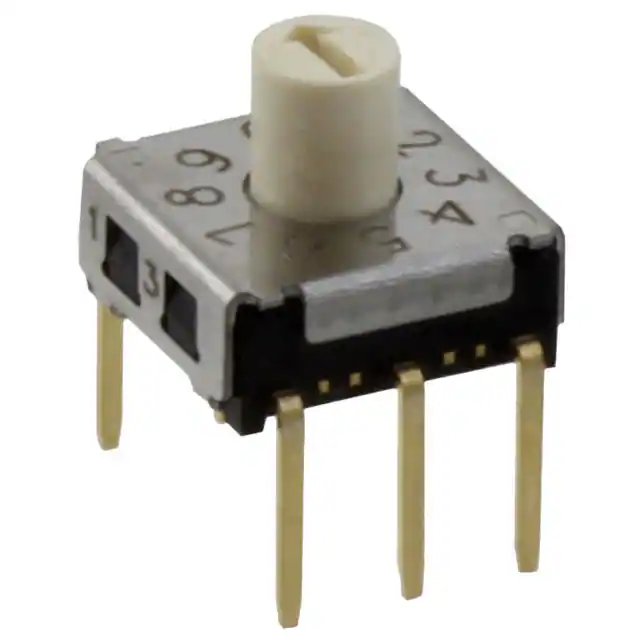

A6K-102RS SWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div	1	-	请求报价	数据表	A6K	Tube	Active	BCD	10	25mA	24VDC	Rotary with Shaft	Raised	-	Gold	0.236" (6.00mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-30°C ~ 80°C
EDSP10SGLFNTU04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	252	-	请求报价	数据表	EDSP	Tube	Active	SPST	10	25mA	24VDC	Piano	Raised	Copper Alloy	Gold	0.197" (5.00mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 85°C
EDSP10SGRFNTU04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	240	-	请求报价	数据表	EDSP	Tube	Active	SPST	10	25mA	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	0.197" (5.00mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 85°C

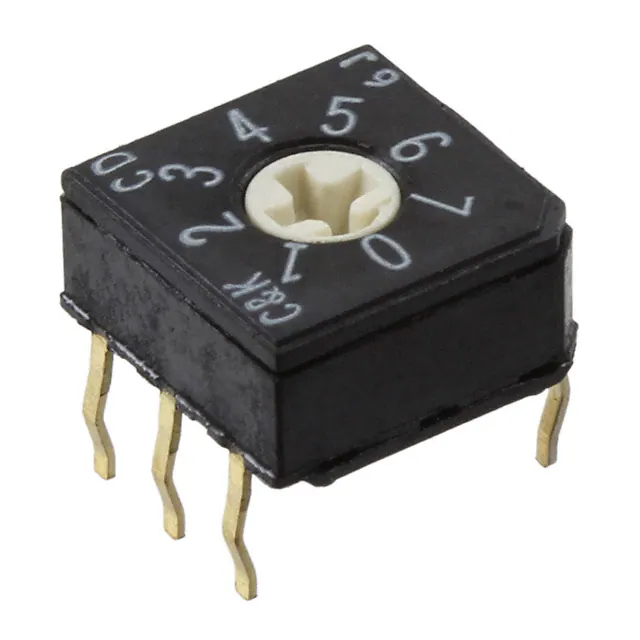

CD08RM0CB SW ROTARY DIP OCTAL 0.4VA 20V C&K	269	-	请求报价	数据表	CD	Tube	Active	Octal	8	0.4VA	20VAC/DC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.168" (4.27mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Process Sealed	-25°C ~ 85°C

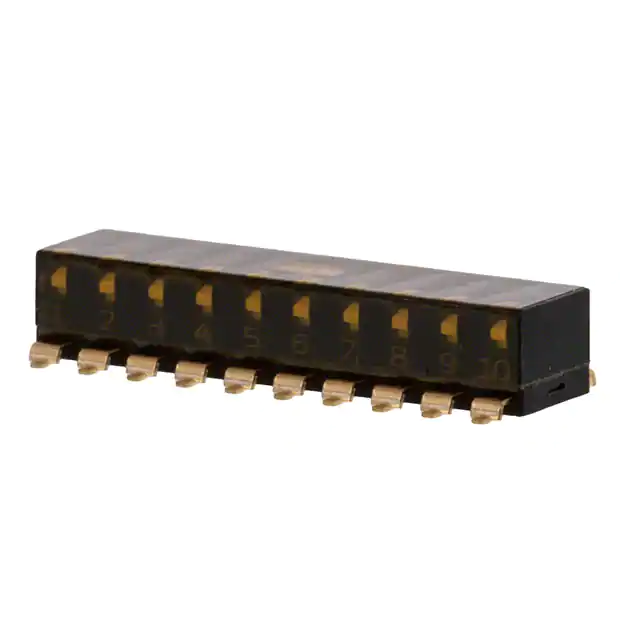

EDSP10SGRFSTU04 SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches	249	-	请求报价	数据表	EDSP	Tube	Active	SPST	10	25mA	24VDC	Piano	Flush, Recessed	Copper Alloy	Gold	0.197" (5.00mm)	Surface Mount, Right Angle	Gull Wing	0.100" (2.54mm), Full	Yes	-	-20°C ~ 85°C

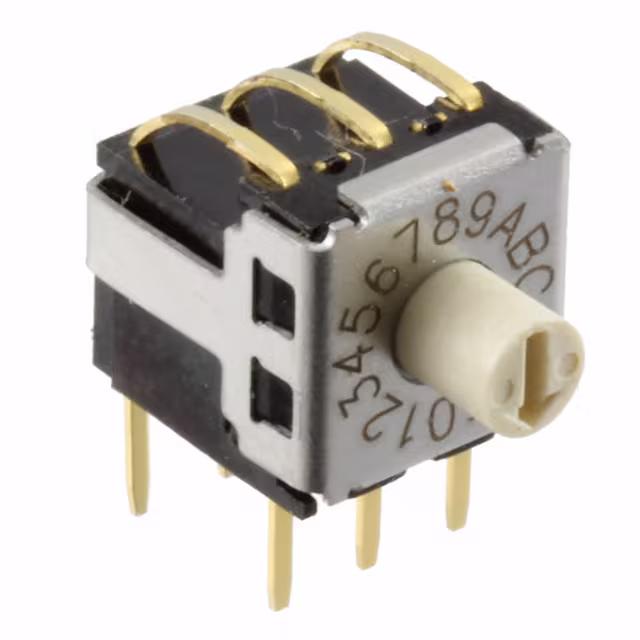

A6KS-162RS SWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div	304	-	请求报价	数据表	A6KS	Tube	Active	Hexadecimal	16	25mA	24VDC	Rotary with Shaft	Raised	-	Gold	0.236" (6.00mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-30°C ~ 80°C
MRSSH4DC16SMGWT SW ROTARY DIP HEX COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches	5,385	-	请求报价	数据表	MRSS	Tube	Active	Hexadecimal Complement	16	0.4VA	20VAC/DC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.303" (7.70mm)	Surface Mount, Right Angle	Gull Wing	0.050" (1.27mm), Half	No	-	-40°C ~ 85°C

共 8311 条记录«上一页 1... 70 71 72 737475 76 77...416 下一页»
