复杂可编程逻辑器件（CPLD）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 可编程 | 可编程类型 | 延迟时间 tpd(1) 最大值 | 电压供应 - 内部 | 逻辑元件/块数量 | 宏单元数量 | 门数 | I/O 数量 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
XC9536XL-5PCG44CIC CPLD 36MC 5NS 44PLCC |
0 | - |
|
数据表 |
XC9500XL | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 5 ns | 3V ~ 3.6V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
CY37256P256-154BGCIC CPLD 256MC 7.5NS 292BGA |
0 | - |
|
数据表 |
Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 7.5 ns | 4.75V ~ 5.25V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|
|
CY37256VP256-100BGCIC CPLD 256MC 12NS 292BGA |
0 | - |
|
数据表 |
Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 3V ~ 3.6V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|

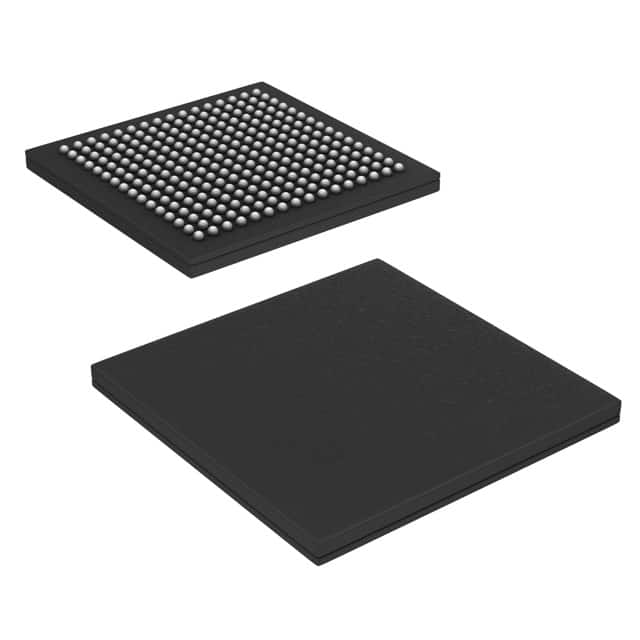

CY37256VP256-66BBCIC CPLD 256MC 20NS 256FBGA |
0 | - |
|
数据表 |
Ultra37000™ | 256-LBGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 256 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
CY37256VP256-66BBIIC CPLD 256MC 20NS 256FBGA |
0 | - |
|
数据表 |
Ultra37000™ | 256-LBGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 256 | - | 197 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
CY37512P256-100BGIIC CPLD 512MC 12NS 292BGA |
0 | - |
|
数据表 |
Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 12 ns | 4.5V ~ 5.5V | - | 512 | - | 197 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|
|
CY37512VP256-66BGCIC CPLD 512MC 20NS 292BGA |
0 | - |
|
数据表 |
Ultra37000™ | 292-BGA | Tray | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 20 ns | 3V ~ 3.6V | - | 512 | - | 197 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 292-PBGA (27x27) |
|
ATF1502BE-5AX44IC CPLD 32MC 5NS 44TQFP |
0 | - |
|
数据表 |
ATF15xx | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 5 ns | 1.7V ~ 1.9V | - | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
ATF1504BE-5AX100IC CPLD 64MC 5NS 100TQFP |
0 | - |
|
数据表 |
ATF15xx | 100-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 5 ns | 1.7V ~ 1.9V | - | 64 | - | 80 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
ATF1504BE-5AX44IC CPLD 64MC 5NS 44TQFP |
0 | - |
|
数据表 |
ATF15xx | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 5 ns | 1.7V ~ 1.9V | - | 64 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
ATF1504BE-7AU100IC CPLD 64MC 7.5NS 100TQFP |
0 | - |
|
数据表 |
ATF15xx | 100-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 1.7V ~ 1.9V | - | 64 | - | 80 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
ATF1504BE-7AU44IC CPLD 64MC 7.5NS 44TQFP |
0 | - |
|
数据表 |
ATF15xx | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 1.7V ~ 1.9V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
ATF1508AS-10AAI128IC CPLD 128MC 10NS |
0 | - |
|
- |
ATF15xx | 128-LQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 128 | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
ATF2500C-20GMIC CPLD 24MC 20NS 40CERDIP |
0 | - |
|
数据表 |
ATF2500C(L) | 40-CDIP (0.600", 15.24mm) | Tube | Obsolete | Verified | In System Programmable | 20 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -55°C ~ 125°C (TC) | - | - | Through Hole | 40-Cerdip |
|
EPM7064AETA44-10NIC CPLD 64MC 10NS 44TQFP |
0 | - |
|
数据表 |
MAX® 7000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | 1250 | 36 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 44-TQFP (10x10) |
|
EPM7128AETA144-10NIC CPLD 128MC 10NS 144TQFP |
0 | - |
|
数据表 |
MAX® 7000A | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 100 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM7064AETA100-10NIC CPLD 64MC 10NS 100FBGA |
0 | - |
|
数据表 |
MAX® 7000A | 100-LBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 4 | 64 | 1250 | 68 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 100-FBGA (11x11) |
|
|
EPM7128AETC144-7NIC CPLD 128MC 7.5NS 144TQFP |
0 | - |
|
数据表 |
MAX® 7000A | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7128AETA100-10NIC CPLD 128MC 10NS 100TQFP |
0 | - |
|
数据表 |
MAX® 7000A | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 8 | 128 | 2500 | 84 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7032AETA44-10NIC CPLD 32MC 10NS 44TQFP |
0 | - |
|
数据表 |
MAX® 7000A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 2 | 32 | 600 | 36 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 44-TQFP (10x10) |
