微控制器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 封装/外壳 | 系列 | 包装 | 产品状态 | 可编程 | 核心处理器 | 核心大小 | 速度 | 连接性 | 外设 | I/O 数量 | 程序存储器大小 | 程序存储器类型 | EEPROM 大小 | RAM 大小 | 电压 - 供应（Vcc/Vdd） | 数据转换器 | 振荡器类型 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STM32F411CEU6TRIC MCU 32BIT 512KB FLSH 48UFQFPN |
2,181 | - |
|
数据表 |
48-UFQFN Exposed Pad | STM32F4 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 100MHz | I2C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 36 | 512KB (512K x 8) | FLASH | - | 128K x 8 | 1.7V ~ 3.6V | A/D 10x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
STM32F103CBU6TRIC MCU 32BIT 128KB FLSH 48UFQFPN |
2,544 | - |
|
数据表 |
48-UFQFN Exposed Pad | STM32F1 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 72MHz | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT | 37 | 128KB (128K x 8) | FLASH | - | 20K x 8 | 2V ~ 3.6V | A/D 10x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

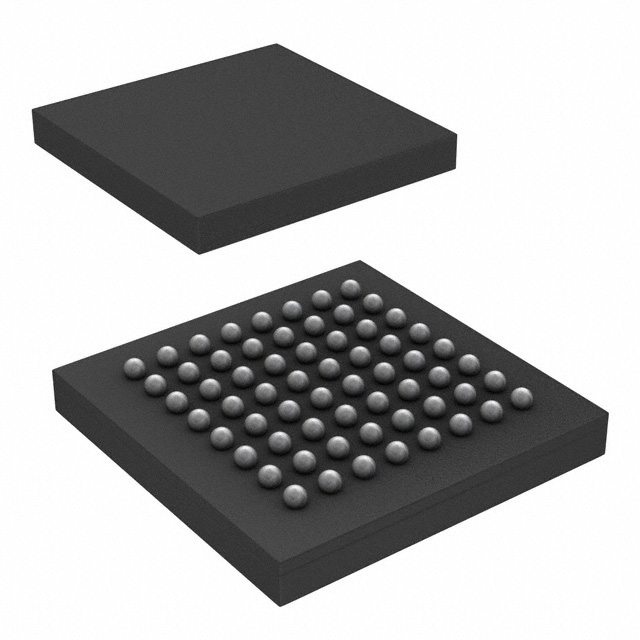

STM32L452REY6TRIC MCU 32BIT 512KB FLASH 64WLCSP |
13,999 | - |
|
数据表 |
64-UFBGA, WLCSP | STM32L4 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 80MHz | CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, PWM, WDT | 52 | 512KB (512K x 8) | FLASH | - | 160K x 8 | 1.71V ~ 3.6V | A/D 16x12b; D/A 1x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
STM32F302CCT6IC MCU 32BIT 256KB FLASH 48LQFP |
913 | - |
|
数据表 |
48-LQFP | STM32F3 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 72MHz | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB | DMA, I2S, POR, PWM, WDT | 37 | 256KB (256K x 8) | FLASH | - | 40K x 8 | 2V ~ 3.6V | A/D 9x12b; D/A 1x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

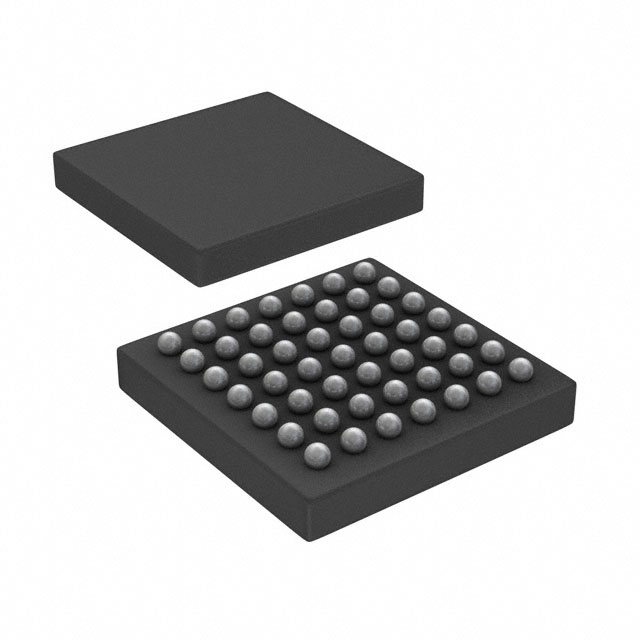

STM32F411CEY6TRIC MCU 32BIT 512KB FLASH 49WLCSP |
22,931 | - |
|
数据表 |
49-UFBGA, WLCSP | STM32F4 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 100MHz | I2C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 36 | 512KB (512K x 8) | FLASH | - | 128K x 8 | 1.7V ~ 3.6V | A/D 10x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
AT32UC3B064-A2UTIC MCU 32BIT 64KB FLASH 64TQFP |
811 | - |
|
数据表 |
64-TQFP | AVR®32 UC3 B | Tray | Active | Not Verified | AVR | 32-Bit Single-Core | 60MHz | I2C, IrDA, SPI, SSC, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 44 | 64KB (64K x 8) | FLASH | - | 16K x 8 | 1.65V ~ 3.6V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MSP430F235TPMRIC MCU 16BIT 16KB FLASH 64LQFP |
1,505 | - |
|
数据表 |
64-LQFP | MSP430F2xx | Tape & Reel (TR) | Active | Verified | MSP430 CPU16 | 16-Bit | 16MHz | I2C, IrDA, LINbus, SCI, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 48 | 16KB (16K x 8 + 256B) | FLASH | - | 2K x 8 | 1.8V ~ 3.6V | A/D 8x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
STM32L451RET6TRIC MCU 32BIT 512KB FLASH 64LQFP |
6,529 | - |
|
数据表 |
64-LQFP | STM32L4 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 80MHz | CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART | Brown-out Detect/Reset, DMA, PWM, WDT | 52 | 512KB (512K x 8) | FLASH | - | 160K x 8 | 1.71V ~ 3.6V | A/D 16x12b; D/A 1x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC18F4431-I/PTIC MCU 8BIT 16KB FLASH 44TQFP |
2,022 | - |
|
数据表 |
44-TQFP | PIC® 18F | Tray | Active | Verified | PIC | 8-Bit | 40MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, LVD, Power Control PWM, QEI, POR, PWM, WDT | 36 | 16KB (8K x 16) | FLASH | 256 x 8 | 768 x 8 | 4.2V ~ 5.5V | A/D 9x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC18F2525-I/SOIC MCU 8BIT 48KB FLASH 28SOIC |
774 | - |
|
数据表 |
28-SOIC (0.295", 7.50mm Width) | PIC® 18F | Tube | Active | Verified | PIC | 8-Bit | 40MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 25 | 48KB (24K x 16) | FLASH | 1K x 8 | 3.8K x 8 | 4.2V ~ 5.5V | A/D 10x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ATSAMD51P19A-AUIC MCU 32BIT 512KB FLASH 128TQFP |
700 | - |
|
数据表 |
128-TQFP | SAM D51 | Tray | Active | Not Verified | ARM® Cortex®-M4F | 32-Bit Single-Core | 120MHz | EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM | 99 | 512KB (512K x 8) | FLASH | - | 192K x 8 | 1.71V ~ 3.63V | A/D 32x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC18F4520-I/PIC MCU 8BIT 32KB FLASH 40DIP |
767 | - |
|
数据表 |
40-DIP (0.600", 15.24mm) | PIC® 18F | Tube | Active | Verified | PIC | 8-Bit | 40MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 36 | 32KB (16K x 16) | FLASH | 256 x 8 | 1.5K x 8 | 4.2V ~ 5.5V | A/D 13x10b | Internal | -40°C ~ 85°C (TA) | - | - | Through Hole | ||
|
|
PIC16F877A-I/PIC MCU 8BIT 14KB FLASH 40DIP |
3,240 | - |
|
数据表 |
40-DIP (0.600", 15.24mm) | PIC® 16F | Tube | Active | Verified | PIC | 8-Bit | 20MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 33 | 14KB (8K x 14) | FLASH | 256 x 8 | 368 x 8 | 4V ~ 5.5V | A/D 8x10b | External | -40°C ~ 85°C (TA) | - | - | Through Hole | ||
|
C8051F301-GMIC MCU 8BIT 8KB FLASH 11QFN |
2,348 | - |
|
数据表 |
10-VFDFN Exposed Pad | C8051F30x | Tube | Not For New Designs | Verified | 8051 | 8-Bit | 25MHz | SMBus (2-Wire/I2C), UART/USART | POR, PWM, WDT | 8 | 8KB (8K x 8) | FLASH | - | 256 x 8 | 2.7V ~ 3.6V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
EFM32PG23B210F512IM48-CIC MCU 32BIT 512KB FLASH 48QFN |
1,313 | - |
|
数据表 |
48-VFQFN Exposed Pad | Gecko | Tray | Active | Not Verified | ARM® Cortex®-M33 | 32-Bit | 80MHz | I2C, IrDA, SmartCard, SMBus, SPI, Temp Sensor, UART/USART | Crypto - AES, DMA, I2S, Keypad, LCD, POR. PWM, SHA, Temp Sensor, TRNG, WDT | 34 | 512KB (512K x 8) | FLASH | - | 64K x 8 | 1.71V ~ 3.8V | A/D 16x12/16/20b; D/A 2x12b | External, Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
PIC16F74T-I/LIC MCU 8BIT 7KB FLASH 44PLCC |
974 | - |
|
数据表 |
44-LCC (J-Lead) | PIC® 16F | Tape & Reel (TR) | Active | Verified | PIC | 8-Bit | 20MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 33 | 7KB (4K x 14) | FLASH | - | 192 x 8 | 4V ~ 5.5V | A/D 8x8b | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
PIC18LF2550-I/SOIC MCU 8BIT 32KB FLASH 28SOIC |
403 | - |
|
数据表 |
28-SOIC (0.295", 7.50mm Width) | PIC® 18F | Tube | Active | Not Verified | PIC | 8-Bit | 48MHz | I2C, SPI, UART/USART, USB | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 24 | 32KB (16K x 16) | FLASH | 256 x 8 | 2K x 8 | 2V ~ 5.5V | A/D 10x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC32MK0512GPG048-I/Y8XIC MCU 32BIT 512KB FLASH 48TQFP |
232 | - |
|
数据表 |
48-TQFP | PIC® 32MK | Tray | Active | Not Verified | MIPS32® microAptiv™ | 32-Bit Single-Core | 120MHz | I2C, IrDA, LINbus, SPI, UART/USART | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 37 | 512KB (512K x 8) | FLASH | - | 64K x 8 | 2.3V ~ 3.6V | A/D 18x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
DSPIC33FJ64GP804-I/PTIC MCU 16BIT 64KB FLASH 44TQFP |
588 | - |
|
数据表 |
44-TQFP | dsPIC™ 33F | Tray | Active | Not Verified | dsPIC | 16-Bit | 40 MIPs | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | Brown-out Detect/Reset, DCI, DMA, I2S, POR, PWM, WDT | 35 | 64KB (64K x 8) | FLASH | - | 16K x 8 | 3V ~ 3.6V | A/D 13x10b/12b; D/A 2x16b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
PIC24HJ128GP502-I/SOIC MCU 16BIT 128KB FLASH 28SOIC |
530 | - |
|
数据表 |
28-SOIC (0.295", 7.50mm Width) | PIC® 24H | Tube | Active | Verified | PIC | 16-Bit | 40 MIPs | CANbus, I2C, IrDA, LINbus, PMP, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 21 | 128KB (43K x 24) | FLASH | - | 8K x 8 | 3V ~ 3.6V | A/D 10x10b/12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
