风扇电源线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 样式 | 第一连接器 | 第二连接器 | 长度 | 适配端子尺寸 | 导体数量 | 电线类型 | 线规 | 认证机构标记 | 电压额定值 | 电流额定值（安培） | 工作温度 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
07199-36POWER CORD FAN T-TYPE 36" |
0 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle, T-Style | Open Wires | 36.0" (914.4mm) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
07145-24FAN CORD 24" |
0 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 24.0" (609.6mm) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
07100-36FAN CORD 36" |
3 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 36.0" (914.4mm) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
07190-SP024POWER CORD W/PLUG FAN R/A 24" |
0 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 90°, Right Angle | NEMA 1-15 Plug | 24.0" (609.6mm) | 4.5 x 2.5 | 2 | SPT-1 | 18 AWG | cUL, UL | 125 V | 10 A | 105°C | - |
|
07100-48FAN CORD 48" |
16 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 48.0" (1.22m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
|
07145-60FAN CORD 60" |
6 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° | Open Wires | 60.0" (1.52m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
C45-60PFAN CORD 45DEG W/AC PLUG |
18 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° | NEMA 1-15 Plug | 60.0" (1.52m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|
C45-2DC-84FAN CORD 45DEG 2POS 84" |
0 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 45° (2) | Open Wires | 84.0" (2.13m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | Daisy Chain |
|

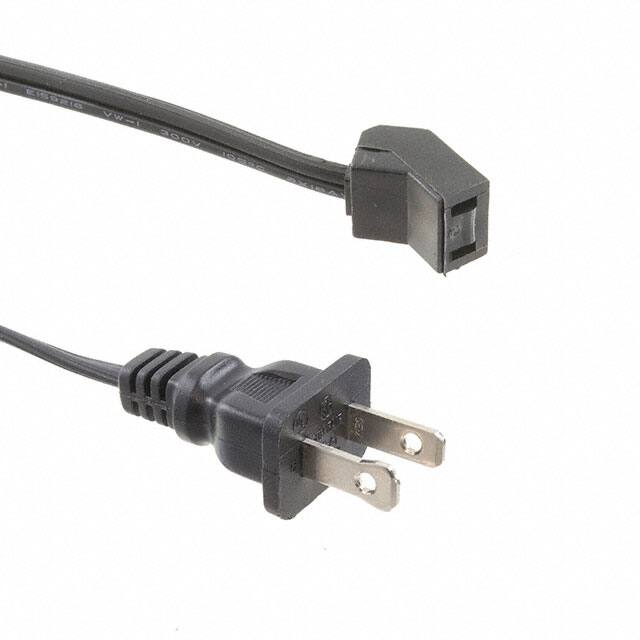

07145-24PFAN CORD W/ WALL PLUG 24" |
4 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° | NEMA 1-15 Plug | 24.0" (609.6mm) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
07100-24PFAN CORD W/ WALL PLUG 24" |
1 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 180°, Straight | NEMA 1-15 Plug | 24.0" (609.6mm) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
489-016-L10CORD 120X25 92X25 80X25 80X38MM |
0 | - |
|
数据表 |
- | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 39.4" (1.00m) | - | 2 | VSF0.75mm² | - | CSA, UL | - | - | - | - |
|

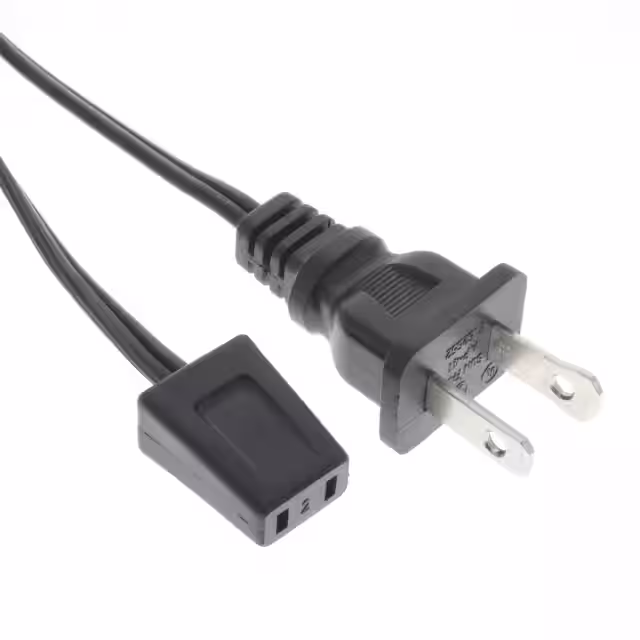

07100-48PFAN CORD W/ WALL PLUG 48" |
19 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 180°, Straight | NEMA 1-15 Plug | 48.0" (1.22m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|

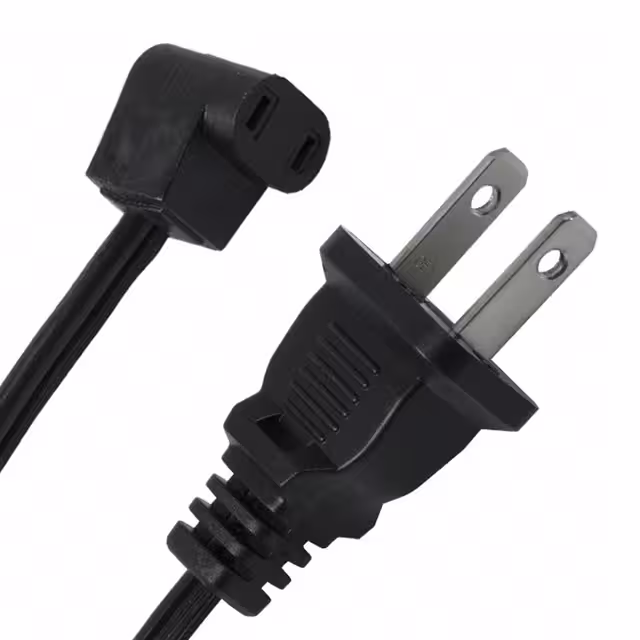

07190-48PFAN CORD W/ WALL PLUG 48" |
8 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 90°, Right Angle | NEMA 1-15 Plug | 48.0" (1.22m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
|
07100-72PFAN CORD W/ WALL PLUG 72" |
12 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 180°, Straight | NEMA 1-15 Plug | 72.0" (1.83m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
489-037-L10FAN CORD 120X38MM 1M |
0 | - |
|
数据表 |
- | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 39.4" (1.00m) | - | 3 | VSF1.25mm² | - | CSA, UL | - | - | - | - |
|

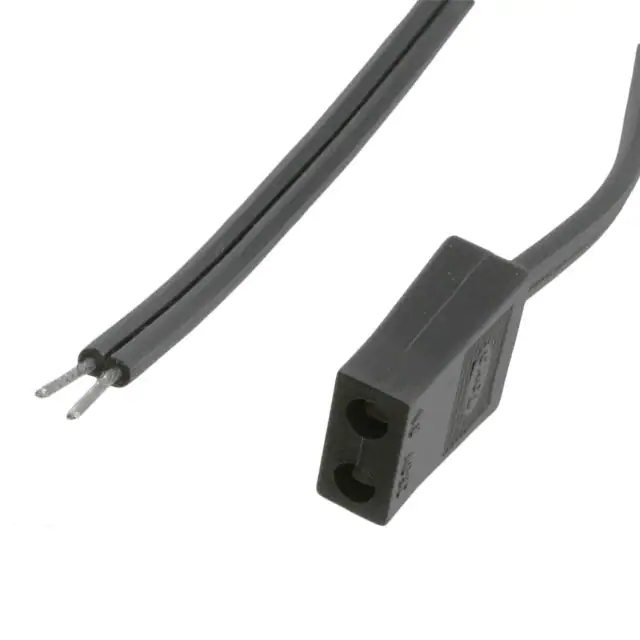

R87F-PCPLUG CORD 250V 3A 1M FOR R87 FAN |
6 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 39.4" (1.00m) | 2.8 x 0.5 | 2 | - | - | UL | 250 V | 3 A | - | - |
|
|
07190-72PFAN CORD W/ WALL PLUG 72" |
9 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 90°, Right Angle | NEMA 1-15 Plug | 72.0" (1.83m) | 4.1 x 0.5 | 2 | - | 18 AWG | - | - | - | 105°C | - |
|
C45-3DC-144PFAN CORD, 3 POS , 144" W/PLUG |
9 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Male Plug | Fan Terminal Receptacle 45° (3) | NEMA 1-15 Plug | 144.0" (3.66m) | - | 2 | SPT-1 | 18 AWG | cURus, TUV | - | - | - | - |
|
489-006-L10FAN CORD 120X38MM 1M |
6 | - |
|
数据表 |
- | Box | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 39.4" (1.00m) | - | 2 | - | - | CSA, UL | - | - | - | - |
|
|
R87F-PC-20PLUG CORD 250V 3A 2M FOR R87 FAN |
18 | - |
|
数据表 |
- | Bulk | Active | Female Receptacle to Cable | Fan Terminal Receptacle 180°, Straight | Open Wires | 78.7" (2.00m) | 2.8 x 0.5 | 2 | - | - | UL | 250 V | 3 A | - | - |
