场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQA300CEJW-T1_GE3AUTOMOTIVE N-CHANNEL 30 V (D-S) |
2,980 | - |
|
数据表 |
- | PowerPAK® SC-70-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.63A (Tc) | 4.5V, 10V | 33mOhm @ 3A, 10V | 2.5V @ 250µA | 10 nC @ 10 V | ±20V | 365 pF @ 25 V | - | 13.6W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerPAK®SC-70W-6 |
|
DMG2302UQ-13MOSFET N-CH 20V 4.2A SOT23-3 |
15,020 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 2.5V, 4.5V | 90mOhm @ 3.6A, 4.5V | 1V @ 50µA | 7 nC @ 4.5 V | ±8V | 594.3 pF @ 10 V | - | 800mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
SIA483ADJ-T1-GE3MOSFET P-CH 30V 10.6A/12A PPAK |
2,705 | - |
|
数据表 |
TrenchFET® Gen IV | PowerPAK® SC-70-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 10.6A (Ta), 12A (Tc) | 4.5V, 10V | 20mOhm @ 5A, 10V | 2.5V @ 250µA | 26 nC @ 10 V | +16V, -20V | 950 pF @ 15 V | - | 3.4W (Ta), 17.9W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
PMN50EPEXMOSFET P-CH 30V 4.6A 6TSOP |
2,470 | - |
|
数据表 |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Ta) | 4.5V, 10V | 45mOhm @ 4.6A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 793 pF @ 15 V | - | 560mW (Ta), 6.25mW (Tc) | 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
DMP2033UVT-7MOSFET P-CH 20V 4.2A TSOT-26 |
2,395 | - |
|
数据表 |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 1.8V, 4.5V | 65mOhm @ 4.2A, 4.5V | 900mV @ 250µA | 10.4 nC @ 4.5 V | ±8V | 845 pF @ 15 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-26 |
|
|
DMG2302UQ-7MOSFET N-CH 20V 4.2A SOT23-3 |
1,940 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 2.5V, 4.5V | 90mOhm @ 3.6A, 4.5V | 1V @ 50µA | 7 nC @ 4.5 V | ±8V | 594.3 pF @ 10 V | - | 800mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
PMPB08R6ENXMOSFET N-CH 30V 11A DFN2020M-6 |
17,978 | - |
|
数据表 |
TrenchMOS™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | - | 10.5mOhm @ 11A, 10V | 2V @ 250µA | 20.6 nC @ 10 V | ±20V | 840 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|
|
PMCB60XNEZPMCB60XNE/SOT8026/DSN1006-3 |
7,727 | - |
|
数据表 |
- | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 1.8V, 4.5V | 55mOhm @ 3.5A, 4.5V | 1.1V @ 250µA | 7.5 nC @ 4.5 V | ±12V | 420 pF @ 15 V | - | 480mW (Ta), 7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DSN1006-3 |
|
DI006P02PWMOSFET POWERQFN 2X2 P -20V -6A 0 |
4,000 | - |
|
数据表 |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Tc) | 2.5V, 4.5V | 25mOhm @ 6A, 4.5V | 1V @ 250µA | 13 nC @ 4.5 V | ±12V | 1242 pF @ 10 V | - | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-QFN (2x2) |
|
PJS6421-AU_S1_000A120V P-CHANNEL ENHANCEMENT MODE M |
3,064 | - |
|
数据表 |
- | SOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.4A (Ta) | 1.8V, 4.5V | 26mOhm @ 5A, 4.5V | 1V @ 250µA | 16.5 nC @ 4.5 V | ±10V | 1620 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-6 |
|
RRQ020P03TCRMOSFET P-CH 30V 2A TSMT6 |
2,939 | - |
|
数据表 |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 4V, 10V | 160mOhm @ 2A, 10V | 2.5V @ 1mA | 3.2 nC @ 5 V | ±20V | 230 pF @ 10 V | - | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
|
PMPB10R3XNXSMALL SIGNAL MOSFETS FOR PORTABL |
2,502 | - |
|
数据表 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.9A (Ta) | 1.8V, 4.5V | 12.2mOhm @ 8.9A, 4.5V | 900mV @ 250µA | 9.9 nC @ 4.5 V | ±12V | 770 pF @ 15 V | - | 1.5W (Ta), 19W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
|
|
SI1480BDH-T1-GE3N-CHNNEL 100-V (D-S) MOSFET SC70 |
11,620 | - |
|
数据表 |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.8A (Ta), 2.38A (Tc) | 4.5V, 10V | 212mOhm @ 2A, 10V | 3V @ 250µA | 6 nC @ 10 V | ±20V | 206 pF @ 50 V | - | 1.5W (Ta), 2.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
BUK6D23-40EHSMALL SIGNAL MOSFETS FOR AUTOMOT |
2,970 | - |
|
数据表 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Ta), 19A (Tc) | 4.5V, 10V | 23mOhm @ 8A, 10V | 2.7V @ 250µA | 19 nC @ 10 V | ±20V | 582 pF @ 20 V | - | 2.3W (Ta), 15W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
|
BUK7D25-40EXMOSFET N-CH 40V 8A DFN2020MD-6 |
2,344 | - |
|
数据表 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Ta) | 10V | 25mOhm @ 8A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±20V | 460 pF @ 20 V | - | 15W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN2020MD-6 |
|
|
PMPB13XNEZPMPB13XNE/SOT1220/SOT1220 |
2,195 | - |
|
数据表 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 1.8V, 4.5V | 16mOhm @ 8A, 4.5V | 900mV @ 250µA | 36 nC @ 4.5 V | ±12V | 2195 pF @ 15 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020MD-6 |
|

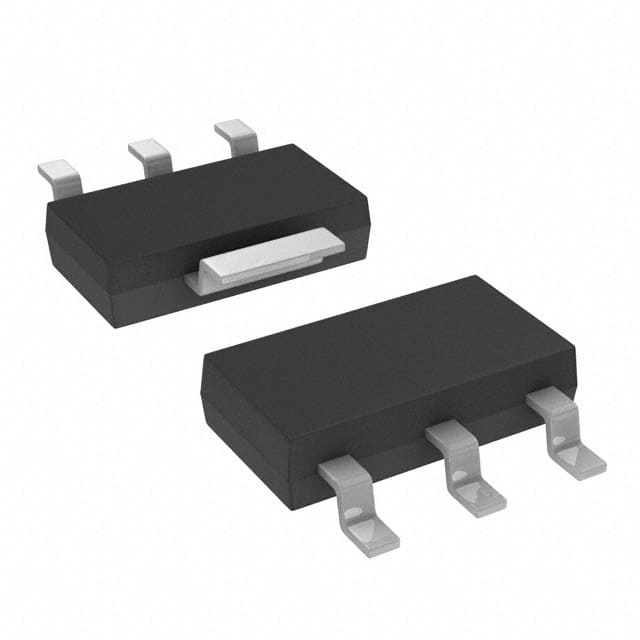

PJW3N10A_R2_00001100V N-CHANNEL ENHANCEMENT MODE |
8,251 | - |
|
数据表 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 2.2A (Ta) | 4.5V, 10V | 310mOhm @ 2.2A, 10V | 2.5V @ 250µA | 9.1 nC @ 10 V | ±20V | 508 pF @ 30 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
DMP6350S-13MOSFET P-CH 60V 1.5A SOT23 |
6,687 | - |
|
数据表 |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.5A (Ta) | 4.5V, 10V | 350mOhm @ 900mA, 10V | 3V @ 250µA | 4.1 nC @ 10 V | ±20V | 206 pF @ 30 V | - | 720mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
DMN2015UFDF-7MOSFET N-CH 20V 15.2A 6UDFN |
5,790 | - |
|
数据表 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 15.2A (Ta) | 1.5V, 4.5V | 9mOhm @ 8.5A, 4.5V | 1.2V @ 250µA | 42.3 nC @ 10 V | ±12V | 1439 pF @ 10 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 |
|
|
PJW4N06A-AU_R2_000A160V N-CHANNEL ENHANCEMENT MODE M |
5,719 | - |
|
数据表 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 4A (Ta) | 4.5V, 10V | 100mOhm @ 3A, 10V | 2.5V @ 250µA | 5.1 nC @ 4.5 V | ±20V | 509 pF @ 15 V | - | 3.7W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
