固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MLF1608E5R6MTD25FIXED IND 5.6UH 15MA 1.1 OHM SMD |
7,965 | - |
|
数据表 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±20% | 15 mA | - | Shielded | 1.1Ohm Max | 35 @ 4MHz | 45MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MHQ1005075HA5N6BTD25FIXED IND 5.6NH 0.5A 190 MOHM SM |
7,120 | - |
|
数据表 |
MHQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.1nH | 500 mA | - | Unshielded | 190mOhm Max | 20 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.030" (0.75mm) |
|
|
MHQ1005075HA1N2BTD25FIXED IND 1.2NH 1A 40 MOHM SMD |
7,065 | - |
|
数据表 |
MHQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.2 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | - | 13GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.030" (0.75mm) |
|
MLF2012A1R8MTD25FIXED IND 1.8UH 80MA 450MOHM SMD |
5,500 | - |
|
数据表 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.8 µH | ±20% | 80 mA | - | Shielded | 450mOhm Max | 45 @ 10MHz | 90MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLF2012C680MTD25FIXED IND 68UH 2MA 2.9 OHM SMD |
4,000 | - |
|
数据表 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 68 µH | ±20% | 2 mA | - | Shielded | 2.9Ohm Max | 25 @ 1MHz | 9MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

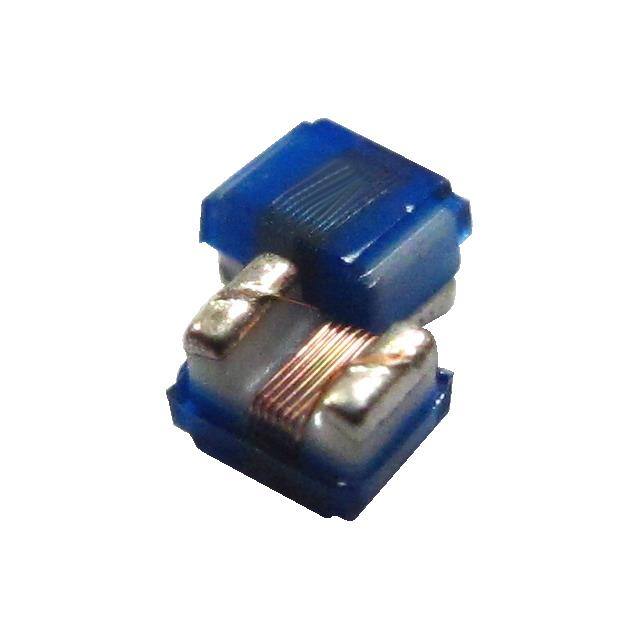

AWCM0016100862NJ00INDUCTOR RF |
4,000 | - |
|
数据表 |
AWCM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 62 nH | ±5% | 280 mA | - | Unshielded | 510mOhm Max | 38 @ 200MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
BWCM0016100882NG00INDUCTOR RF |
4,000 | - |
|
数据表 |
BWCM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 250 mA | - | Unshielded | 600mOhm Max | 34 @ 150MHz | 2GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
LSQNA201209T1R0MFIXED IND 1UH 950MA 195 MOHM SMD |
4,000 | - |
|
- |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 620 mA | 620mA | Unshielded | 195mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LSQBA160808T4R7MFIXED IND 4.7UH 70MA 0.55OHM SMD |
4,000 | - |
|
数据表 |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 70 mA | - | Unshielded | 550mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
LSQPB322517T470KFIXED IND 47UH 390MA 1.2 OHM SMD |
3,864 | - |
|
数据表 |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 390 mA | 420mA | Unshielded | 1.2Ohm Max | - | 7MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
MLF2012C330MTD25FIXED IND 33UH 5MA 1.1 OHM SMD |
3,840 | - |
|
数据表 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 33 µH | ±20% | 5 mA | - | Shielded | 1.1Ohm Max | 30 @ 400kHz | 15MHz | AEC-Q200 | -40°C ~ 85°C | 400 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSQNA201209T470MFIXED IND 47UH 140MA 5.46OHM SMD |
3,826 | - |
|
- |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 100 mA | 100mA | Unshielded | 5.46Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LSQNA201209T220MFIXED IND 22UH 250MA 2.73OHM SMD |
3,825 | - |
|
数据表 |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 150 mA | 150mA | Unshielded | 2.73Ohm Max | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
MLF2012C101MTD25FIXED IND 100UH 2MA 3.1 OHM SMD |
3,750 | - |
|
数据表 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 100 µH | ±20% | 2 mA | - | Shielded | 3.1Ohm | 25 @ 1MHz | 7MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSXNE3030MKT2R2MNFIXED IND 2.2UH 1.37A 90MOHM SMD |
3,600 | - |
|
数据表 |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.37 A | 1.5A | Shielded | 90mOhm Max | - | 78MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSQBA160808T100MFIXED IND 10UH 60MA 0.7 OHM SMD |
3,388 | - |
|
数据表 |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 60 mA | - | Unshielded | 700mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
LSXNE3030MKT100MNFIXED IND 10UH 720MA 324MOHM SMD |
3,131 | - |
|
数据表 |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 720 mA | 730mA | Shielded | 324mOhm Max | - | 32MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSAPB2016KKT1R0MFIXED IND 1UH 2.3A 70 MOHM SMD |
2,970 | - |
|
数据表 |
LSAP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 2.3 A | 2.7A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
.jpg)
|
LQM21PN3R3MG0DFIXED IND 3.3UH 800MA 207MOHM SM |
2,788 | - |
|
数据表 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 800 mA | - | Shielded | 207mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LSQPA201616T220KFIXED IND 22UH 240MA 2.34OHM SMD |
2,282 | - |
|
数据表 |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 240 mA | 250mA | Unshielded | 2.34Ohm Max | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
