固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCHW105D-R47MS5IND SMD 0.47UH AUTO GRADE CHOKE |
398 | - |
|
数据表 |
VCHW105D | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 31.5 A | 34A | Unshielded | 1.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.213" (5.40mm) |
|
B82477R4684M100FIXED IND 680UH 880MA 860MOHM SM |
234 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 880 mA | 1.1A | Shielded | 860mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
FP1008R6-R120-RFIXED IND 120NH 74A 0.18MOHM SMD |
837 | - |
|
数据表 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 74 A | 84A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
|
VCMT136E-330MN54MIND SMD 33.0UH AUTO GRADE CHOKE |
490 | - |
|
数据表 |
VCMT136E | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 5 A | 3.7A | Unshielded | 69mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
PE-53662NLFIXED IND 4.9UH 7.8A 12.4MOHM SM |
1,650 | - |
|
数据表 |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 4.9 µH | - | 7.8 A | - | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
FP1008V2-R100-RIND FLAT PAC 100NH 95A 2 PADS |
600 | - |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP1109-R47-RFIXED IND 463NH 35A 0.42MOHM SMD |
350 | - |
|
数据表 |
FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 463 nH | ±10% | 35 A | 27A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
APCI00121210100T80INDUCTOR POWER |
250 | - |
|
数据表 |
APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 7.5 A | 11.5A | Shielded | 18.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SRF1010DA-7R5MFIXED IND 7.5UH 6.8A 28 MOHM SMD |
2,400 | - |
|
数据表 |
SRF1010DA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 7.5 µH | ±20% | 6.8 A | 10A | Shielded | 28mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.378" W (12.00mm x 9.60mm) | 0.457" (11.60mm) |
|
|
SRF1010DA-100MFIXED IND 10UH 5.6A 32.6MOHM SMD |
2,396 | - |
|
数据表 |
SRF1010DA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 5.6 A | 7.4A | Shielded | 32.6mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.378" W (12.00mm x 9.60mm) | 0.457" (11.60mm) |
|
|
SRF1010DA-5R6MFIXED IND 5.6UH 7.5A 23 MOHM SMD |
2,395 | - |
|
数据表 |
SRF1010DA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 5.6 µH | ±20% | 7.5 A | 11A | Shielded | 23mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.378" W (12.00mm x 9.60mm) | 0.457" (11.60mm) |
|
|
SRF1010DA-R43MFIXED IND 430NH 27A 2.3 MOHM SMD |
2,377 | - |
|
数据表 |
SRF1010DA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 430 nH | ±20% | 27 A | 38A | Shielded | 2.3mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.378" W (12.00mm x 9.60mm) | 0.457" (11.60mm) |
|
|
7443081022WE-HCM SMT HIGH CURRENT FLAT WIR |
550 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 nH | ±10% | 38 A | 45A | Shielded | 0.29mOhm | - | 43MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|

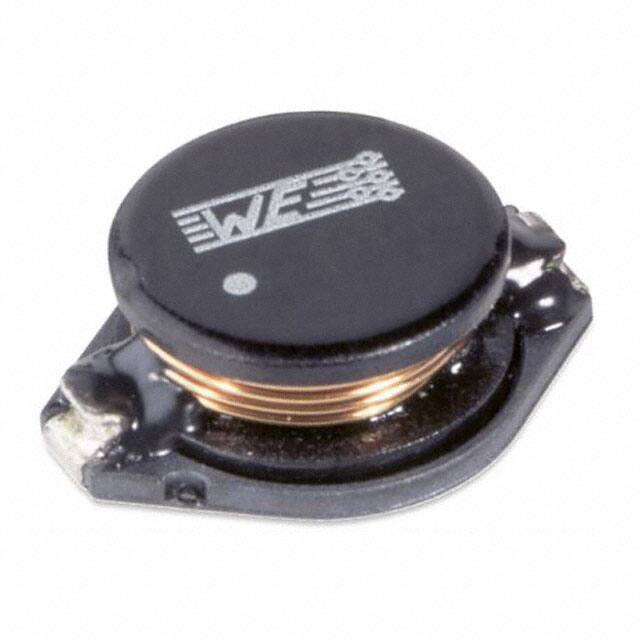

74457247FIXED IND 470UH 820MA 809MOHM SM |
171 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 820 mA | 1.4A | Unshielded | 809mOhm Max | - | 2.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
PM2207.472NLTFIXED IND 4.7UH 9A 26.7 MOHM SMD |
3,000 | - |
|
数据表 |
PM2207.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 9 A | 13.5A | Unshielded | 26.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
PID120HS-560MDIFFERENTIAL MODE INDUCTOR 2X56 |
490 | - |
|
数据表 |
PID*-560M/650M | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 56 µH | ±20% | 1.9 A | 2.2A | Shielded | 90mOhm | - | - | - | -40°C ~ 150°C | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
ATL-1Z090610SR15LTFIXED IND 150NH 62A 0.125MOHM |
1,500 | - |
|
数据表 |
ATL-1Z090610S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 150 nH | ±15% | 75 A | 62A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.366" L x 0.240" W (9.30mm x 6.10mm) | 0.409" (10.40mm) |
|
|
ATL-1Z120612SR17LTFIXED IND 170NH 70A 0.125MOHM |
540 | - |
|
数据表 |
ATL-1Z120612S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 170 nH | ±15% | 70 A | 70A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.244" W (12.00mm x 6.20mm) | 0.472" (12.00mm) |
|
|
ATL-1Z090610SR18LTFIXED IND 180NH 54A 0.125MOHM |
425 | - |
|
数据表 |
ATL-1Z090610S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 180 nH | ±15% | 75 A | 54A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.366" L x 0.240" W (9.30mm x 6.10mm) | 0.409" (10.40mm) |
|
|
ATL-1Z090610SR12LTFIXED IND 120NH 75A 0.125MOHM |
425 | - |
|
数据表 |
ATL-1Z090610S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 120 nH | ±15% | 75 A | 79A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.366" L x 0.240" W (9.30mm x 6.10mm) | 0.409" (10.40mm) |
