固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1026R-00MFIXED IND 22NH 3.8A 10 MOHM TH |
489 | - |
|
数据表 |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 22 nH | ±20% | 3.8 A | - | Unshielded | 10mOhm Max | 50 @ 50MHz | 900MHz | - | -55°C ~ 125°C | 50 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-06KFIXED IND 39NH 1.9A 40 MOHM TH |
489 | - |
|
数据表 |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 39 nH | ±10% | 1.9 A | - | Unshielded | 40mOhm Max | 40 @ 25MHz | 825MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026R-10KFIXED IND 56NH 1.7A 50 MOHM TH |
488 | - |
|
数据表 |
1026R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 56 nH | ±10% | 1.7 A | - | Unshielded | 50mOhm Max | 40 @ 25MHz | 775MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IHLD2525GGER3R3MA12-IN-1 IND PACK 3.3UH 6.5A 28.5 |
250 | - |
|
数据表 |
IHLD2525GG-A1 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 6.5 A | 14A | Shielded | 28.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.296" (7.52mm) |
|

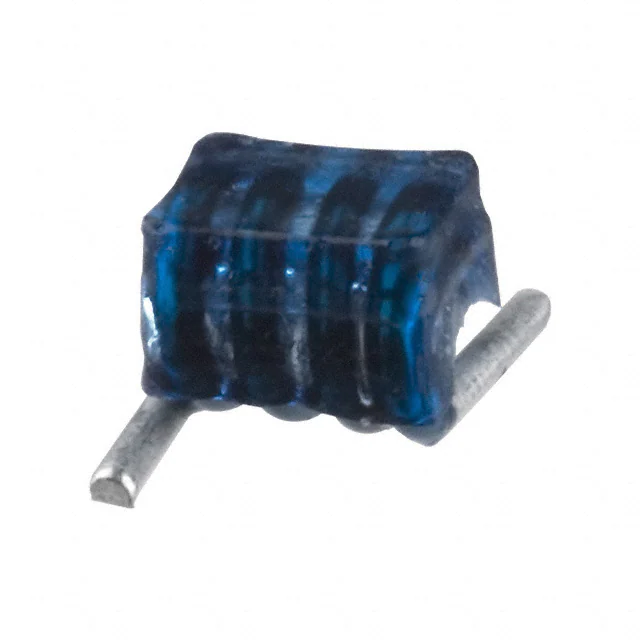

4426R-7FIXED IND 22NH 3A SMD |
3,531 | - |
|
数据表 |
4426R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 3 A | - | Unshielded | - | 102 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
PGL6380.201HLTIND PWR BEAD TLVR 200NH 59A |
1,274 | - |
|
数据表 |
PGL6380.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 200 nH | ±15% | 59 A | 59A | Unshielded | 0.37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.453" (11.50mm) |
|
|
PGL6380.121HLTIND PWR BEAD TLVR 120NH 102A |
1,255 | - |
|
数据表 |
PGL6380.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 77 A | 102A | Unshielded | 0.37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.453" (11.50mm) |
|
|
PGL6380.171HLTIND PWR BEAD TLVR 170NH 70A |
1,255 | - |
|
数据表 |
PGL6380.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 170 nH | ±15% | 70 A | 70A | Unshielded | 0.37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.453" (11.50mm) |
|
|
4426R-10FIXED IND 43NH 3A SMD |
1,190 | - |
|
数据表 |
4426R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 43 nH | ±5% | 3 A | - | Unshielded | - | 106 @ 150MHz | 1.5GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426R-8FIXED IND 28NH 3A SMD |
638 | - |
|
数据表 |
4426R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 28 nH | ±5% | 3 A | - | Unshielded | - | 105 @ 150MHz | 2.6GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426R-2FIXED IND 5NH 3A SMD |
500 | - |
|
数据表 |
4426R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 5 nH | ±10% | 3 A | - | Unshielded | - | 140 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426R-1NCFIXED IND 2.5NH 3A SMD |
500 | - |
|
数据表 |
4426R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 2.5 nH | ±10% | 3 A | - | Unshielded | - | 145 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.125" W (3.68mm x 3.18mm) | 0.120" (3.05mm) |
|
|
PGL6380.151HLTIND PWR BEAD TLVR 150NH 85A |
455 | - |
|
数据表 |
PGL6380.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 77 A | 85A | Unshielded | 0.37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.453" (11.50mm) |
|
|
4426R-9FIXED IND 35.5NH 3A SMD |
423 | - |
|
数据表 |
4426R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 35.5 nH | ±5% | 3 A | - | Unshielded | - | 112 @ 150MHz | 1.8GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426R-5FIXED IND 18.5NH 3A SMD |
364 | - |
|
数据表 |
4426R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 18.5 nH | ±5% | 3 A | - | Unshielded | - | 132 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426R-3FIXED IND 8NH 3A SMD |
362 | - |
|
数据表 |
4426R | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8 nH | ±5% | 3 A | - | Unshielded | - | 140 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426-8FIXED IND 28NH 3A SMD |
308 | - |
|
数据表 |
4426 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 28 nH | ±5% | 3 A | - | Unshielded | - | 105 @ 150MHz | 2.6GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426-2FIXED IND 5NH 3A SMD |
250 | - |
|
数据表 |
4426 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 5 nH | ±10% | 3 A | - | Unshielded | - | 140 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426-3FIXED IND 8NH 3A SMD |
250 | - |
|
数据表 |
4426 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8 nH | ±5% | 3 A | - | Unshielded | - | 140 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426-4FIXED IND 12.5NH 3A SMD |
250 | - |
|
数据表 |
4426 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.5 nH | ±5% | 3 A | - | Unshielded | - | 137 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
