固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422A1332K100FIXED IND 3.3UH 200MA 1.2OHM SMD |
7,193 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 200 mA | - | Unshielded | 1.2Ohm Max | 27 @ 7.96MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
LQW18CNR56J00DFIXED IND 560NH 450MA 480MOHM SM |
6,244 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 450 mA | - | Unshielded | 480mOhm Max | - | 540MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
74479762122FIXED IND 220NH 1.2A 120MOHM SMD |
4,008 | - |
|
数据表 |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 220 nH | ±20% | 1.2 A | 1.3A | Unshielded | 120mOhm | 7 @ 1MHz | 250MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
.jpg)
|
74479773210FIXED IND 1UH 1.2A 180 MOHM SMD |
3,367 | - |
|
数据表 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.2 A | 800mA | Unshielded | 180mOhm | 14 @ 1MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
LQM21PH3R3XGEL80FIXED IND 3.3UH 740MA POWRTRN |
2,806 | - |
|
数据表 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 740 mA | 530mA | Shielded | 460mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
LQW2BAN13NG00LFIXED IND 13NH 2.4A 40 MOHM SMD |
1,695 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 13 nH | ±2% | 2.4 A | - | Unshielded | 40mOhm Max | 80 @ 500MHz | 3.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|

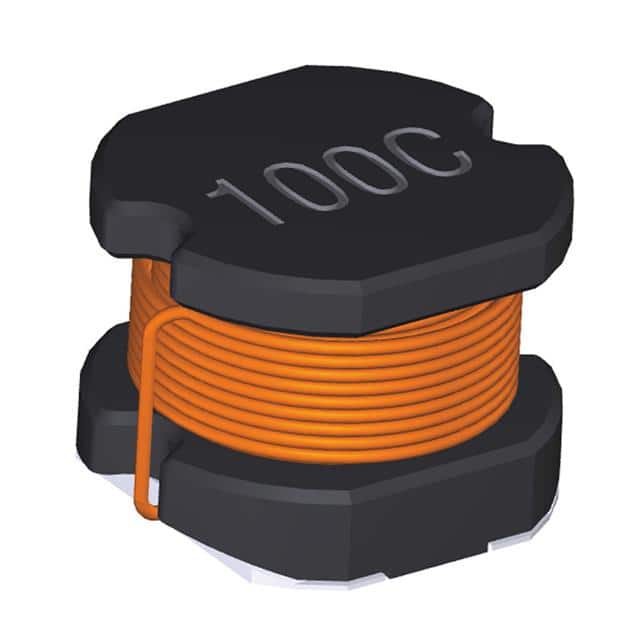

23100CFIXED IND 10UH 1.02A 138MOHM SMD |
1,508 | - |
|
数据表 |
2300 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | - | 1.02 A | - | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
|
B82422A1102J100FIXED IND 1UH 380MA 340 MOHM SMD |
127,950 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 380 mA | - | Unshielded | 340mOhm Max | 20 @ 7.96MHz | 320MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
SRN5040-4R7MFIXED IND 4.7UH 3.1A 35 MOHM SMD |
43,941 | - |
|
数据表 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.1 A | 3.3A | Shielded | 35mOhm Max | 15 @ 7.96MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
VLS4012ET-1R0NFIXED IND 1UH 2.5A 60 MOHM SMD |
25,801 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.5 A | 2.5A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS6045EX-220M-HFIXED IND 22UH 1.9A 105MOHM SMD |
25,669 | - |
|
数据表 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 2.4A | Shielded | 105mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN5040-100MFIXED IND 10UH 2.1A 68 MOHM SMD |
21,490 | - |
|
数据表 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.3A | Shielded | 68mOhm Max | 17 @ 7.96MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
LSCNB1005EETR47MBFIXED IND 470NH 1.2A 140MOHM SMD |
17,953 | - |
|
数据表 |
LSCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 1.2 A | 1.2A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ASPI-6045S-2R7N-TFIXED IND 2.7UH 4.3A 15 MOHM SMD |
12,299 | - |
|
数据表 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 4.3 A | 5.75A | Shielded | 15mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
TYS8040100M-10FIXED IND 10UH 3.3A 29 MOHM SMD |
11,626 | - |
|
数据表 |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3.3 A | 3.6A | Shielded | 29mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
IFSC1515AHER3R3M01FIXED IND 3.3UH 2.7A 56 MOHM SMD |
9,069 | - |
|
数据表 |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 2.7 A | 2.4A | Shielded | 56mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
SRN5040-2R2YFIXED IND 2.2UH 3.5A 21 MOHM SMD |
8,910 | - |
|
数据表 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | 4.6A | Shielded | 21mOhm Max | 20 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
SRN5040-270MFIXED IND 27UH 1.3A 198 MOHM SMD |
8,803 | - |
|
数据表 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.3 A | 1.4A | Shielded | 198mOhm Max | 17 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
SRN3015-330MFIXED IND 33UH 500MA 959MOHM SMD |
8,398 | - |
|
数据表 |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 500 mA | 460mA | Shielded | 959mOhm Max | 20 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
NRS5040T220MMGKVFIXED IND 22UH 1.4A 163.8MOHM SM |
8,351 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.5A | Shielded | 163.8mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
