固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1334K000FIXED IND 330UH 280MA 3.29OHM SM |
1,754 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 280 mA | 550mA | Unshielded | 3.29Ohm Max | 20 @ 796kHz | 3.4MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442T1222K000FIXED IND 2.2UH 2.71A 38MOHM SMD |
1,685 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 2.71 A | 6.3A | Unshielded | 38mOhm Max | 15 @ 7.96MHz | 46MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
RL622-221K-RCFIXED IND 220UH 640MA 650MOHM TH |
1,565 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 640 mA | - | Unshielded | 650mOhm Max | 20 @ 796kHz | 2.7MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
74404042022FIXED IND 2.2UH 2.2A 42 MOHM SMD |
1,545 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.2 A | 3.4A | Shielded | 42mOhm | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

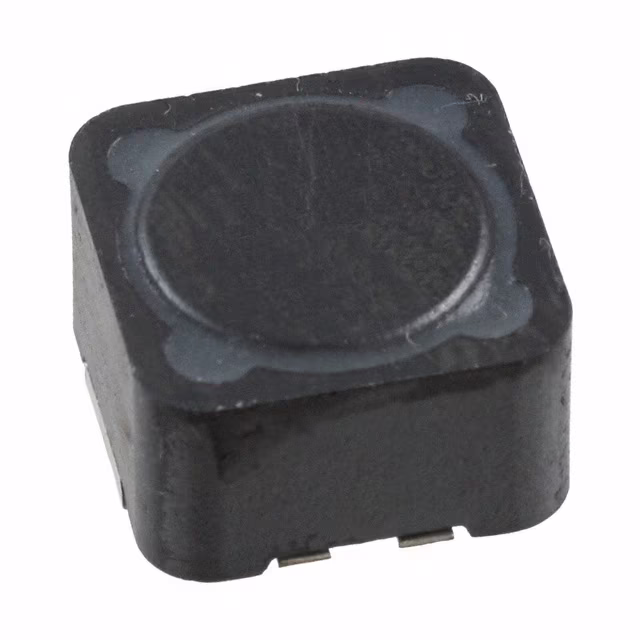

DR127-471-RFIXED IND 470UH 850MA 861MOHM SM |
1,432 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 850 mA | 1.68A | Shielded | 861mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
AIUR-06-151KFIXED IND 150UH 1.9A 162 MOHM TH |
1,426 | - |
|
数据表 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.9 A | 2.4A | Unshielded | 162mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
74404032330FIXED IND 33UH 500MA 911MOHM SMD |
1,424 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 500 mA | 540mA | Shielded | 911mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74404032068FIXED IND 6.8UH 1.16A 120MOHM SM |
1,175 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.16 A | 940mA | Shielded | 120mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
DR125-471-RFIXED IND 470UH 870MA 718MOHM SM |
1,165 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 870 mA | 1.02A | Shielded | 718mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
AIUR-06-101KFIXED IND 100UH 2.1A 108 MOHM TH |
1,008 | - |
|
数据表 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.1 A | 2.8A | Unshielded | 108mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
74404024150FIXED IND 15UH 470MA 830MOHM SMD |
940 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 470 mA | 750mA | Shielded | 830mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
RL622-103K-RCFIXED IND 10MH 50MA 25 OHM TH |
906 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 50 mA | - | Unshielded | 25Ohm Max | 40 @ 79.6kHz | 300kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
EXLA1V0505-100-RIND MOLDED SHLD 10.0UH 3.8A |
900 | - |
|
数据表 |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 5 A | 5.4A | Shielded | 43mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
PCMB053T-2R2MSFIXED IND 2.2UH 5.5A 35 MOHM SMD |
773 | - |
|
数据表 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 5.5 A | 9A | Unshielded | 35mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
|
|
AIUR-06-100KFIXED IND 10UH 5A 31 MOHM TH |
545 | - |
|
数据表 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 5 A | 8.8A | Unshielded | 31mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
RL622-1R5K-RCFIXED IND 1.5UH 8.5A 16 MOHM TH |
538 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 8.5 A | - | Unshielded | 16mOhm Max | 20 @ 7.96MHz | 130MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
RL622-330K-RCFIXED IND 33UH 1.6A 90 MOHM TH |
499 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.6 A | - | Unshielded | 90mOhm Max | 30 @ 2.52MHz | 7.8MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|

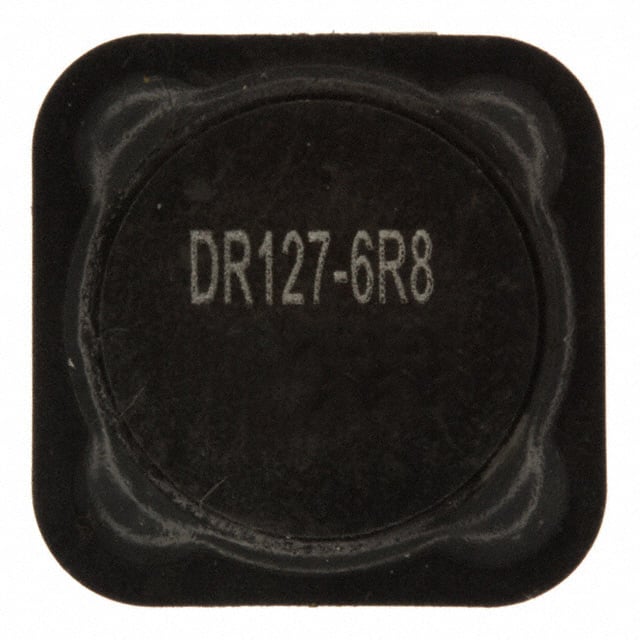

DR127-6R8-RFIXED IND 6.8UH 7.34A 11.6 MOHM |
340 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 7.34 A | 13.3A | Shielded | 11.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
74404024010FIXED IND 1UH 2.2A 37 MOHM SMD |
246 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.3 A | 2.5A | Shielded | 37mOhm | - | 159MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
PCMB053T-1R0MSFIXED IND 1UH 7A 14 MOHM SMD |
48,134 | - |
|
数据表 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 7 A | 11A | Unshielded | 14mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.110" (2.80mm) |
