固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
DFE322520FD-4R7M=P2FIXED IND 4.7UH 2A 98 MOHM SMD |
11,170 | - |
|
数据表 |
DFE322520FD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2 A | 3.4A | Shielded | 98mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
CLF5030NIT-101M-DFIXED IND 100UH 400MA 1.056 OHM |
4,838 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 400 mA | 560mA | Shielded | 1.056Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
SLF7055T-220M1R7-3PFFIXED IND 22UH 2A 77.2 MOHM SMD |
15,321 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2 A | 1.7A | Shielded | 77.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.228" (5.80mm) |
|
CD54NP-100MCFIXED IND 10UH 1.44A 100MOHM SMD |
13,646 | - |
|
数据表 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.44 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
SLF7045T-100M1R3-PFFIXED IND 10UH 1.78A 43.2MOHM SM |
5,851 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.78 A | 1.3A | Shielded | 43.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CD54NP-101KCFIXED IND 100UH 520MA 700MOHM SM |
16,079 | - |
|
数据表 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 520 mA | - | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
SRR0745A-102MFIXED IND 1MH 200MA 4.1 OHM SMD |
84,867 | - |
|
数据表 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 200 mA | 240mA | Shielded | 4.1Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
SPM6530T-4R7MFIXED IND 4.7UH 5.6A 39.4MOHM SM |
6,601 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 5.6 A | 6.2A | Shielded | 39.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
TFM322512ALVA4R7MTAAFIXED IND 4.7UH 1.9A 151MOHM SMD |
5,585 | - |
|
数据表 |
TFM-ALVA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.9 A | 2.2A | Shielded | 151mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SRR0745A-330MFIXED IND 33UH 1.35A 150MOHM SMD |
2,117 | - |
|
数据表 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.35 A | 1.45A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
104CDMCCDS-220MCFIXED IND 22UH 5A 66 MOHM SMD |
71,111 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 5 A | 6.5A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
104CDMCCDS-1R5MCFIXED IND 1.5UH 19A 4.2MOHM SMD |
68,359 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 19 A | 29A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
104CDMCCDS-470MCFIXED IND 47UH 3.2A 145MOHM SMD |
40,988 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 3.2 A | 4.3A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
ETQ-P3M220KVNFIXED IND 22UH 2.7A 140.8MOHM SM |
13,071 | - |
|
数据表 |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 2.7 A | 4.3A | Shielded | 140.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
104CDMCCDS-100MCFIXED IND 10UH 7.5A 30 MOHM SMD |
11,762 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 7.5 A | 10A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

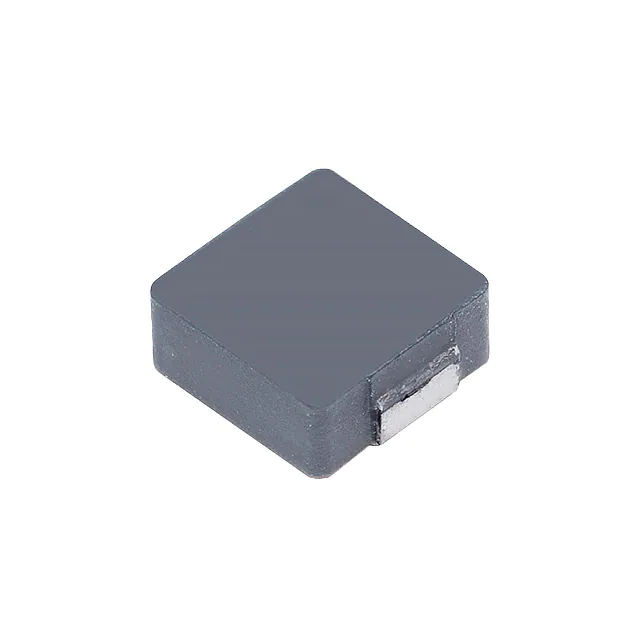

HCMA0703-330-RFIXED IND 33UH 1.8A 242 MOHM SMD |
2,393 | - |
|
数据表 |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 1.8 A | 2A | Shielded | 242mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M100KVNFIXED IND 10UH 3.6A 78.1MOHM SMD |
1,495 | - |
|
数据表 |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 3.6 A | 6.1A | Shielded | 78.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|

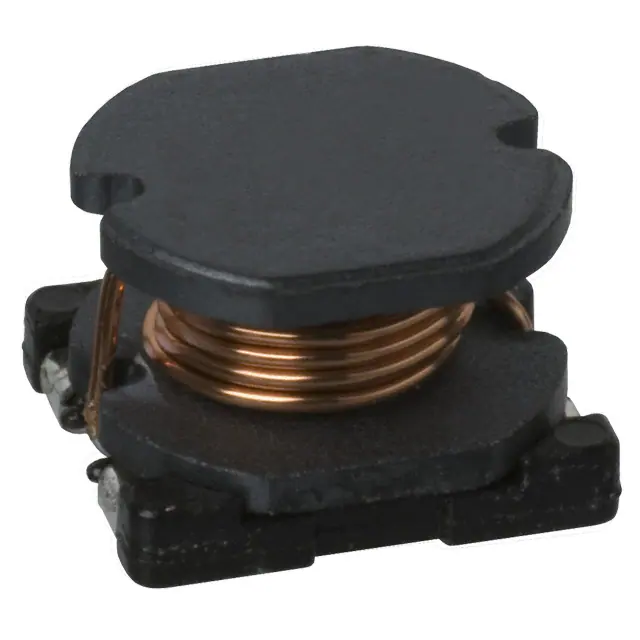

CR75NP-470KCFIXED IND 47UH 1.1A 180 MOHM SMD |
71,482 | - |
|
数据表 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.1 A | - | Unshielded | 180mOhm Max | - | 13MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SPM6530T-2R2MFIXED IND 2.2UH 8.2A 19 MOHM SMD |
8,350 | - |
|
数据表 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 8.2 A | 8.4A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M330KVNFIXED IND 33UH 2.1A 226.6MOHM SM |
2,679 | - |
|
数据表 |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 2.1 A | 3A | Shielded | 226.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
