固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404063082FIXED IND 8.2UH 2.25A 55MOHM SMD |
1,269 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 2.25 A | 2.5A | Shielded | 55mOhm | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
SRR1208-390YLFIXED IND 39UH 2.5A 76 MOHM SMD |
1,172 | - |
|
数据表 |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 2.5 A | 3.4A | Shielded | 76mOhm Max | 25 @ 2.52MHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
74404042221FIXED IND 220UH 250MA 3.45OHM SM |
1,119 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 250 mA | 390mA | Shielded | 3.45Ohm | - | 5.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
1.5mm.jpg)
|
74438335068FIXED IND 6.8UH 1.1A 287MOHM SMD |
684 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 1.1 A | 2.4A | Shielded | 287mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
74404054033FIXED IND 3.3UH 3.4A 24 MOHM SMD |
611 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.4 A | 4.3A | Shielded | 24mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
74404064150FIXED IND 15UH 2.05A 68 MOHM SMD |
535 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.45 A | 3A | Shielded | 68mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
74404041101FIXED IND 100UH 430MA 1.697 OHM |
445 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 430 mA | 300mA | Shielded | 1.697Ohm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
1.2mm.jpg)
|
74438334010FIXED IND 1UH 2.75A 50.5MOHM SMD |
272 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 2.75 A | 6.6A | Shielded | 50.5mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
B82111E0000C027FIXED IND 470UH 300MA 6.5 OHM TH |
5,693 | - |
|
数据表 |
B82111E | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 300 mA | - | Unshielded | 6.5Ohm | - | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.236" Dia x 1.024" L (6.00mm x 26.00mm) | - |
|
ASPI-0403S-220M-TFIXED IND 22UH 700MA 110MOHM SMD |
5,418 | - |
|
数据表 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 700 mA | - | Shielded | 110mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA4990.101HLTFIXED IND 100NH 77A 0.125MOHM SM |
3,647 | - |
|
数据表 |
PA4990 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 77 A | 125A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
CDRH8D43NP-330NCFIXED IND 33UH 1.4A 125 MOHM SMD |
2,865 | - |
|
数据表 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.4 A | 2.2A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|

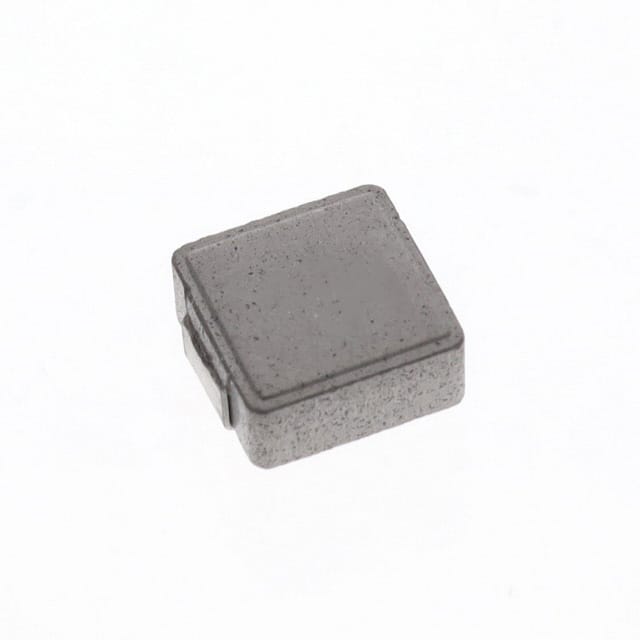

SRP6530A-3R3MIND,7.1X6.6X3MM,3.3UH20%,8A,SHD |
2,076 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 8 A | 13.5A | Shielded | 30mOhm Max | 24 @ 7.96MHz | 25MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
B82442T1475J000FIXED IND 4.7MH 73MA 48.6OHM SMD |
1,751 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 73 mA | 145mA | Unshielded | 48.6Ohm Max | 30 @ 252kHz | 800kHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
CLF6045T-330M-DFIXED IND 33UH 1.5A 123.6MOHM SM |
1,699 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.07A | Shielded | 123.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
CLF6045T-331M-DFIXED IND 330UH 440MA 1.164 OHM |
1,609 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 440 mA | 350mA | Shielded | 1.164Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
SLF10165T-220M2R43PFFIXED IND 22UH 2.4A 53.8MOHM SMD |
1,506 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.4 A | 2.7A | Shielded | 53.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
EXL1V0605-4R7-RFIXED IND 4.7UH 8.5A 18.4MOHM SM |
717 | - |
|
数据表 |
EXL1V0605 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 8.5 A | 8.4A | Shielded | 18.4mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|

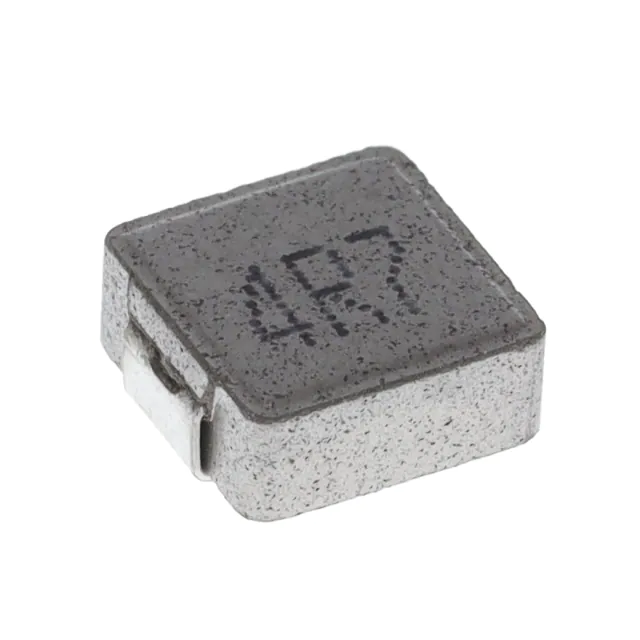

SRP6530A-4R7MIND,7.1X6.6X3MM,4.7UH20%,6A,SHD |
128 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 6 A | 11A | Shielded | 40mOhm Max | 21 @ 7.96MHz | 22MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
B82442T1102M050FIXED IND 1UH 3.51A 25 MOHM SMD |
16,047 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.51 A | 7.33A | Unshielded | 25mOhm Max | 15 @ 7.96MHz | 111MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
