固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BCL322520RT-4R7M-DINDUCTORS FOR POWER CIRCUITS, AU |
4,687 | - |
|
数据表 |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.52 A | 2.5A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
BCL322520RT-100M-DINDUCTORS FOR POWER CIRCUITS, AU |
2,416 | - |
|
数据表 |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.72 A | 1.71A | Shielded | 230mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|

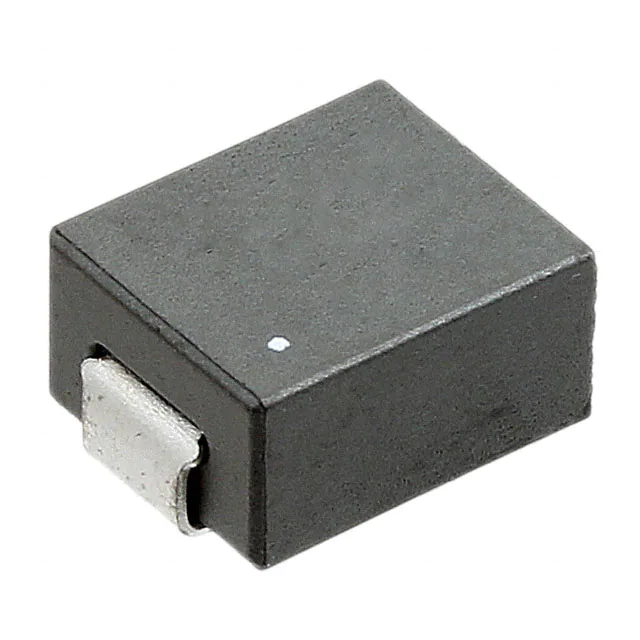

P2004NLTFIXED IND 200NH 15A 0.56MOHM SMD |
2,004 | - |
|
数据表 |
VOLTA 2 | Nonstandard | Tape & Reel (TR) | Active | - | - | 200 nH | ±20% | 15 A | 16.8A | Unshielded | 0.56mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.255" W (7.01mm x 6.48mm) | 0.125" (3.18mm) |
|
SRP5030CA-R80MFIXED IND 800NH 13.1A 5.65 MOHM |
1,989 | - |
|
数据表 |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 800 nH | ±20% | 13.1 A | 20A | Shielded | 5.65mOhm Max | - | 57MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
BCL322520RT-6R8M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,895 | - |
|
数据表 |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.87 A | 2.24A | Shielded | 180mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
SRP5030CA-R33MFIXED IND 330NH 19.2A 3.52 MOHM |
1,756 | - |
|
数据表 |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 19.2 A | 28A | Shielded | 3.52mOhm Max | - | 110MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
BCL322520RT-3R3M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,660 | - |
|
数据表 |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.99 A | 3.13A | Shielded | 78mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
IHLP5050CEER1R0M01FIXED IND 1UH 24A 3.5 MOHM SMD |
1,539 | - |
|
数据表 |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 24 A | 40A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
PCMB103E-1R0MSFIXED IND 1UH 20A 3 MOHM SMD |
1,490 | - |
|
数据表 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 20 A | 27A | Unshielded | 3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
SPM7054VT-1R0M-DFIXED IND 1UH 14.9A 0.0046OHM SM |
1,485 | - |
|
数据表 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 14.9 A | 19.3A | Shielded | 4.6mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
IHLP4040EDER4R7M5AFIXED IND 4.7UH 11.5A 11.77 MOHM |
663 | - |
|
数据表 |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 11.5 A | 11.9A | Shielded | 11.77mOhm Max | - | 16.45MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
|
IHLP5050CEER1R8M01FIXED IND 1.8UH 16.5A 7 MOHM SMD |
499 | - |
|
数据表 |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 16.5 A | 30A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
CLF10040T-330M-DFIXED IND 33UH 1.7A 96 MOHM SMD |
452 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 2.2A | Shielded | 96mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
IHDF1300AEEH5R0K1AFIXED IND 5UH 59A 1.11 MOHM TH |
422 | - |
|
数据表 |
IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 59 A | 78A | Unshielded | 1.11mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
|
IHLP5050CEERR33M01FIXED IND 330NH 36.5A 1.5MOHM SM |
349 | - |
|
数据表 |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 36.5 A | 62A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
|
IHLP5050CEER8R2M01FIXED IND 8.2UH 8.5A 28 MOHM SMD |
283 | - |
|
数据表 |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 8.5 A | 16A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
744062001FIXED IND 1UH 4.8A 14 MOHM SMD |
13,577 | - |
|
数据表 |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | -40%, +20% | 4.8 A | 4.6A | Shielded | 14mOhm Max | - | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
1.5mm.jpg)
|
74438335220FIXED IND 22UH 600MA 940MOHM SMD |
7,632 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 22 µH | ±20% | 600 mA | 1.6A | Shielded | 940mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335330FIXED IND 33UH 500MA 1.33OHM SMD |
6,286 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 500 mA | 1.3A | Shielded | 1.33Ohm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335150FIXED IND 15UH 650MA 830MOHM SMD |
5,419 | - |
|
数据表 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 650 mA | 1.71A | Shielded | 830mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
