固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

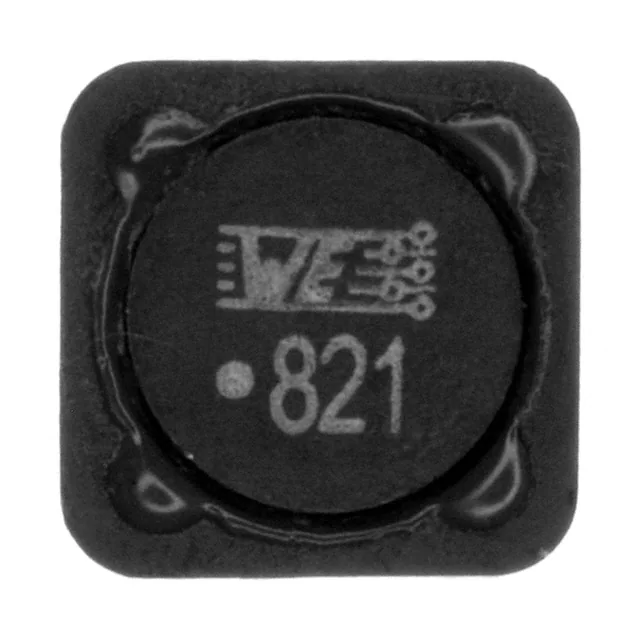

7447709821FIXED IND 820UH 950MA 1 OHM SMD |
758 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 950 mA | 1.1A | Shielded | 1Ohm Max | - | 1.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
UP2B-470-RFIXED IND 47UH 1.7A 138.8MOHM SM |
1,179 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.7 A | 1.4A | Unshielded | 138.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
|
UP2B-680-RFIXED IND 68UH 1.5A 178.7MOHM SM |
1,004 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.5 A | 1.2A | Unshielded | 178.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
IHLP5050FDER4R7M8AIHLP-5050FD-8A 4.7 20% ER E3 |
763 | - |
|
数据表 |
IHLP-5050FD-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 19.7 A | 18.5A | Shielded | 7.93mOhm Max | - | 15.8MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
744711015FIXED IND 10UH 15A 5.7 MOHM TH |
521 | - |
|
数据表 |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 15 A | - | Unshielded | 5.7mOhm | - | 37MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.630" Dia x 1.213" L (16.00mm x 30.80mm) | - |
|
HCP0704-4R7-RFIXED IND 4.7UH 5A 29.5 MOHM SMD |
2,183 | - |
|
数据表 |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±25% | 5 A | 8A | Shielded | 29.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
74435030010FIXED IND 100NH 27A 0.00031OHM |
4,059 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±15% | 27 A | 19.1A | Shielded | 0.31mOhm | - | 83MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.197" L x 0.122" W (5.00mm x 3.10mm) | 0.118" (3.00mm) |
|
FP1008R5-R150-RFIXED IND 150NH 79A 0.17MOHM SMD |
1,993 | - |
|
数据表 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 79 A | 64A | Shielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
5900-101-RCFIXED IND 100UH 2.2A 86 MOHM TH |
1,808 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.2 A | 2.7A | Unshielded | 86mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-331-RCFIXED IND 330UH 1.2A 285 MOHM TH |
1,786 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.2 A | 1.4A | Unshielded | 285mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-104-RCFIXED IND 100MH 70MA 82 OHM TH |
1,176 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 70 mA | 83mA | Unshielded | 82Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-472-RCFIXED IND 4.7MH 340MA 3.7 OHM TH |
785 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 340 mA | 380mA | Unshielded | 3.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
7447786122FIXED IND 22UH 2A 115 MOHM SMD |
3,786 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±25% | 2 A | 1.3A | Shielded | 115mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
PA0431LNLFIXED IND 7.8UH 20.5A 5.5MOHM TH |
3,187 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 7.8 µH | ±20% | 20.5 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - |
|
7447471330FIXED IND 33UH 3.6A 61 MOHM TH |
2,991 | - |
|
数据表 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.6 A | 2.8A | Shielded | 61mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7443321000FIXED IND 10UH 9A 16.7 MOHM SMD |
1,732 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | 10A | Shielded | 16.7mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320100FIXED IND 1UH 24A 2.5 MOHM SMD |
1,339 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 24 A | 32A | Shielded | 2.5mOhm Max | - | 96MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320330FIXED IND 3.3UH 17A 5.7 MOHM SMD |
1,300 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 17 A | 17A | Shielded | 5.7mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320470FIXED IND 4.7UH 15.5A 7.9MOHM SM |
1,040 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 15.5 A | 17A | Shielded | 7.9mOhm Max | - | 43MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320680FIXED IND 6.8UH 13A 11 MOHM SMD |
822 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 13 A | 13A | Shielded | 11mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
