固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYA2016104R7M-10FIXED IND 4.7UH 900MA 425MOHM SM |
12,497 | - |
|
数据表 |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 900 mA | 1.1A | Shielded | 425mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.045" (1.15mm) |
|
NR4018T330MFIXED IND 33UH 490MA 636MOHM SMD |
10,438 | - |
|
数据表 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 490 mA | 650mA | Shielded | 636mOhm Max | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
MLP2520H4R7MT0S1FIXED IND 4.7UH 1A 169 MOHM SMD |
10,230 | - |
|
数据表 |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1 A | - | Shielded | 169mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYA2520126R8M-10FIXED IND 6.8UH 950MA 366MOHM SM |
9,193 | - |
|
数据表 |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 950 mA | 1.2A | Shielded | 366mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.053" (1.35mm) |
|
SRN4012T-6R8MFIXED IND 6.8UH 1.3A 125MOHM SMD |
8,042 | - |
|
数据表 |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | 900mA | Shielded | 125mOhm | 6 @ 100kHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LQM21PN2R2MEHDFIXED IND 2.2UH 1.1A 219MOHM SMD |
7,911 | - |
|
数据表 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.1 A | 450mA | Shielded | 219mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
TYA2520124R7M-10FIXED IND 4.7UH 1.25A 260MOHM SM |
7,678 | - |
|
数据表 |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.25 A | 1.6A | Shielded | 260mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.053" (1.35mm) |
-MCoil-MC-Series.jpg)
|
MCFK1608TR47MFIXED IND 470NH 1.9A 85 MOHM SMD |
7,636 | - |
|
数据表 |
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 1.9 A | - | Shielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|

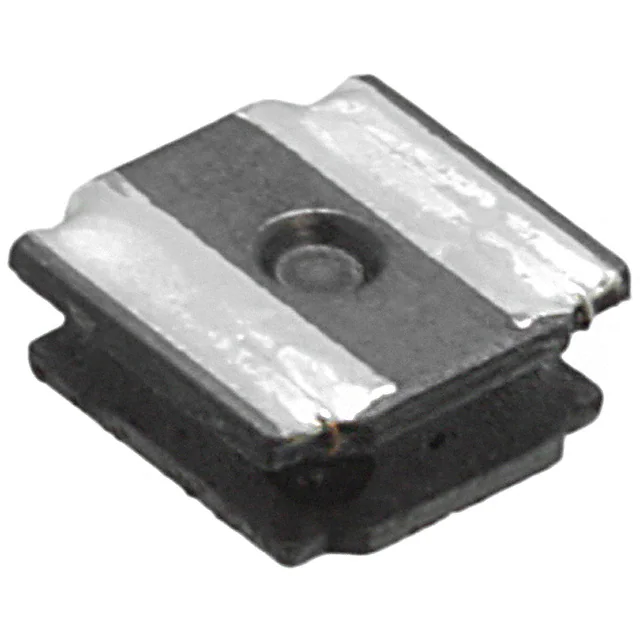

NR4018T151MFIXED IND 150UH 220MA 3 OHM SMD |
7,233 | - |
|
数据表 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 220 mA | 310mA | Shielded | 3Ohm Max | - | 5.5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
TYA201610100M-10FIXED IND 10UH 600MA 875MOHM SMD |
6,306 | - |
|
数据表 |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 600 mA | 800mA | Shielded | 875mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.045" (1.15mm) |
|
|
MLP2520V1R0ST0S1FIXED IND 1UH 1.3A 130 MOHM SMD |
6,145 | - |
|
数据表 |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.3 A | - | Shielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
NR4018T680MFIXED IND 68UH 320MA 1.2 OHM SMD |
6,138 | - |
|
数据表 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 320 mA | 470mA | Shielded | 1.2Ohm Max | - | 8.3MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
SRN2010-2R2MFIXED IND 2.2UH 1.7A 170MOHM SMD |
6,090 | - |
|
数据表 |
SRN2010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 2A | Shielded | 170mOhm Max | 14 @ 1MHz | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.040" (1.02mm) |
|
NLFV32T-150K-EFFIXED IND 15UH 140MA 360MOHM SMD |
5,360 | - |
|
数据表 |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 140 mA | - | Shielded | 360mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LSCNE2016FET1R0MCBFIXED INDUCTOR 1.0UH SMD MCOIL |
5,052 | - |
|
数据表 |
LSCN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 2.3 A | 2.8A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.026" (0.65mm) |
|
VLS3010ET-4R7MFIXED IND 4.7UH 810MA 204MOHM SM |
4,895 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 4.7 µH | ±20% | 810 mA | 810mA | Shielded | 204mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
VLS252010ET-100MFIXED IND 10UH 550MA 854MOHM SMD |
4,600 | - |
|
数据表 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 550 mA | 560mA | Shielded | 854mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
B78108S1122K000FIXED IND 1.2UH 1.15A 180MOHM TH |
4,592 | - |
|
数据表 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 1.15 A | - | Unshielded | 180mOhm Max | 55 @ 7.96MHz | 185MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
SRN2009T-R47MFIXED IND 470NH 2A 38 MOHM SMD |
4,577 | - |
|
数据表 |
SRN2009T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2 A | 2A | Shielded | 38mOhm | 25 @ 1MHz | 300MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQM21PNR24MEHDFIXED IND 240NH 2.4A 50MOHM SMD |
4,425 | - |
|
数据表 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 240 nH | ±20% | 2.4 A | 3.1A | Shielded | 50mOhm Max | - | 130MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
