固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744762222AFIXED IND 220NH 800MA 450MOHM SM |
3,125 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 800 mA | - | Unshielded | 450mOhm Max | 45 @ 100MHz | 730MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
LQM2HPNR33MGHLFIXED IND 330NH 3A 38 MOHM SMD |
3,028 | - |
|
数据表 |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±20% | 3 A | 5.3A | Shielded | 38mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
VLS5045EX-150M-CAFIXED IND 15UH 1.9A 143MOHM SMD |
2,990 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.9 A | 2.2A | Shielded | 143mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
LQM2HPN1R0MGHLFIXED IND 1UH 2.3A 63 MOHM SMD |
2,964 | - |
|
数据表 |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 2.3 A | 2A | Shielded | 63mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SDCHA1V5040-150-RIND SMD POWER 15.0UH 1.8A |
2,883 | - |
|
数据表 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 1.8 A | 2A | Shielded | 80mOhm | - | 21MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.157" (4.00mm) |
|
VLS5045EX-221M-HFIXED IND 220UH 450MA 1.365 OHM |
2,841 | - |
|
数据表 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 450 mA | 450mA | Shielded | 1.365Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
.jpg)
|
744760247AFIXED IND 470NH 500MA 950MOHM SM |
2,723 | - |
|
数据表 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 500 mA | - | Unshielded | 950mOhm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
VLS5045EX-680M-HFIXED IND 68UH 900MA 533MOHM SMD |
2,523 | - |
|
数据表 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 900 mA | 1.1A | Shielded | 533mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
|
744762115AFIXED IND 15NH 1A 80 MOHM SMD |
2,445 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

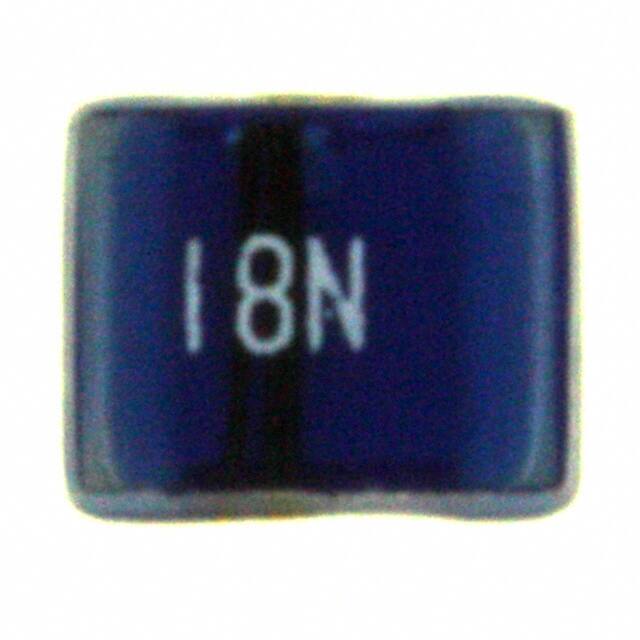

744762118AFIXED IND 18NH 1A 100 MOHM SMD |
2,339 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 60 @ 350MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
SDCHA1V5020-100-RIND SMD POWER 10.0UH 1.6A |
2,148 | - |
|
数据表 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 1.6 A | 1.7A | Shielded | 110mOhm | - | 38MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
744762356AFIXED IND 5.6UH 170MA 2.6OHM SMD |
2,090 | - |
|
数据表 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 170 mA | - | Unshielded | 2.6Ohm Max | 20 @ 7.96MHz | 42MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
LQW2BAN91NJ00LFIXED IND 91NH 1.3A 210MOHM SMD |
2,045 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 91 nH | ±5% | 1.3 A | - | Unshielded | 210mOhm Max | 70 @ 500MHz | 1.14GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
744758339AFIXED IND 3.9UH 420MA 1.5OHM SMD |
2,022 | - |
|
数据表 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 420 mA | - | Unshielded | 1.5Ohm Max | 20 @ 7.96MHz | 105MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

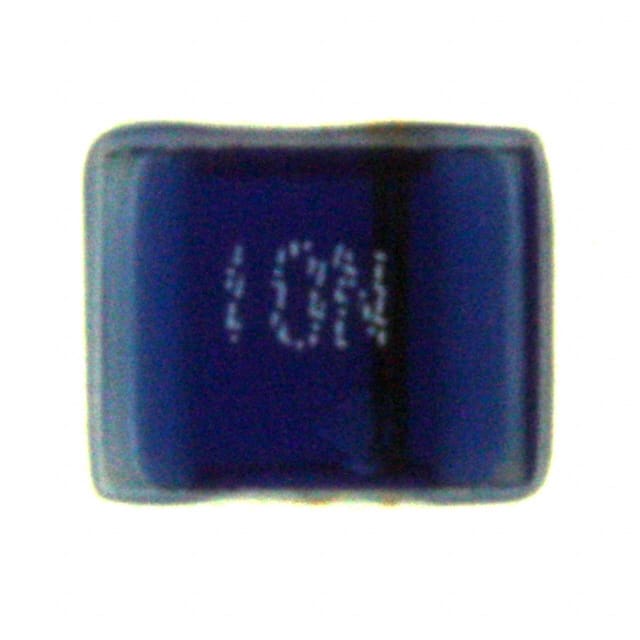

744762110AFIXED IND 10NH 1A 80 MOHM SMD |
1,905 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 50 @ 1GHz | 4.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762268AFIXED IND 680NH 230MA 2.06OHM SM |
1,787 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 230 mA | - | Unshielded | 2.06Ohm Max | 45 @ 100MHz | 380MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744758322AFIXED IND 2.2UH 520MA 1.1OHM SMD |
1,755 | - |
|
数据表 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 520 mA | - | Unshielded | 1.1Ohm Max | 20 @ 7.96MHz | 160MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762322AFIXED IND 2.2UH 200MA 2.35OHM SM |
1,699 | - |
|
数据表 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 200 mA | - | Unshielded | 2.35Ohm Max | 20 @ 7.96MHz | 160MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762418AFIXED IND 18UH 120MA 4.5 OHM SMD |
1,679 | - |
|
数据表 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 120 mA | - | Unshielded | 4.5Ohm Max | 15 @ 2.52MHz | 24MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
ASPI-6045T-2R2N-TIND 2.2UH 4.6A 18M |
1,640 | - |
|
数据表 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 4.6 A | 6.75A | Shielded | 18mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
