固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS4012ET-330MFIXED IND 33UH 470MA 804MOHM SMD |
7,899 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 470 mA | 470mA | Shielded | 804mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
.jpg)
|
B82422A1103J100FIXED IND 10UH 180MA 1.6 OHM SMD |
7,657 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 180 mA | - | Unshielded | 1.6Ohm Max | 27 @ 2.52MHz | 25MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
LQW2BAN24NG00LFIXED IND 24NH 1.4A 150MOHM SMD |
7,488 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 24 nH | ±2% | 1.4 A | - | Unshielded | 150mOhm Max | 75 @ 500MHz | 1.97GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BAN20NG00LFIXED IND 20NH 2.2A 50 MOHM SMD |
7,459 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 20 nH | ±2% | 2.2 A | - | Unshielded | 50mOhm Max | 85 @ 500MHz | 2.96GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|

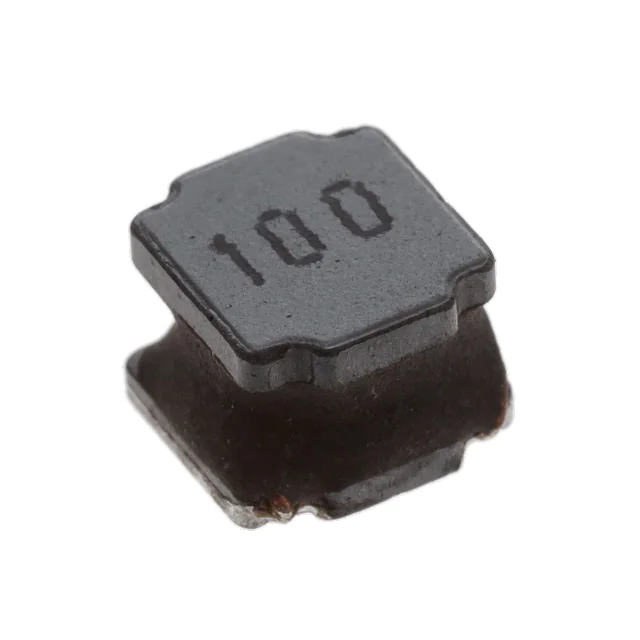

ASPI-6045T-100M-TIND 10UH 2.45A 62M |
7,355 | - |
|
数据表 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.45 A | 3.2A | Shielded | 62mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
B82422A3471K100FIXED IND 470NH 150MA 2.2OHM SMD |
5,327 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±10% | 150 mA | - | Unshielded | 2.2Ohm Max | 22 @ 30MHz | 480MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
SRN3015TA-1R0YFIXED IND 1UH 2.2A 30 MOHM SMD |
5,207 | - |
|
数据表 |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.2 A | 2.2A | Shielded | 30mOhm | 12 @ 100kHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQW2BAN43NG00LFIXED IND 43NH 1.55A 120MOHM SMD |
5,081 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 43 nH | ±2% | 1.55 A | - | Unshielded | 120mOhm Max | 75 @ 500MHz | 1.72GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
VLS2012ET-2R2M-CAFIXED IND 2.2UH 1.25A 153MOHM SM |
5,005 | - |
|
数据表 |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.25 A | 1A | Shielded | 153mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW2BAN68NG00LFIXED IND 68NH 1.25A 200MOHM SMD |
4,792 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 68 nH | ±2% | 1.25 A | - | Unshielded | 200mOhm Max | 70 @ 500MHz | 1.47GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BAN36NG00LFIXED IND 36NH 1.9A 80 MOHM SMD |
4,785 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 36 nH | ±2% | 1.9 A | - | Unshielded | 80mOhm Max | 75 @ 500MHz | 1.9GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BANR12G00LFIXED IND 120NH 970MA 380MOHM SM |
4,680 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±2% | 970 mA | - | Unshielded | 380mOhm Max | 57 @ 250MHz | 1.2GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LCXND5050WKT6R8MMGFIXED IND 6.8UH 1.65A 108MOHM SM |
4,634 | - |
|
数据表 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.65 A | 1.6A | Unshielded | 90mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
VLS201612ET-6R8M-CAFIXED IND 6.8UH 600MA 708MOHM SM |
4,628 | - |
|
数据表 |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 600 mA | 580mA | Shielded | 708mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LMLP0506M3R3DTASFIXED IND 3.3UH 5A 38 MOHM SMD |
4,463 | - |
|
数据表 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 5 A | 6A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRN3015TA-150MFIXED IND 15UH 700MA 320MOHM SMD |
3,929 | - |
|
数据表 |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 700 mA | 650mA | Shielded | 320mOhm | 12 @ 100kHz | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
CMH322522-220KLFIXED IND 22UH 110MA 3.7 OHM SMD |
3,668 | - |
|
数据表 |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 110 mA | - | Shielded | 3.7Ohm Max | 30 @ 2.52MHz | 19MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ASPI-6045T-4R7M-TIND 4.7UH 3.3A 34M |
3,600 | - |
|
数据表 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 3.3 A | 4.97A | Shielded | 34mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQW2BAN82NG00LFIXED IND 82NH 1.2A 240MOHM SMD |
3,496 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 82 nH | ±2% | 1.2 A | - | Unshielded | 240mOhm Max | 70 @ 500MHz | 1.33GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BAN11NG00LFIXED IND 11NH 2.4A 40 MOHM SMD |
3,493 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 11 nH | ±2% | 2.4 A | - | Unshielded | 40mOhm Max | 80 @ 500MHz | 4.7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
