固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1025-28KFIXED IND 2.2UH 415MA 400MOHM TH |
3,768 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±10% | 415 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-20KFIXED IND 1UH 390MA 1 OHM TH |
2,285 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 1 µH | ±10% | 390 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
DRA73-221-RFIXED IND 220UH 479MA 1.23OHM SM |
2,140 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 479 mA | 510mA | Shielded | 1.23Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
1025-48KFIXED IND 15UH 157MA 2.8 OHM TH |
1,992 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 15 µH | ±10% | 157 mA | - | Unshielded | 2.8Ohm Max | 45 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-40KFIXED IND 6.8UH 185MA 2 OHM TH |
1,888 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±10% | 185 mA | - | Unshielded | 2Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-18KFIXED IND 820NH 420MA 850MOHM TH |
1,875 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±10% | 420 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-54KFIXED IND 27UH 140MA 3.5 OHM TH |
1,606 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 27 µH | ±10% | 140 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-14KFIXED IND 560NH 550MA 500MOHM TH |
892 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 560 nH | ±10% | 550 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-30KFIXED IND 2.7UH 355MA 550MOHM TH |
874 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 2.7 µH | ±10% | 355 mA | - | Unshielded | 550mOhm Max | 37 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SNT-D20CMC 10UH 1.5A 2LN TH |
655 | - |
|
数据表 |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 10 µH | - | 1.5 A | - | Unshielded | 45mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.236" W (9.50mm x 6.00mm) | 0.500" (12.70mm) |
|
7847131100WE-RCIT ROD CORE INDUCTOR THT 10 |
582 | - |
|
数据表 |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | 10 µH | ±25% | 10 A | 13A | Unshielded | 8.8mOhm | - | 50MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.339" Dia x 1.217" L (8.60mm x 30.90mm) | - |
|
PG0936.113NLTFIXED IND 11UH 14A 7 MOHM SMD |
1,439 | - |
|
数据表 |
PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 11 µH | ±20% | 14 A | 14A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
SBC8-222-471FIXED IND 2.2MH 470MA 1.8 OHM TH |
995 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 470 mA | 780mA | Unshielded | 1.8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-391-122FIXED IND 390UH 1.2A 370 MOHM TH |
783 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1.2 A | 1.9A | Unshielded | 370mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-151-202FIXED IND 150UH 2A 150 MOHM TH |
274 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 2 A | 3A | Unshielded | 150mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|

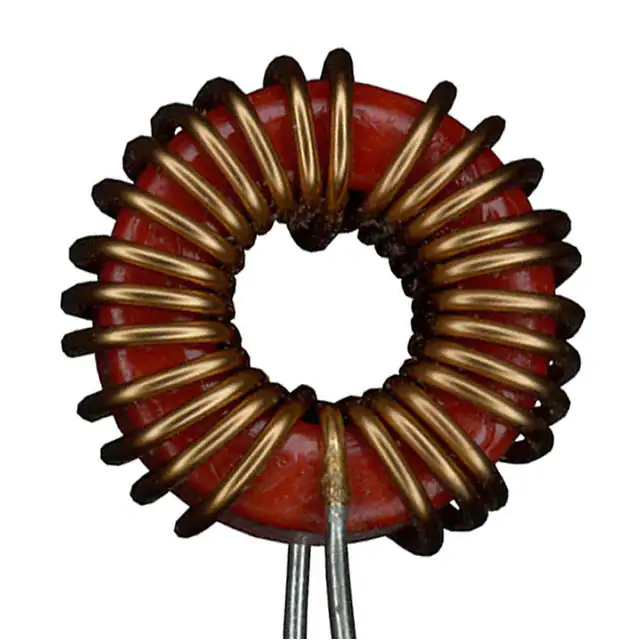

7447015FIXED IND 35UH 3A 25 MOHM TH |
193 | - |
|
数据表 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 35 µH | ±20% | 3 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.335" W (18.50mm x 8.50mm) | - |
|
|
SBC8-820-262FIXED IND 82UH 2.6A 70 MOHM TH |
188 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 2.6 A | 4.1A | Unshielded | 70mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
HCP0805-1R0-RFIXED IND 1UH 14.5A 5.8 MOHM SMD |
152 | - |
|
数据表 |
HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 14.5 A | 22A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | 0.197" (5.00mm) |
|

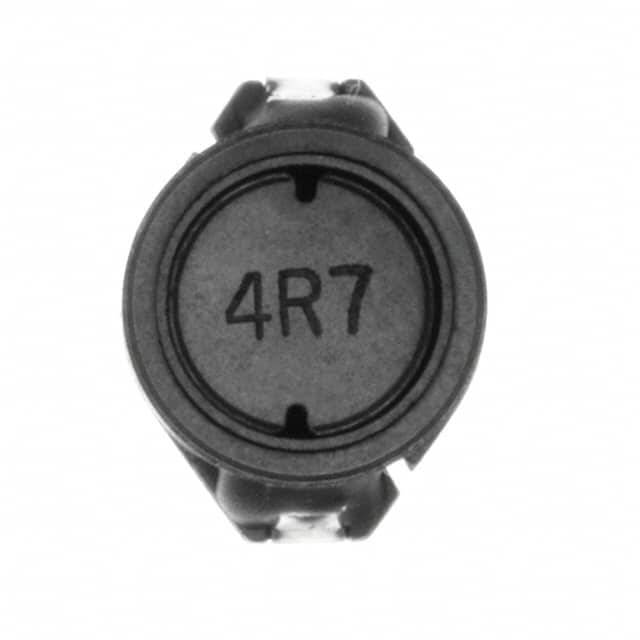

7445404FIXED IND 4.7UH 2.7A 0.04OHM SMD |
2,150 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | 2.7 A | 4.7A | Shielded | 40mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
AIUR-15-121KFIXED IND 120UH 3A 98 MOHM TH |
1,542 | - |
|
数据表 |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 3 A | - | Unshielded | 98mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
