固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-129FIXED IND 6.8UH 900MA 132MOHM SM |
194 | - |
|
数据表 |
- | Nonstandard | Bag | Not For New Designs | - | - | 6.8 µH | ±20% | 900 mA | - | Unshielded | 132mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
PA2729.603NLFIXED IND 60.3UH 5.1A 31.5 MOHM |
1,012 | - |
|
数据表 |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 60.3 µH | ±15% | 5.1 A | 6.2A | Shielded | 31.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.602NLFIXED IND 6UH 14.4A 4.4 MOHM SMD |
389 | - |
|
数据表 |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 6 µH | ±15% | 14.4 A | 19.6A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

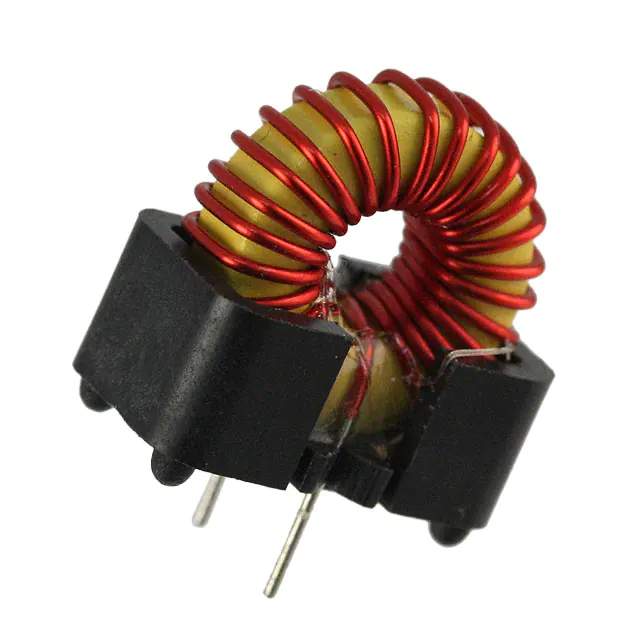

PE-92100KNLFIXED IND 25UH 2.6A 43 MOHM TH |
247 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 25 µH | ±20% | 2.6 A | - | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.650" (16.51mm) |
|

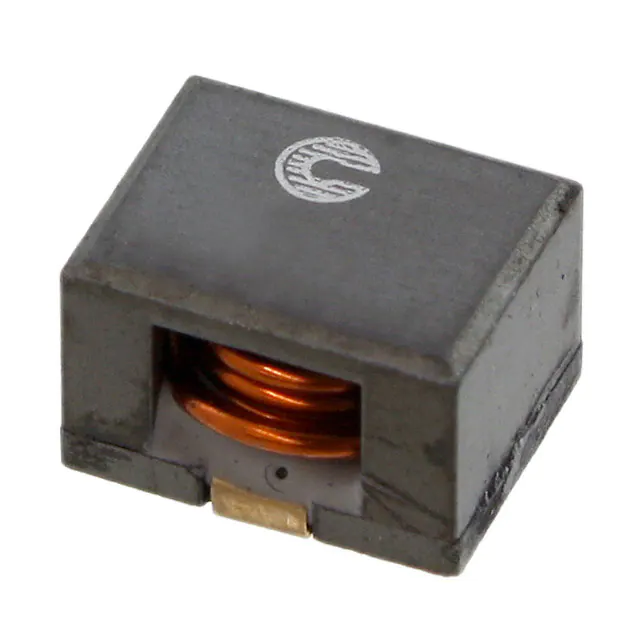

HCF1007-4R7-RFIXED IND 4.7UH 9.4A 8.65MOHM SM |
15,775 | - |
|
数据表 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.4 A | 12A | Unshielded | 8.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|
PE-53829SNLFIXED IND 112UH 1.26A 300MOHM SM |
4,233 | - |
|
数据表 |
- | Nonstandard | Tube | Active | Toroidal | - | 112 µH | ±20% | 1.26 A | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
WTH0415TR33MTR01FIXED IND 0.3320%UH 0.004OHM 145 |
2,834 | - |
|
数据表 |
WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 13.9 A | 14A | Unshielded | 4.8mOhm Max | - | 83MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
PE-53933SNLFIXED IND 24UH 2.74A 70 MOHM SMD |
940 | - |
|
数据表 |
- | Nonstandard | Bulk | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
EXL1V1010-4R7-RINDUCTOR MOLDED 4.7UH 21.4A |
315 | - |
|
数据表 |
EXL1V1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 24 A | 21.4A | Shielded | 5.7mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
|
PE-53933SNLTFIXED IND 24UH 2.74A 70 MOHM SMD |
497 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
MPCG1040LR36FIXED IND 360NH 25A 1.05MOHM SMD |
3,001 | - |
|
数据表 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 360 nH | ±20% | 25 A | 30A | Shielded | 1.05mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
P1330R-105KFIXED IND 1MH 105MA 11.16OHM SMD |
1,384 | - |
|
数据表 |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 105 mA | 22mA | Unshielded | 11.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
|
P1330R-104KFIXED IND 100UH 347MA 1.68OHM SM |
975 | - |
|
数据表 |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 347 mA | 132mA | Unshielded | 1.68Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
|
MPCG1040LR88FIXED IND 880NH 17A 2.3 MOHM SMD |
818 | - |
|
数据表 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 880 nH | ±20% | 17 A | 19A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
7687709471FIXED IND 470UH 970MA 800MOHM SM |
1,961 | - |
|
数据表 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 970 mA | 1.4A | Shielded | 800mOhm Max | - | 1.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
7447798181FIXED IND 18UH 5A 34.4 MOHM SMD |
1,274 | - |
|
数据表 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 18 µH | ±20% | 5 A | 3.8A | Shielded | 34.4mOhm Max | - | 18MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798910FIXED IND 9.1UH 7.35A 14.35 MOHM |
1,118 | - |
|
数据表 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 9.1 µH | ±30% | 7.35 A | 5.4A | Shielded | 14.35mOhm Max | - | 27MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7687709221FIXED IND 220UH 1.3A 350MOHM SMD |
932 | - |
|
数据表 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.3 A | 2A | Shielded | 350mOhm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
|
7687709222FIXED IND 2.2MH 430MA 3.7OHM SMD |
917 | - |
|
数据表 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 mH | ±20% | 430 mA | 650mA | Shielded | 3.7Ohm Max | - | 800kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
|
7447798131FIXED IND 13UH 5.85A 22.5MOHM SM |
888 | - |
|
数据表 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 13 µH | ±20% | 5.85 A | 4.5A | Shielded | 22.5mOhm Max | - | 25MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
