固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S0603-56NH1CFIXED IND 56NH 600MA 340MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 56 nH | ±3% | 600 mA | - | Unshielded | 340mOhm Max | 35 @ 200MHz | 1.9GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-68NH1CFIXED IND 68NH 600MA 370MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 68 nH | ±3% | 600 mA | - | Unshielded | 370mOhm Max | 34 @ 200MHz | 1.7GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-82NH1CFIXED IND 82NH 400MA 570MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 82 nH | ±3% | 400 mA | - | Unshielded | 570mOhm Max | 34 @ 150MHz | 1.7GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-33NH1CFIXED IND 33NH 600MA 250MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 33 nH | ±3% | 600 mA | - | Unshielded | 250mOhm Max | 37 @ 250MHz | 2.3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-39NH1CFIXED IND 39NH 600MA 280MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 39 nH | ±3% | 600 mA | - | Unshielded | 280mOhm Max | 37 @ 250MHz | 2.2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-47NH1CFIXED IND 47NH 600MA 310MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 47 nH | ±3% | 600 mA | - | Unshielded | 310mOhm Max | 35 @ 200MHz | 2GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-10NH1CFIXED IND 10NH 700MA 160MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 10 nH | ±3% | 700 mA | - | Unshielded | 160mOhm Max | 28 @ 250MHz | 4.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-15NH1CFIXED IND 15NH 700MA 200MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 15 nH | ±3% | 700 mA | - | Unshielded | 200mOhm Max | 32 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-22NH1CFIXED IND 22NH 700MA 220MOHM SMD |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 22 nH | ±3% | 700 mA | - | Unshielded | 220mOhm Max | 35 @ 250MHz | 3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-3N3H1CFIXED IND 3.3NH 700MA 100MOHM SM |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 3.3 nH | ±3% | 700 mA | - | Unshielded | 100mOhm Max | 18 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-5N6H1CFIXED IND 5.6NH 700MA 190MOHM SM |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 5.6 nH | ±3% | 700 mA | - | Unshielded | 190mOhm Max | 18 @ 250MHz | 5.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-8N2H1CFIXED IND 8.2NH 700MA 150MOHM SM |
0 | - |
|
数据表 |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 8.2 nH | ±3% | 700 mA | - | Unshielded | 150mOhm Max | 24 @ 250MHz | 4.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
195T1CHOKE, HEAVY CURRENT CHASSIS MOU |
0 | - |
|
数据表 |
195 | Nonstandard | Bulk | Active | Wirewound | - | 100 mH | ±15% | 1 A | - | Unshielded | 1.5Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 2.580" W (76.20mm x 65.53mm) | 2.500" (63.50mm) |
|
|
927T2007HIGH INDUCTANCE TOROID INDUCTOR |
0 | - |
|
数据表 |
T-Small | Radial | Bulk | Active | Toroidal | - | 2 H | ±2% | 64 mA | - | Unshielded | 125Ohm Max | - | 10MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.400" Dia (35.56mm) | 0.700" (17.78mm) |
|

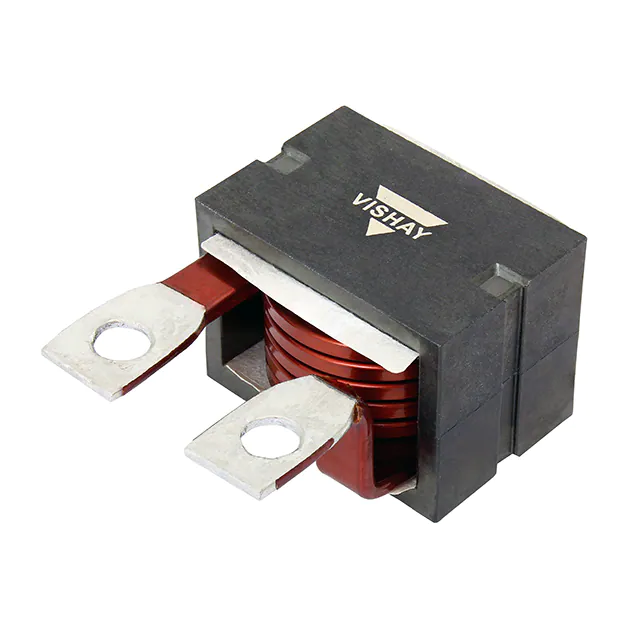

IPLA32L1R0KDFIXED IND 1UH 22A CHAS MNT |
0 | - |
|
数据表 |
IPLA 32 | Nonstandard | Bulk | Obsolete | Planar | - | 1 µH | ±10% | 22 A | 110A | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Chassis Mount | - | 1.189" L x 0.965" W (30.20mm x 24.50mm) | 0.874" (22.20mm) |
|
|
IPLA32L2R0KDFIXED IND 2UH 20A CHAS MNT |
0 | - |
|
数据表 |
IPLA 32 | Nonstandard | Bulk | Obsolete | Planar | - | 2 µH | ±10% | 20 A | 100A | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Chassis Mount | - | 1.189" L x 0.965" W (30.20mm x 24.50mm) | 0.874" (22.20mm) |
|
|
IPLA32L3R0KDFIXED IND 3UH 14A CHAS MNT |
0 | - |
|
数据表 |
IPLA 32 | Nonstandard | Bulk | Obsolete | Planar | - | 3 µH | ±10% | 14 A | 70A | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Chassis Mount | - | 1.189" L x 0.965" W (30.20mm x 24.50mm) | 0.874" (22.20mm) |
|
|
S0402-56NG1CFIXED IND 56NH 100MA 1 OHM SMD |
0 | - |
|
数据表 |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 56 nH | ±2% | 100 mA | - | Unshielded | 1Ohm Max | 21 @ 250MHz | 1.7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-68NG1CFIXED IND 68NH 100MA 1.18OHM SMD |
0 | - |
|
数据表 |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 68 nH | ±2% | 100 mA | - | Unshielded | 1.18Ohm Max | 20 @ 250MHz | 1.62GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-27NG1CFIXED IND 27NH 400MA 360MOHM SMD |
0 | - |
|
数据表 |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | 27 nH | ±2% | 400 mA | - | Unshielded | 360mOhm Max | 23 @ 250MHz | 2.48GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
