固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2200HT-331-V-RCFIXED IND 330UH 3.1A 180 MOHM TH |
418 | - |
|
数据表 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 3.1 A | - | Shielded | 180mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
2200HT-331-H-RCFIXED IND 330UH 3.1A 180 MOHM TH |
352 | - |
|
数据表 |
2200HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 3.1 A | - | Shielded | 180mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2200HT-121-V-RCFIXED IND 120UH 5A 67 MOHM TH |
347 | - |
|
数据表 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 120 µH | ±15% | 5 A | - | Shielded | 67mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-4R7-V-RCFIXED IND 4.7UH 16.9A 6 MOHM TH |
251 | - |
|
数据表 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 4.7 µH | ±15% | 16.9 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-390-V-RCFIXED IND 39UH 8.1A 26 MOHM TH |
154 | - |
|
数据表 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 39 µH | ±15% | 8.1 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-181-V-RCFIXED IND 180UH 4.6A 82 MOHM TH |
147 | - |
|
数据表 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 180 µH | ±15% | 4.6 A | - | Shielded | 82mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-102-V-RCFIXED IND 1MH 1.9A 490 MOHM TH |
138 | - |
|
数据表 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±15% | 1.9 A | - | Shielded | 490mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
P0841SNLTFIXED IND 22.8UH 4.9A 36MOHM SMD |
2,628 | - |
|
数据表 |
HCI-68 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.87mm x 23.87mm) | 0.400" (10.16mm) |
|

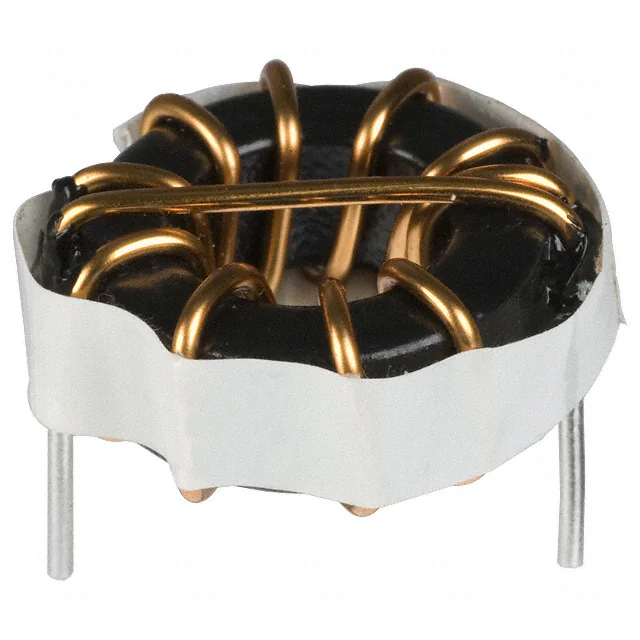

2200LL-470-H-RCFIXED IND 47UH 10.3A 12 MOHM TH |
926 | - |
|
数据表 |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 10.3 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
FIT80-3FIXED IND 80.75UH 5.7A 44.8 MOHM |
125 | - |
|
数据表 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 80.75 µH | - | 5.7 A | - | Unshielded | 44.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
.jpg)
|
IHLP7575GZERR56M51FIXED IND 560NH 61A 0.00109OHM |
158 | - |
|
数据表 |
IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 61 A | 101A | Shielded | 1.09mOhm Max | - | 50MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
|
2220-H-RCFIXED IND 470UH 2.3A 190 MOHM TH |
447 | - |
|
数据表 |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 2.3 A | - | Shielded | 190mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2224-H-RCFIXED IND 1MH 1.9A 280 MOHM TH |
112 | - |
|
数据表 |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±15% | 1.9 A | - | Shielded | 280mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|

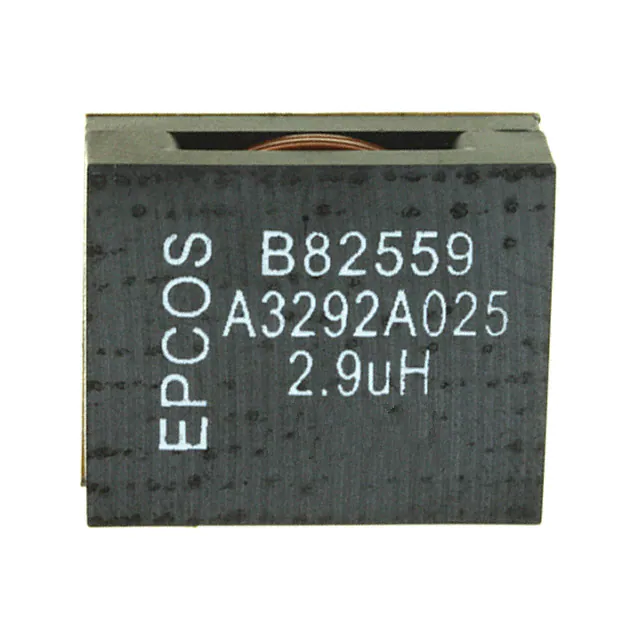

B82559A3292A025FIXED IND 2.9UH 1 MOHM SMD |
14,649 | - |
|
数据表 |
ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.9 µH | ±7% | - | 33A | Shielded | 1mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.394" (10.00mm) |
|
784325033WE-HCIA SMT FLAT WIRE HIGH CURRE |
1,565 | - |
|
数据表 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 12 A | 18A | Shielded | 5.75mOhm Max | - | 41MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
|
784325160WE-HCIA SMT FLAT WIRE HIGH CURRE |
604 | - |
|
数据表 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 16.7 µH | ±20% | 5 A | 7.8A | Shielded | 38mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
|
784325078WE-HCIA SMT FLAT WIRE HIGH CURRE |
540 | - |
|
数据表 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.8 µH | ±20% | 8 A | 12A | Shielded | 14.4mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
|
784325042WE-HCIA SMT FLAT WIRE HIGH CURRE |
480 | - |
|
数据表 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.2 µH | ±20% | 11 A | 15.7A | Shielded | 7.8mOhm Max | - | 36MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
|
784325018WE-HCIA SMT FLAT WIRE HIGH CURRE |
458 | - |
|
数据表 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 16 A | 25A | Shielded | 3.3mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
|
784325012WE-HCIA SMT FLAT WIRE HIGH CURRE |
361 | - |
|
数据表 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 20 A | 30A | Shielded | 2.04mOhm Max | - | 76MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
