固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

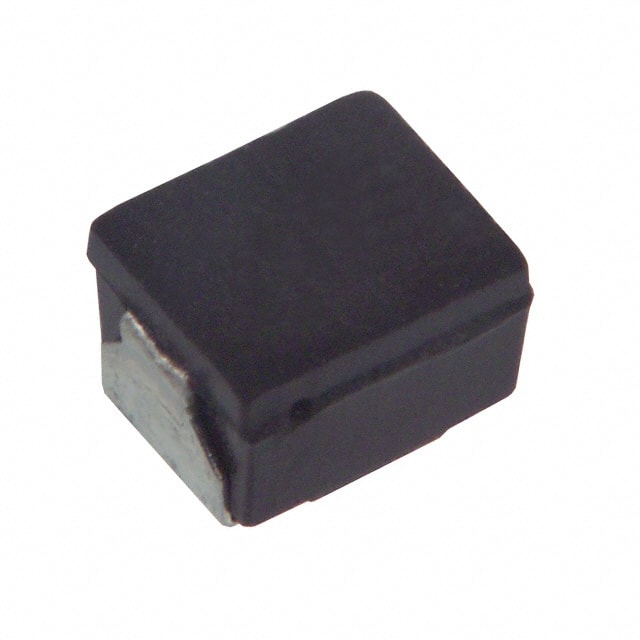

ELJ-SA181KFFIXED IND 180UH 5MA 11 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 180 µH | ±10% | 5 mA | - | Shielded | 11Ohm Max | 40 @ 1.5MHz | 5MHz | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-SA271KFFIXED IND 270UH 5MA 14 OHM SMD |
0 | - |
|
数据表 |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 270 µH | ±10% | 5 mA | - | Shielded | 14Ohm Max | 40 @ 1.5MHz | 4MHz | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
5900-5R6FIXED IND 5.6UH 5.4A 15 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 5.4 A | 11.8A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-6R8FIXED IND 6.8UH 5.2A 16 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 5.2 A | 10.8A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-8R2FIXED IND 8.2UH 5A 17 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 5 A | 10A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-120FIXED IND 12UH 4.6A 21 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 4.6 A | 8.1A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-150FIXED IND 15UH 4.2A 25 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 4.2 A | 6.8A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-180FIXED IND 18UH 4A 27 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 4 A | 6.2A | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-390FIXED IND 39UH 3.3A 39 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 3.3 A | 4.3A | Unshielded | 39mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-121FIXED IND 120UH 2.1A 97 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 2.1 A | 2.4A | Unshielded | 97mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-271FIXED IND 270UH 1.4A 210 MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.4 A | 1.6A | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-821FIXED IND 820UH 850MA 580MOHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 850 mA | 920mA | Unshielded | 580mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-152FIXED IND 1.5MH 560MA 1.33OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 560 mA | 680mA | Unshielded | 1.33Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-182FIXED IND 1.8MH 530MA 1.5 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 530 mA | 620mA | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-272FIXED IND 2.7MH 410MA 2.5 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 410 mA | 510mA | Unshielded | 2.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-332FIXED IND 3.3MH 390MA 2.8 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 390 mA | 460mA | Unshielded | 2.8Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-682FIXED IND 6.8MH 280MA 5.4 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 280 mA | 320mA | Unshielded | 5.4Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-822FIXED IND 8.2MH 260MA 6 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 260 mA | 290mA | Unshielded | 6Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-153FIXED IND 15MH 190MA 11.5 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 190 mA | 210mA | Unshielded | 11.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-183FIXED IND 18MH 170MA 14 OHM TH |
0 | - |
|
数据表 |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 170 mA | 200mA | Unshielded | 14Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
