固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-PA120KFFIXED IND 12UH 230MA 600MOHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 230 mA | - | Unshielded | 600mOhm Max | 15 @ 2.52MHz | 21MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA150KFFIXED IND 15UH 220MA 740MOHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 220 mA | - | Unshielded | 740mOhm Max | 15 @ 2.52MHz | 18MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA180KFFIXED IND 18UH 205MA 900MOHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 205 mA | - | Unshielded | 900mOhm Max | 15 @ 2.52MHz | 17MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA270KFFIXED IND 27UH 165MA 1.45OHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 165 mA | - | Unshielded | 1.45Ohm Max | 15 @ 2.52MHz | 13MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA330KFFIXED IND 33UH 155MA 1.65OHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 155 mA | - | Unshielded | 1.65Ohm Max | 15 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA560KFFIXED IND 56UH 110MA 3.3 OHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 110 mA | - | Unshielded | 3.3Ohm Max | 15 @ 2.52MHz | 8.5MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA680KFFIXED IND 68UH 105MA 3.7 OHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 105 mA | - | Unshielded | 3.7Ohm Max | 15 @ 2.52MHz | 7.5MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA101KFFIXED IND 100UH 90MA 5 OHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 90 mA | - | Unshielded | 5Ohm Max | 20 @ 796kHz | 6.5MHz | - | -20°C ~ 85°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA121KFFIXED IND 120UH 75MA 7 OHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 75 mA | - | Unshielded | 7Ohm Max | 20 @ 796kHz | 6MHz | - | -20°C ~ 85°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA151KFFIXED IND 150UH 70MA 8 OHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 70 mA | - | Unshielded | 8Ohm Max | 20 @ 796kHz | 5.5MHz | - | -20°C ~ 85°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-PA221KFFIXED IND 220UH 60MA 11 OHM SMD |
0 | - |
|
数据表 |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 60 mA | - | Unshielded | 11Ohm Max | 20 @ 796kHz | 4MHz | - | -20°C ~ 85°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
SKC-103FIXED IND 100UH 5A 17.5 MOHM TH |
0 | - |
|
- |
SKC | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | - | - | 100 µH | ±20% | 5 A | - | Unshielded | 17.5mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.260" Dia (32.00mm) | 0.709" (18.00mm) |
|
ELC-18B330LFIXED IND 33UH 4.6A 30 MOHM TH |
0 | - |
|
数据表 |
18B | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 4.6 A | - | Unshielded | 30mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.787" Dia (20.00mm) | 1.063" (27.00mm) |
|

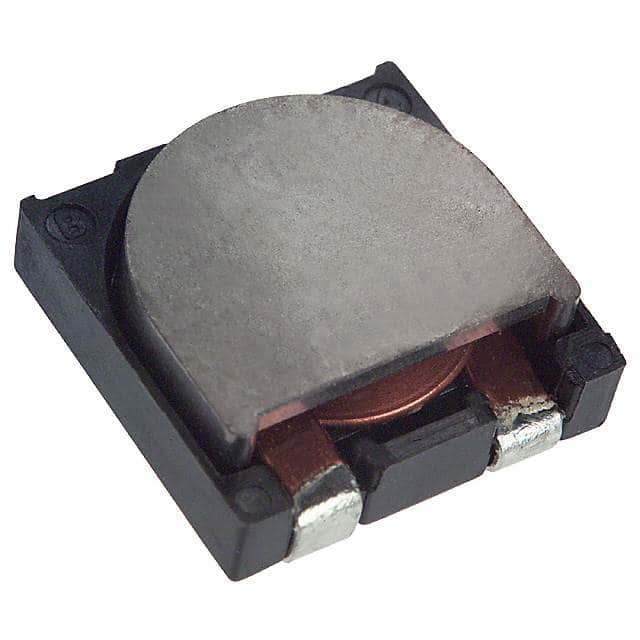

ETQ-P2H0R7BFAFIXED IND 690NH 21A 1.3 MOHM SMD |
0 | - |
|
数据表 |
PCC-D125H (NX2) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 690 nH | ±20% | 21 A | - | Shielded | 1.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
|
ETQ-P2H1R2BFAFIXED IND 1.22UH 16A 2.27MOHM SM |
0 | - |
|
数据表 |
PCC-D125H (NX2) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.22 µH | ±20% | 16 A | - | Shielded | 2.27mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
|
ETQ-P2H1R8BFAFIXED IND 1.83UH 14A 3.48MOHM SM |
0 | - |
|
数据表 |
PCC-D125H (NX2) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.83 µH | ±20% | 14 A | - | Shielded | 3.48mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
ETQ-P3H1R4BFAFIXED IND 1.43UH 12A 4.52 MOHM |
0 | - |
|
数据表 |
PCC-D124H (NX1) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.43 µH | ±20% | 12 A | - | Shielded | 4.52mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.154" (3.90mm) |
|
PM1812-R12KFIXED IND 120NH 770MA 200MOHM SM |
0 | - |
|
数据表 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 120 nH | ±10% | 770 mA | - | Unshielded | 200mOhm Max | 35 @ 25.2MHz | 280MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
PM1812-R18KFIXED IND 180NH 700MA 240MOHM SM |
0 | - |
|
数据表 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 180 nH | ±10% | 700 mA | - | Unshielded | 240mOhm Max | 35 @ 25.2MHz | 220MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
PM1812-R47KFIXED IND 470NH 545MA 320MOHM SM |
0 | - |
|
数据表 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 nH | ±10% | 545 mA | - | Unshielded | 320mOhm Max | 40 @ 25.2MHz | 145MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
