固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

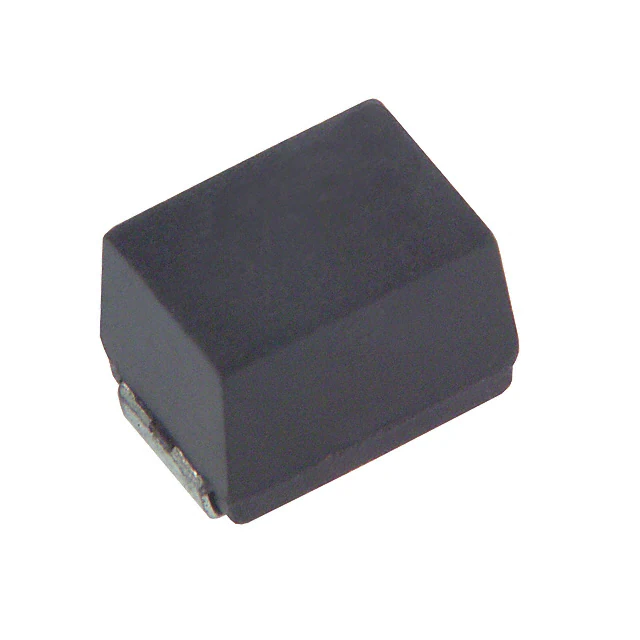

ELJ-PB180KFFIXED IND 18UH 310MA 900MOHM SMD |
0 | - |
|
数据表 |
PB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±10% | 310 mA | - | Unshielded | 900mOhm Max | 10 @ 2.52MHz | 14MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

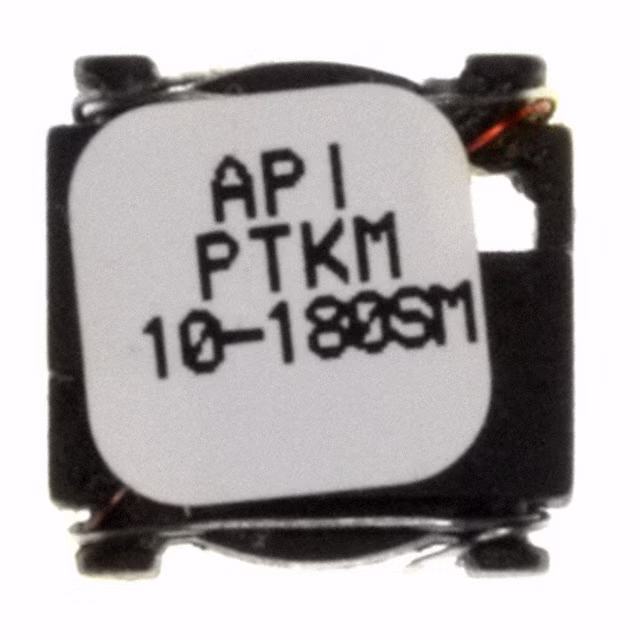

PTKM10-180SMFIXED IND 10UH 1.6A 100 MOHM SMD |
0 | - |
|
数据表 |
PTKM-SM | Nonstandard | Bulk | Active | Toroidal | Ferrite | 10 µH | ±10% | 1.6 A | 430mA | Shielded | 100mOhm Max | - | 35MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
PTKM25-180SMFIXED IND 25UH 1.33A 150MOHM SMD |
0 | - |
|
数据表 |
PTKM-SM | Nonstandard | Bulk | Active | Toroidal | Ferrite | 25 µH | ±10% | 1.33 A | 250mA | Shielded | 150mOhm Max | - | 30MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
|
PM125S-150MFIXED IND 15UH 2.45A 60 MOHM SMD |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.45 A | 3.68A | Shielded | 60mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
CDEP134-0R6NC-HFIXED IND 660NH 17A 2.5 MOHM SMD |
0 | - |
|
数据表 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 660 nH | ±30% | 17 A | 29A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-1R2MC-HFIXED IND 1.2UH 15A 3.7 MOHM SMD |
0 | - |
|
数据表 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 15 A | 21A | Shielded | 3.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-0R4NCFIXED IND 400NH 18.5A 1.9MOHM SM |
0 | - |
|
数据表 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 400 nH | ±30% | 18.5 A | 32A | Shielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
CDEP134-0R9MCFIXED IND 900NH 17A 2.5 MOHM SMD |
0 | - |
|
数据表 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 900 nH | ±20% | 17 A | 21.6A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
CEP125-1R0MC-HFIXED IND 1UH 16.5A 2.5 MOHM SMD |
0 | - |
|
数据表 |
CEP125 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 16.5 A | 20A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
ELC-18B331LFIXED IND 330UH 1.9A 130 MOHM TH |
0 | - |
|
数据表 |
18B | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.9 A | - | Unshielded | 130mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.787" Dia (20.00mm) | 1.063" (27.00mm) |
|
|
4606FIXED IND 2.4UH 1.5A 190 MOHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 2.4 µH | ±10% | 1.5 A | - | Unshielded | 190mOhm Max | 56 @ 7.96MHz | 120MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.875" L (6.86mm x 22.22mm) | - |
|
|
4610FIXED IND 6.2UH 700MA 830MOHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 6.2 µH | ±10% | 700 mA | - | Unshielded | 830mOhm Max | 57 @ 7.96MHz | 76MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.875" L (6.86mm x 22.22mm) | - |
|
|
4611FIXED IND 8.2UH 600MA 1.2 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 8.2 µH | ±10% | 600 mA | - | Unshielded | 1.2Ohm Max | 57 @ 7.96MHz | 65MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.875" L (6.86mm x 22.22mm) | - |
|
4632FIXED IND 100UH 400MA 3 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 100 µH | ±5% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4651FIXED IND 750UH 160MA 16 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 750 µH | ±5% | 160 mA | - | Unshielded | 16Ohm Max | 56 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
|
4671FIXED IND 8.2MH 100MA 46 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 8.2 mH | ±5% | 100 mA | - | Unshielded | 46Ohm Max | 83 @ 252kHz | 940kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) | - |
|
|
4672FIXED IND 10MH 100MA 50 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 10 mH | ±5% | 100 mA | - | Unshielded | 50Ohm Max | 68 @ 79.6kHz | 820kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.590" Dia x 0.875" L (14.99mm x 22.22mm) | - |
|
|
3500-100KFIXED IND 10UH 1A 120 MOHM TH |
0 | - |
|
数据表 |
3500 | Radial | Bulk | Obsolete | - | Ferrite | 10 µH | ±10% | 1 A | 2.1A | Unshielded | 120mOhm Max | 31 @ 7.96MHz | - | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.385" L x 0.150" W (9.78mm x 3.81mm) | 0.300" (7.62mm) |
|
|
3500-181KFIXED IND 180UH 250MA 2.07OHM TH |
0 | - |
|
数据表 |
3500 | Radial | Bulk | Obsolete | - | Ferrite | 180 µH | ±10% | 250 mA | 560mA | Unshielded | 2.07Ohm Max | 75 @ 796kHz | - | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.385" L x 0.150" W (9.78mm x 3.81mm) | 0.300" (7.62mm) |
|
|
3500-2R7MFIXED IND 2.7UH 2.2A 28 MOHM TH |
0 | - |
|
数据表 |
3500 | Radial | Bulk | Obsolete | - | Ferrite | 2.7 µH | ±20% | 2.2 A | 4A | Unshielded | 28mOhm Max | 43 @ 7.96MHz | - | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.385" L x 0.150" W (9.78mm x 3.81mm) | 0.300" (7.62mm) |
