固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDR125-120MCFIXED IND 12UH 2.5A 50 MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 12 µH | ±20% | 2.5 A | - | Shielded | 50mOhm Max | - | 21.2MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-150MCFIXED IND 15UH 2.45A 60 MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 2.45 A | - | Shielded | 60mOhm Max | - | 18.9MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-180MCFIXED IND 18UH 2.4A 60 MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 18 µH | ±20% | 2.4 A | - | Shielded | 60mOhm Max | - | 16.1MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|

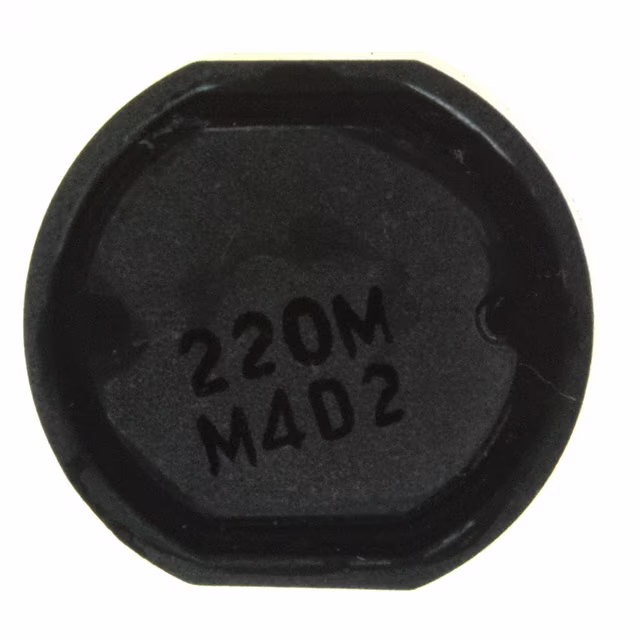

CDR125-220MCFIXED IND 22UH 2.2A 70 MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | -15%, +20% | 2.2 A | - | Shielded | 70mOhm Max | - | 15.2MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-270MCFIXED IND 27UH 2A 80 MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 27 µH | -15%, +20% | 2 A | - | Shielded | 80mOhm Max | - | 13.9MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-390MCFIXED IND 39UH 1.65A 110MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 39 µH | -15%, +20% | 1.65 A | - | Shielded | 110mOhm Max | - | 11.6MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-470MCFIXED IND 47UH 1.5A 120 MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | -15%, +20% | 1.5 A | - | Shielded | 120mOhm Max | - | 10.4MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-560MCFIXED IND 56UH 1.38A 150MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 56 µH | -15%, +20% | 1.38 A | - | Shielded | 150mOhm Max | - | 9.12MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-820MCFIXED IND 82UH 1.14A 200MOHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 82 µH | -15%, +20% | 1.14 A | - | Shielded | 200mOhm Max | - | 7.85MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-101MCFIXED IND 100UH 1.05A 250MOHM SM |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 100 µH | -15%, +20% | 1.05 A | - | Shielded | 250mOhm Max | - | 6.92MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-151MCFIXED IND 150UH 850MA 400MOHM SM |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 150 µH | -15%, +20% | 850 mA | - | Shielded | 400mOhm Max | - | 5.55MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-181MCFIXED IND 180UH 770MA 480MOHM SM |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 180 µH | -15%, +20% | 770 mA | - | Shielded | 480mOhm Max | - | 5.1MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-271MCFIXED IND 270UH 630MA 700MOHM SM |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 270 µH | -15%, +20% | 630 mA | - | Shielded | 700mOhm Max | - | 4.37MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-331MCFIXED IND 330UH 570MA 800MOHM SM |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 µH | -15%, +20% | 570 mA | - | Shielded | 800mOhm Max | - | 3.9MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-391MCFIXED IND 390UH 520MA 1.08OHM SM |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 390 µH | -15%, +20% | 520 mA | - | Shielded | 1.08Ohm Max | - | 3.55MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-561MCFIXED IND 560UH 440MA 1.34OHM SM |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 560 µH | -15%, +20% | 440 mA | - | Shielded | 1.34Ohm Max | - | 2.94MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-681MCFIXED IND 680UH 400MA 1.78OHM SM |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 µH | -15%, +20% | 400 mA | - | Shielded | 1.78Ohm Max | - | 2.64MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125-821MCFIXED IND 820UH 360MA 2 OHM SMD |
0 | - |
|
数据表 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 820 µH | -15%, +20% | 360 mA | - | Shielded | 2Ohm Max | - | 2.42MHz | - | -25°C ~ 70°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
CDRH125-1R3NCFIXED IND 1.3UH 8A 12 MOHM SMD |
0 | - |
|
数据表 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.3 µH | -20%, +30% | 8 A | - | Shielded | 12mOhm Max | - | - | - | -25°C ~ 80°C | 7.96 MHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125-2R1NCFIXED IND 2.1UH 7A 14 MOHM SMD |
0 | - |
|
数据表 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.1 µH | -20%, +30% | 7 A | - | Shielded | 14mOhm Max | - | - | - | -25°C ~ 80°C | 7.96 MHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
