固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPD125-123MFIXED IND 12UH 3.5A 60 MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 12 µH | ±20% | 3.5 A | 3.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-124MFIXED IND 120UH 1.1A 250MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 120 µH | ±20% | 1.1 A | 1.1A | Shielded | 250mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-153MFIXED IND 15UH 3.3A 65 MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 15 µH | ±20% | 3.3 A | 3.3A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-154MFIXED IND 150UH 1A 300 MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 150 µH | ±20% | 1 A | 1A | Shielded | 300mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-183MFIXED IND 18UH 3A 70 MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 18 µH | ±20% | 3 A | 3A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-223MFIXED IND 22UH 2.8A 75 MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 22 µH | ±20% | 2.8 A | 2.8A | Shielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-224MFIXED IND 220UH 800MA 420MOHM SM |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 220 µH | ±20% | 800 mA | 800mA | Shielded | 420mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-393MFIXED IND 39UH 2A 105 MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 39 µH | ±20% | 2 A | 2A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-394MFIXED IND 390UH 650MA 750MOHM SM |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 390 µH | ±20% | 650 mA | 650mA | Shielded | 750mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-474MFIXED IND 470UH 600MA 820MOHM SM |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 µH | ±20% | 600 mA | 600mA | Shielded | 820mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-563MFIXED IND 56UH 1.6A 135 MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 56 µH | ±20% | 1.6 A | 1.6A | Shielded | 135mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-564MFIXED IND 560UH 550MA 1 OHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 560 µH | ±20% | 550 mA | 550mA | Shielded | 1Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-684MFIXED IND 680UH 500MA 1.3OHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 680 µH | ±20% | 500 mA | 500mA | Shielded | 1.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-823MFIXED IND 82UH 1.4A 190 MOHM SMD |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 82 µH | ±20% | 1.4 A | 1.4A | Shielded | 190mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125-824MFIXED IND 820UH 450MA 1.65OHM SM |
0 | - |
|
数据表 |
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 820 µH | ±20% | 450 mA | - | Shielded | 1.65Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

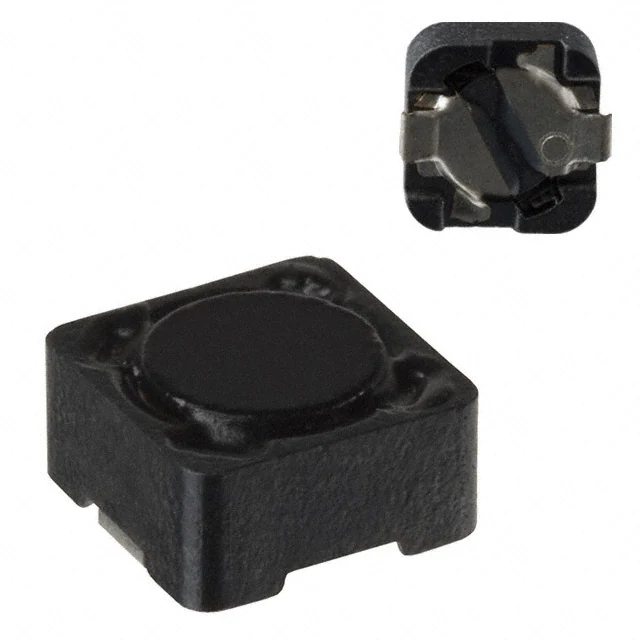

SPD73-103MFIXED IND 10UH 1.86A 67 MOHM SMD |
0 | - |
|
数据表 |
SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.86 A | 1.86A | Shielded | 67mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-104MFIXED IND 100UH 541MA 790MOHM SM |
0 | - |
|
数据表 |
SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 541 mA | 541mA | Shielded | 790mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-105MFIXED IND 1MH 156MA 9.44 OHM SMD |
0 | - |
|
数据表 |
SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 156 mA | 156mA | Shielded | 9.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-122MFIXED IND 1.2UH 3.4A 20 MOHM SMD |
0 | - |
|
数据表 |
SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 3.4 A | 3.4A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73-123MFIXED IND 12UH 1.7A 80 MOHM SMD |
0 | - |
|
数据表 |
SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.7 A | 1.7A | Shielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
