固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78108T1223K009FIXED IND 22UH 170MA 3.2 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 170 mA | - | Unshielded | 3.2Ohm Max | 60 @ 2.52MHz | 30MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
B78108T1103K000FIXED IND 10UH 230MA 1.7 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 230 mA | - | Unshielded | 1.7Ohm Max | 50 @ 7.96MHz | 60MHz | - | - | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1102K000FIXED IND 1UH 630MA 250 MOHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 630 mA | - | Unshielded | 250mOhm Max | 35 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
B78108T1104K000FIXED IND 100UH 85MA 12.5 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 85 mA | - | Unshielded | 12.5Ohm Max | 60 @ 2.52MHz | 11MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1103K009FIXED IND 10UH 230MA 1.7 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 230 mA | - | Unshielded | 1.7Ohm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1122K000FIXED IND 1.2UH 610MA 250MOHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 610 mA | - | Unshielded | 250mOhm Max | 40 @ 7.96MHz | 170MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
B78108T1223K000FIXED IND 22UH 170MA 3.2 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 170 mA | - | Unshielded | 3.2Ohm Max | 60 @ 2.52MHz | 30MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1182K000FIXED IND 1.8UH 540MA 300MOHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 540 mA | - | Unshielded | 300mOhm Max | 40 @ 7.96MHz | 130MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
B78108T1222K000FIXED IND 2.2UH 520MA 350MOHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 520 mA | - | Unshielded | 350mOhm Max | 40 @ 7.96MHz | 120MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
B78108T1183K000FIXED IND 18UH 175MA 2.9 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 175 mA | - | Unshielded | 2.9Ohm Max | 55 @ 2.52MHz | 40MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1153K000FIXED IND 15UH 185MA 2.7 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 185 mA | - | Unshielded | 2.7Ohm Max | 55 @ 2.52MHz | 45MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
B78108T1152K000FIXED IND 1.5UH 570MA 300MOHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 570 mA | - | Unshielded | 300mOhm Max | 40 @ 7.96MHz | 150MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1123K009FIXED IND 12UH 190MA 2.4 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 190 mA | - | Unshielded | 2.4Ohm Max | 55 @ 2.52MHz | 50MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1123K000FIXED IND 12UH 190MA 2.4 OHM TH |
0 | - |
|
数据表 |
MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 190 mA | - | Unshielded | 2.4Ohm Max | 55 @ 2.52MHz | 50MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|

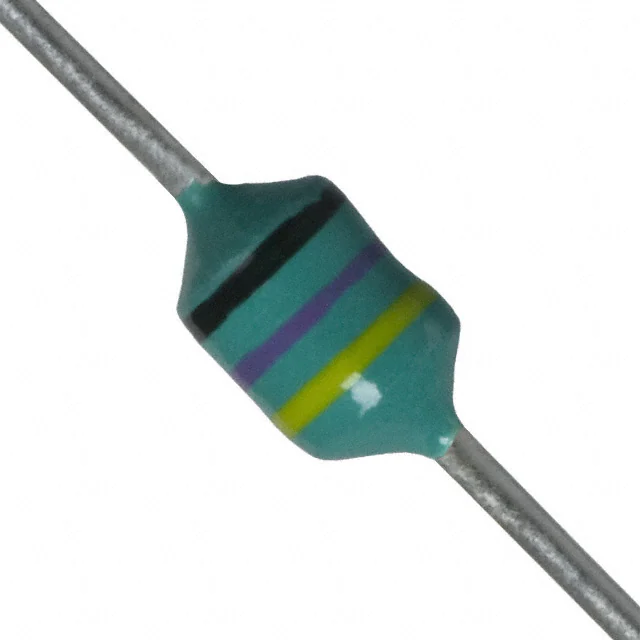

79F470KFIXED IND 47UH 70MA 5.8 OHM TH |
0 | - |
|
数据表 |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 70 mA | - | Unshielded | 5.8Ohm Max | 40 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
ELL-CTV5R6NFIXED IND 5.6UH 4.9A 11 MOHM SMD |
0 | - |
|
数据表 |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 4.9 A | - | Shielded | 11mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
CD1-100-RFIXED IND 10UH 4A 35 MOHM SMD |
0 | - |
|
数据表 |
CD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4 A | 4.4A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.409" W (10.50mm x 10.40mm) | 0.157" (4.00mm) |
|
|
CD1-101-RFIXED IND 100UH 1.36A 304MOHM SM |
0 | - |
|
数据表 |
CD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.36 A | 1.35A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.409" W (10.50mm x 10.40mm) | 0.157" (4.00mm) |
|
|
CD1-150-RFIXED IND 15UH 3.35A 50 MOHM SMD |
0 | - |
|
数据表 |
CD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.35 A | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.409" W (10.50mm x 10.40mm) | 0.157" (4.00mm) |
|
|
CD1-1R5-RFIXED IND 1.5UH 8.3A 8.1MOHM SMD |
0 | - |
|
数据表 |
CD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.3 A | 10A | Shielded | 8.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.409" W (10.50mm x 10.40mm) | 0.157" (4.00mm) |
