固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

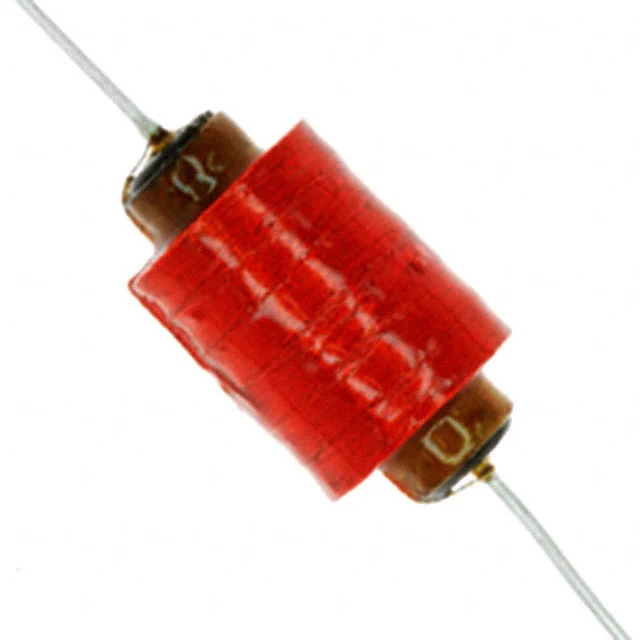

70F221AF-RCFIXED IND 220MH 39MA 424 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 mH | ±5% | 39 mA | - | Unshielded | 424Ohm Max | 51 @ 25kHz | 70kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.540" Dia x 0.880" L (13.72mm x 22.35mm) | - |
|

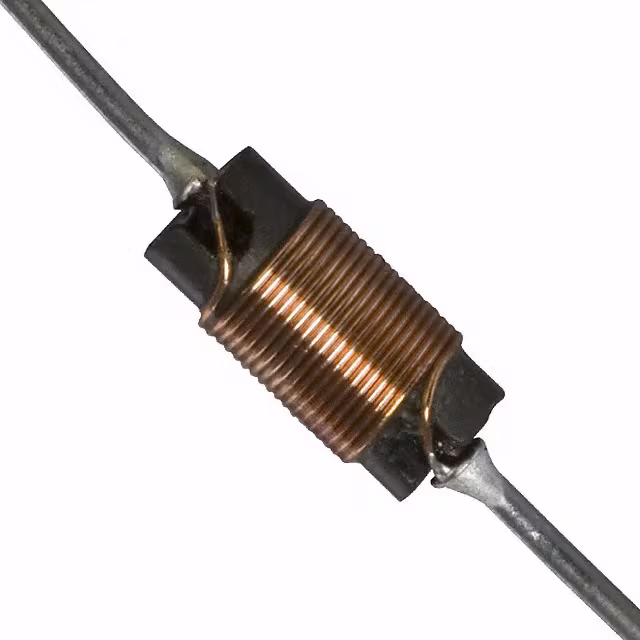

70F226AI-RCFIXED IND 2.2UH 1.132A 156MOHM |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.2 µH | ±10% | 1.132 A | - | Unshielded | 156mOhm Max | 43 @ 7.9MHz | 87MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

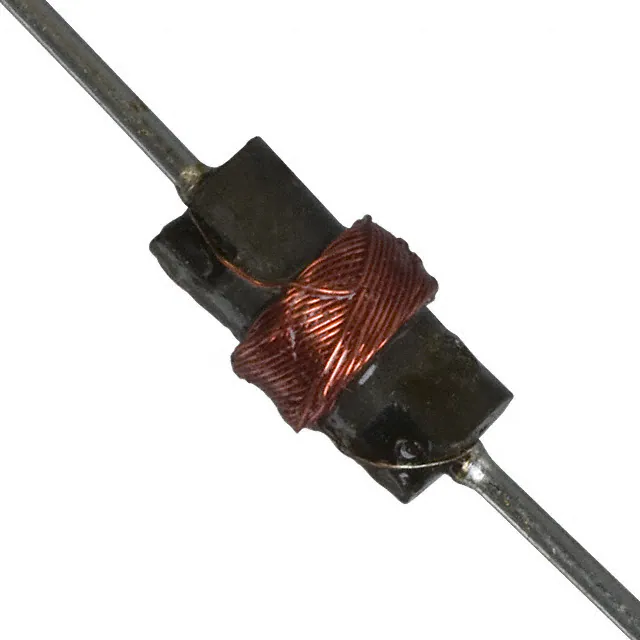

70F335AI-RCFIXED IND 33UH 208MA 2.76 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 33 µH | ±5% | 208 mA | - | Unshielded | 2.76Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|

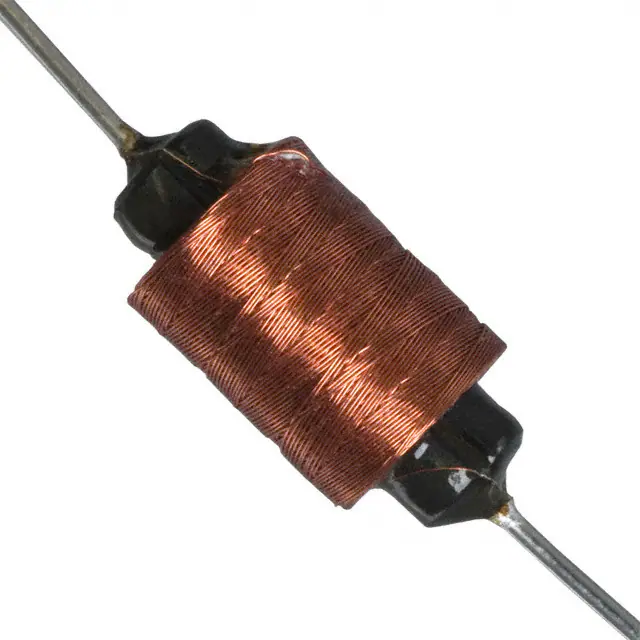

70F332AF-RCFIXED IND 33MH 43MA 134 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 mH | ±5% | 43 mA | - | Unshielded | 134Ohm Max | 61 @ 79kHz | 232kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - |
|

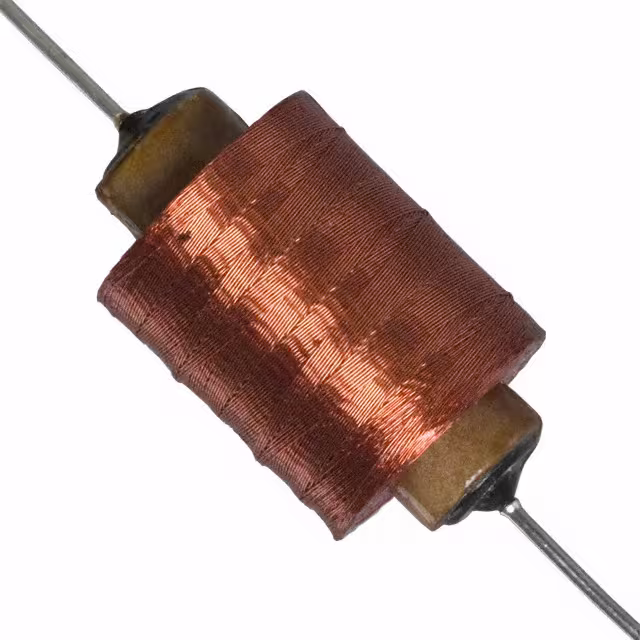

70F331AF-RCFIXED IND 330MH 34MA 540 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 mH | ±5% | 34 mA | - | Unshielded | 540Ohm Max | 54 @ 25kHz | 60kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.580" Dia x 0.880" L (14.73mm x 22.35mm) | - |
|
70F336AI-RCFIXED IND 3.3UH 912MA 240MOHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 3.3 µH | ±10% | 912 mA | - | Unshielded | 240mOhm Max | 40 @ 7.9MHz | 66MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|

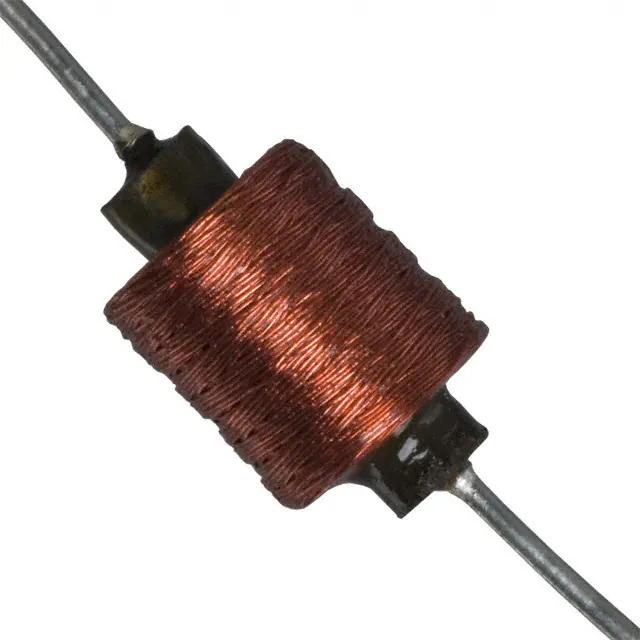

70F473AI-RCFIXED IND 4.7MH 48MA 64.8 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 4.7 mH | ±5% | 48 mA | - | Unshielded | 64.8Ohm Max | 49 @ 250kHz | 680kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.280" Dia x 0.380" L (7.11mm x 9.65mm) | - |
|

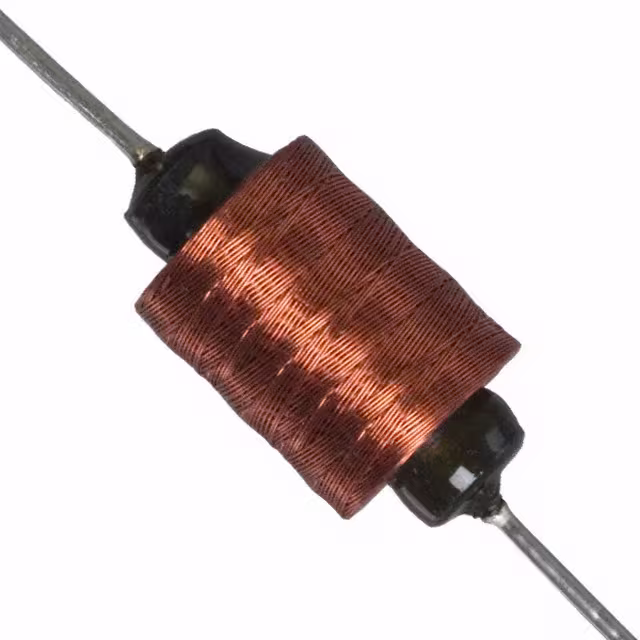

70F472AF-RCFIXED IND 47MH 38MA 168 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±5% | 38 mA | - | Unshielded | 168Ohm Max | 57 @ 79kHz | 206kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.380" Dia x 0.630" L (9.65mm x 16.00mm) | - |
|

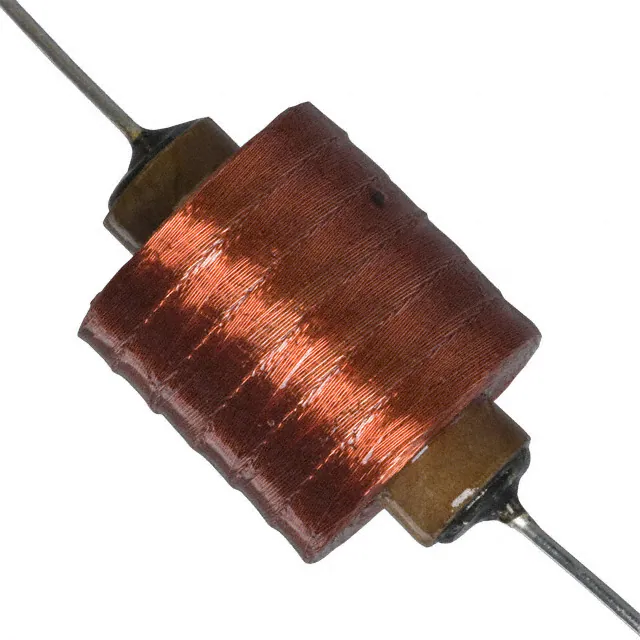

70F471AF-RCFIXED IND 470MH 30MA 704 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 mH | ±5% | 30 mA | - | Unshielded | 704Ohm Max | 55 @ 25kHz | 54kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.610" Dia x 0.880" L (15.49mm x 22.35mm) | - |
|
70F476AI-RCFIXED IND 4.7UH 661MA 457MOHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 4.7 µH | ±10% | 661 mA | - | Unshielded | 457mOhm Max | 43 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|

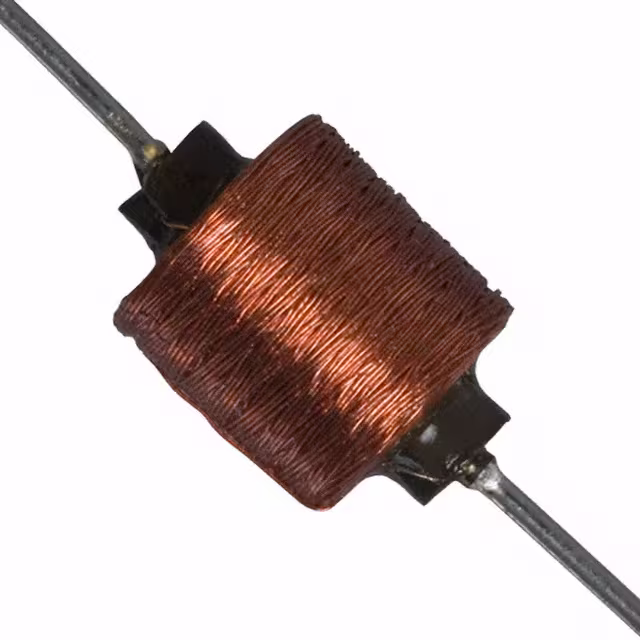

70F683AI-RCFIXED IND 6.8MH 43MA 78 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 6.8 mH | ±5% | 43 mA | - | Unshielded | 78Ohm Max | 51 @ 250kHz | 640kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | - |
|

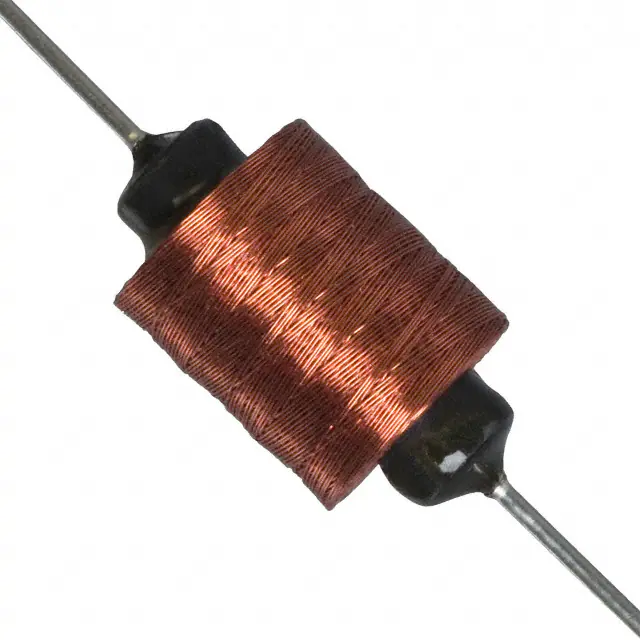

70F682AF-RCFIXED IND 68MH 34MA 215 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 mH | ±5% | 34 mA | - | Unshielded | 215Ohm Max | 57 @ 79kHz | 180kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.410" Dia x 0.630" L (10.41mm x 16.00mm) | - |
|

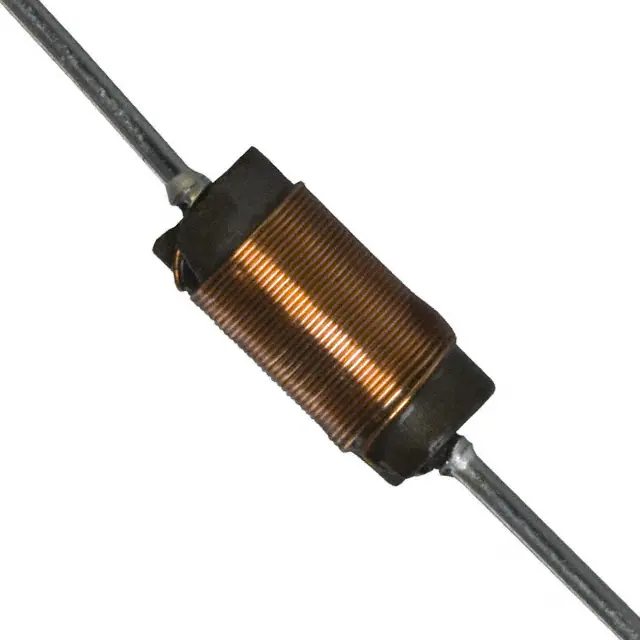

70F686AI-RCFIXED IND 6.8UH 566MA 624MOHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 6.8 µH | ±10% | 566 mA | - | Unshielded | 624mOhm Max | 40 @ 7.9MHz | 49MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|
PM3308-100M-RCFIXED IND 10UH 2A 110 MOHM SMD |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2 A | 2.4A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-220M-RCFIXED IND 22UH 1.3A 230 MOHM SMD |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.3 A | 1.6A | Unshielded | 230mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-330M-RCFIXED IND 33UH 1.1A 300 MOHM SMD |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.4A | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-470M-RCFIXED IND 47UH 800MA 390MOHM SMD |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 800 mA | 1A | Unshielded | 390mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-680M-RCFIXED IND 68UH 700MA 700MOHM SMD |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 700 mA | 900mA | Unshielded | 700mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-331M-RCFIXED IND 330UH 300MA 2.7OHM SMD |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 300 mA | 400mA | Unshielded | 2.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-471M-RCFIXED IND 470UH 200MA 4 OHM SMD |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 200 mA | 300mA | Unshielded | 4Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
