固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18103CFIXED IND 10UH 3.45A 15 MOHM TH |
0 | - |
|
数据表 |
1800 | Axial | Bulk | Obsolete | Wirewound | - | 10 µH | ±10% | 3.45 A | - | Unshielded | 15mOhm Max | 64 @ 500kHz | 19MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
ELL-4FG4R7NAFIXED IND 4.7UH 1A 160 MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1 A | 1A | Shielded | 160mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG6R8NAFIXED IND 6.8UH 860MA 220MOHM SM |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 860 mA | 800mA | Shielded | 220mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG100MAFIXED IND 10UH 750MA 290MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 750 mA | 700mA | Shielded | 290mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG220MAFIXED IND 22UH 500MA 620MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 500 mA | 420mA | Shielded | 620mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG470MAFIXED IND 47UH 330MA 1.6 OHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 330 mA | 290mA | Shielded | 1.6Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|

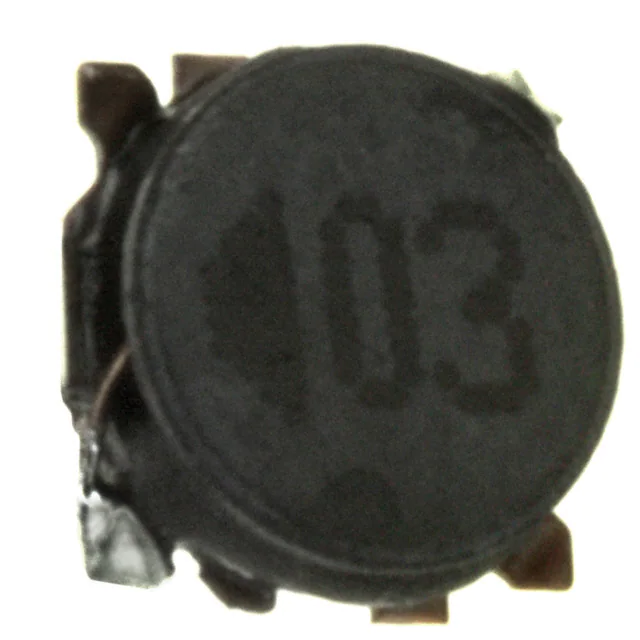

ELL-4GG2R2NFIXED IND 2.2UH 1.4A 88 MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.4 A | 1.7A | Shielded | 88mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG3R3NFIXED IND 3.3UH 1.2A 110MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.2 A | 1.5A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG4R7NFIXED IND 4.7UH 1A 160 MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1 A | 1.2A | Shielded | 160mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG6R8NFIXED IND 6.8UH 930MA 200MOHM SM |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 930 mA | 1.05A | Shielded | 200mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG100MFIXED IND 10UH 770MA 250MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 770 mA | 900mA | Shielded | 250mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG470MFIXED IND 47UH 350MA 1.25OHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 350 mA | 400mA | Shielded | 1.25Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
ELL-4LG2R2NAFIXED IND 2.2UH 1.7A 55 MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.7 A | 1.5A | Shielded | 55mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

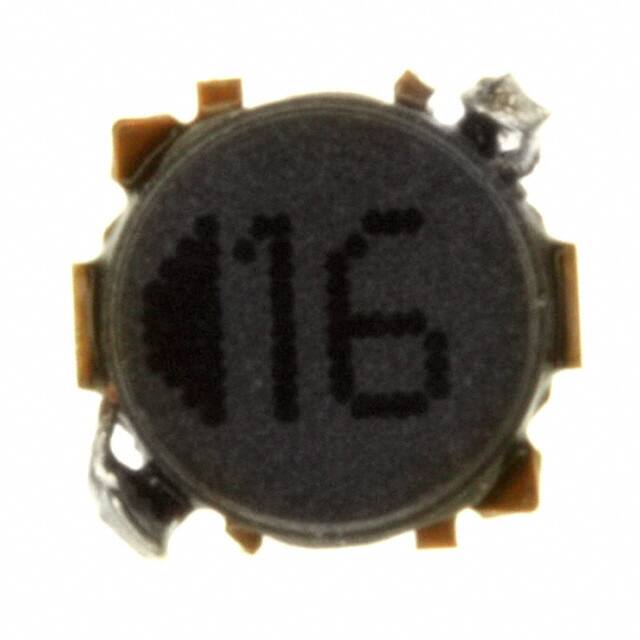

ELL-4LG3R3NAFIXED IND 3.3UH 1.45A 72MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.45 A | 1.3A | Shielded | 72mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

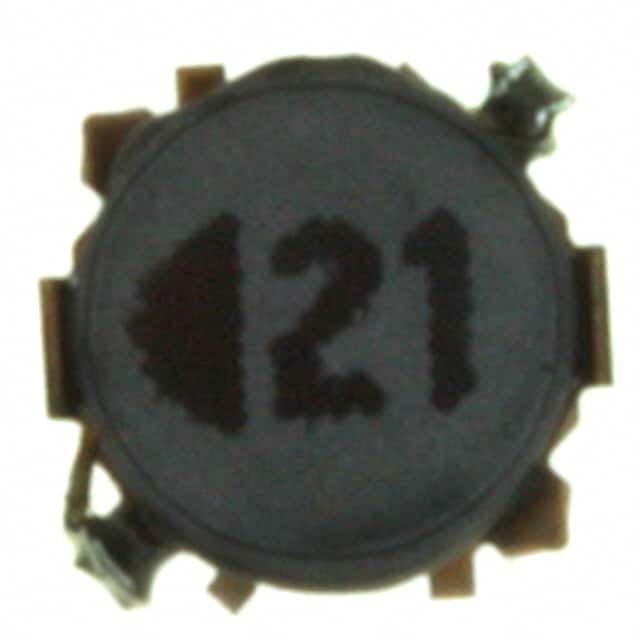

ELL-4LG4R7NAFIXED IND 4.7UH 1.3A 90 MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.3 A | 1.1A | Shielded | 90mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
ELL-4LG150MAFIXED IND 15UH 730MA 300MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 730 mA | 620mA | Shielded | 300mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

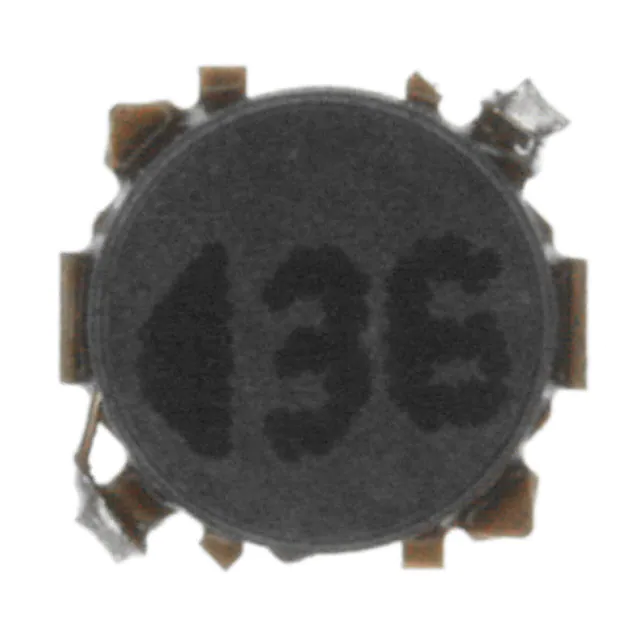

ELL-4LG220MAFIXED IND 22UH 640MA 390MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 640 mA | 550mA | Shielded | 390mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

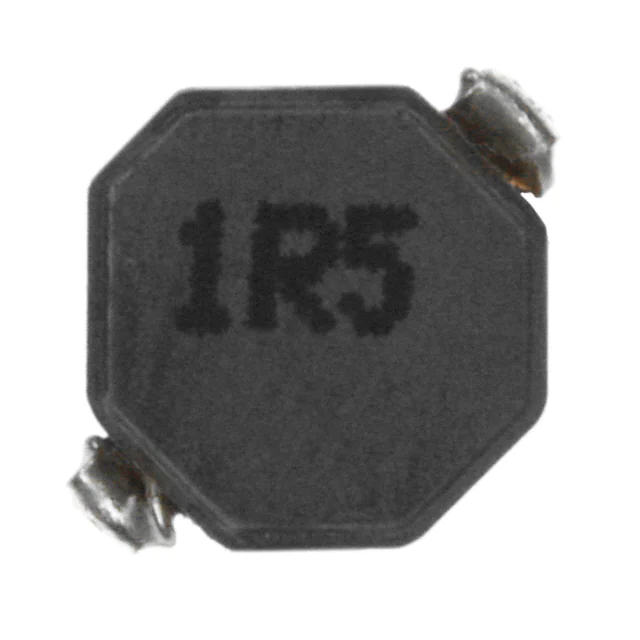

ELL-5PS1R5NFIXED IND 1.5UH 2.4A 28 MOHM SMD |
0 | - |
|
数据表 |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 2.4 A | 2.4A | Shielded | 28mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

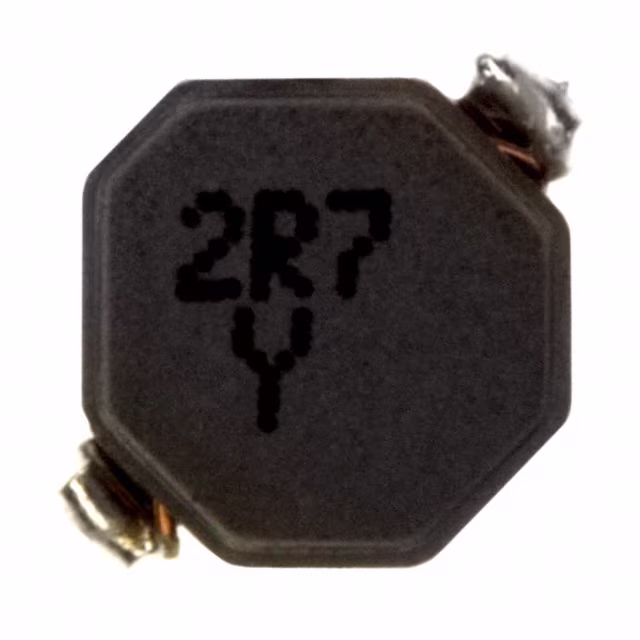

ELL-5PS2R7NFIXED IND 2.7UH 2.05A 40MOHM SMD |
0 | - |
|
数据表 |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±30% | 2.05 A | 2A | Shielded | 40mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ELL-5PS100MFIXED IND 10UH 1.1A 120 MOHM SMD |
0 | - |
|
数据表 |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 1.1 A | 1A | Shielded | 120mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
