固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
36401E2N2AFIXED IND 2.2NH 440MA 350MOHM SM |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.2 nH | ±0.2nH | 440 mA | - | Unshielded | 350mOhm Max | 13 @ 500MHz | 8GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E33NJTDFIXED IND 33NH 75MA 4.5 OHM SMD |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 33 nH | ±5% | 75 mA | - | Unshielded | 4.5Ohm Max | 13 @ 500MHz | 2.5GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N3AFIXED IND 3.3NH 380MA 450MOHM SM |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.3 nH | ±0.2nH | 380 mA | - | Unshielded | 450mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E4N7AFIXED IND 4.7NH 320MA 650MOHM SM |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 4.7 nH | ±0.2nH | 320 mA | - | Unshielded | 650mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E6N8AFIXED IND 6.8NH 260MA 1.05OHM SM |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 6.8 nH | ±0.2nH | 260 mA | - | Unshielded | 1.05Ohm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E6N8BTDFIXED IND 6.8NH 260MA 1.05OHM SM |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 6.8 nH | ±0.1nH | 260 mA | - | Unshielded | 1.05Ohm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E8N2AFIXED IND 8.2NH 220MA 1.25OHM SM |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 8.2 nH | ±0.2nH | 220 mA | - | Unshielded | 1.25Ohm Max | 13 @ 500MHz | 5.5GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
5-1624109-2FIXED IND 15NH 300MA 1.35OHM SMD |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 15 nH | ±2% | 300 mA | - | Unshielded | 1.35Ohm Max | 15 @ 500MHz | 3GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
1624109-5FIXED IND 1.5NH 800MA 350MOHM SM |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.5 nH | ±0.2nH | 800 mA | - | Unshielded | 350mOhm Max | 15 @ 500MHz | 10GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
5-1624109-5FIXED IND 22NH 250MA 1.95OHM SMD |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 22 nH | ±2% | 250 mA | - | Unshielded | 1.95Ohm Max | 15 @ 500MHz | 2GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
1624109-9FIXED IND 33NH 250MA 2.75OHM SMD |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 33 nH | ±2% | 250 mA | - | Unshielded | 2.75Ohm Max | 15 @ 500MHz | 1.5GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
1-1624109-7FIXED IND 6.8NH 300MA 750MOHM SM |
0 | - |
|
数据表 |
3640, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 6.8 nH | ±0.2nH | 300 mA | - | Unshielded | 750mOhm Max | 15 @ 500MHz | 5GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|

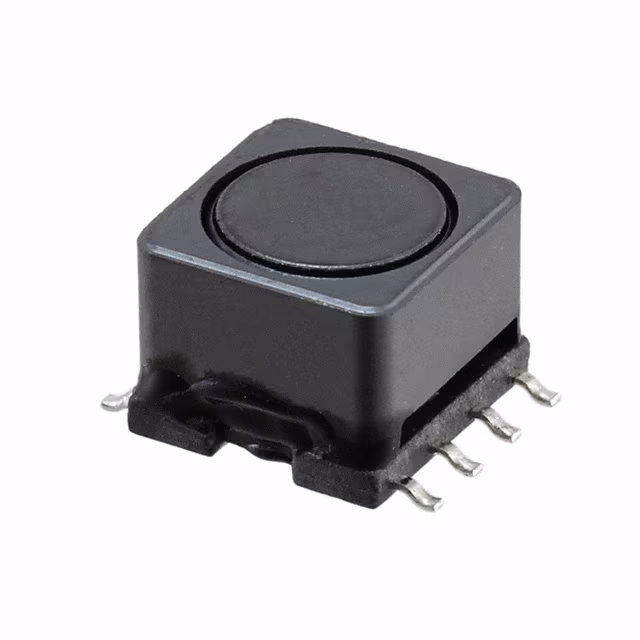

3632B102LLFIXED IND 1MH 300MA 2.5 OHM SMD |
0 | - |
|
数据表 |
3632, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 1 mH | ±15% | 300 mA | - | Shielded | 2.5Ohm Max | 85 @ 252kHz | 1.8MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|
|
3632B103LLFIXED IND 10MH 95MA 26 OHM SMD |
0 | - |
|
数据表 |
3632, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 mH | ±15% | 95 mA | - | Shielded | 26Ohm Max | 110 @ 79.6MHz | 500kHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|
|
3632B153LLFIXED IND 15MH 75MA 40 OHM SMD |
0 | - |
|
数据表 |
3632, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 15 mH | ±15% | 75 mA | - | Shielded | 40Ohm Max | 130 @ 79.6kHz | 400kHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|
3630F330MTFIXED IND 33UH 2.5A 100 MOHM SMD |
0 | - |
|
数据表 |
3630, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.5 A | 5A | Shielded | 100mOhm Max | 44 @ 2.52MHz | 10MHz | - | -25°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|
|
3630F680MTFIXED IND 68UH 1.6A 200 MOHM SMD |
0 | - |
|
数据表 |
3630, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.6 A | 3.4A | Shielded | 200mOhm Max | 37 @ 2.52MHz | 6MHz | - | -25°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|
|
1-1676946-8FIXED IND 2.2UH 1.6A 135MOHM SMD |
0 | - |
|
数据表 |
3634, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.6 A | 1.6A | Shielded | 135mOhm Max | 7 @ 7.96MHz | 120MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.150" L x 0.150" W x 0.045" H (3.80mm x 3.80mm x 1.15mm) | - |
|
|
3635B2R5PTFIXED IND 2.5UH 18A 3.4 MOHM SMD |
0 | - |
|
数据表 |
3635, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 2.5 µH | ±25% | 18 A | 12A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
3621D222KTFIXED IND 2.2MH 130MA 10 OHM SMD |
0 | - |
|
数据表 |
3621, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 130 mA | - | Unshielded | 10Ohm Max | 29 @ 252kHz | 1.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.209" (5.30mm) |
