固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LHLZ06TB391KFIXED IND 390UH TH |
0 | - |
|
数据表 |
LH, LZ Type | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | Ferrite | 390 µH | ±10% | - | - | Unshielded | - | - | - | - | -25°C ~ 105°C | - | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.433" (11.00mm) |
|

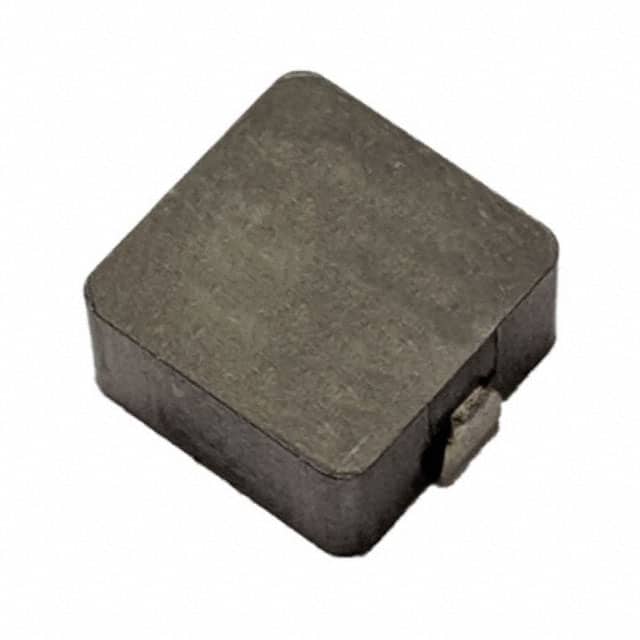

HCM1A1105V2-R47-RFIXED INDUCTOR 470NH SMD |
0 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
PE-0402CD220JTTFIXED IND 22NH 400MA 300MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 400 mA | - | Unshielded | 300mOhm | 26 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
|
|
CDRH12D77BT150NP-680MCFIXED IND 68UH 3.6A 77 MOHM SMD |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 3.6 A | 3.7A | Shielded | 77mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-120MC-90FIXED IND 12.5UH 7A 15.2MOHM SMD |
0 | - |
|
数据表 |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12.5 µH | ±20% | 7 A | 10.2A | Shielded | 15.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-220MC-105FIXED IND 22UH 5.3A 23.4MOHM SMD |
0 | - |
|
数据表 |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 5.3 A | 6.9A | Shielded | 23.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-2R2NCFIXED IND 2.2UH 11.7A 6.3MOHM SM |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 11.7 A | 20.6A | Shielded | 6.3mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-1R6MC-105FIXED IND 1.6UH 17.8A 2.6MOHM SM |
0 | - |
|
数据表 |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.6 µH | ±20% | 17.8 A | 25A | Shielded | 2.6mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-2R2MC-90FIXED IND 2.2UH 16.1A 3.3MOHM SM |
0 | - |
|
数据表 |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 16.1 A | 24.5A | Shielded | 3.3mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDRH10D60BT150NP-6R8NCFIXED IND 6.8UH 7.9A 15 MOHM SMD |
0 | - |
|
数据表 |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 7.9 A | 7.4A | Shielded | 15mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
|
CDEP13D76T150NP-220MC-90FIXED IND 22UH 4.7A 30.4MOHM SMD |
0 | - |
|
数据表 |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 4.7 A | 7.5A | Shielded | 30.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-5R1MC-105FIXED IND 5.1UH 13A 4.8 MOHM SMD |
0 | - |
|
数据表 |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.1 µH | ±20% | 13 A | 14.6A | Shielded | 4.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-221MCFIXED IND 220UH 1.8A 318MOHM SMD |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 1.8 A | 2.05A | Shielded | 318mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-151MCFIXED IND 150UH 2.45A 165MOHM SM |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 2.45 A | 2.55A | Shielded | 165mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-6R8MC-105FIXED IND 6.8UH 11.5A 5.9MOHM SM |
0 | - |
|
数据表 |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 11.5 A | 12.7A | Shielded | 5.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-6R8NCFIXED IND 6.8UH 8.1A 13 MOHM SMD |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 8.1 A | 11.7A | Shielded | 13mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-101MCFIXED IND 100UH 2.8A 138MOHM SMD |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 2.8 A | 3.05A | Shielded | 138mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-220MCFIXED IND 22UH 5.1A 34 MOHM SMD |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 5.1 A | 6.4A | Shielded | 34mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-150MCFIXED IND 15UH 6.4A 22 MOHM SMD |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 6.4 A | 7.8A | Shielded | 22mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-331MCFIXED IND 330UH 1.5A 370MOHM SMD |
0 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 1.5 A | 1.7A | Shielded | 370mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
