固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L1007C101KPWITINDUCTOR, WW SMD |
0 | - |
|
数据表 |
L-PWI | 1007 (2518 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 125 mA | - | Unshielded | 3.7Ohm | - | 9MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
L0805C470KDWSTINDUCTOR, WW SMD |
0 | - |
|
数据表 |
L-DWS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 190 mA | 90mA | Unshielded | 3.7Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
RDC10-331K-RC330H 10% RADIAL DRUM CORE IND |
0 | - |
|
数据表 |
RDC10 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 1.3 A | 3.8A | Unshielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|

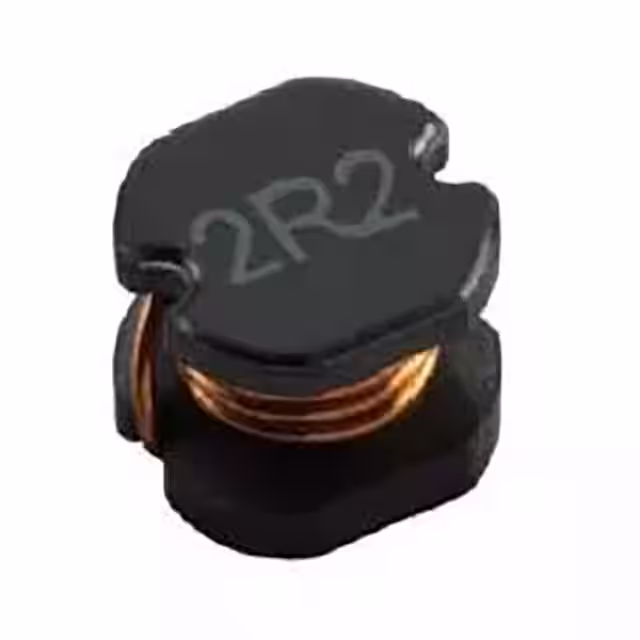

PCD0705KT390FIXED IND 36UH 1.1A 160MOHM SMD |
0 | - |
|
数据表 |
PCD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±10% | 1.1 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CU4S0506AT-3500-XPISOLATOR SMD |
0 | - |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CU4S0401AT-2140-H1ISOLATOR SMD |
0 | - |
|
数据表 |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CU4S0506AT-806-H1ISOLATOR SMD |
0 | - |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CU4S0506AT-2132-XPISOLATOR SMD |
0 | - |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CU4S0401AT-1960-H1ISOLATOR SMD |
0 | - |
|
数据表 |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ASPI-0706HC-R18N-TFIXED IND .18UH 14A 3MOHMS |
0 | - |
|
数据表 |
ASPI-0706HC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 nH | ±30% | - | - | Unshielded | - | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
AIMC-0402HQ-2N7S-TFIXED IND 2.7NH 0.7A 90 MOHM |
0 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 700 mA | - | Shielded | 90mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIAP-03-473KFIXED IND 47MH 131MA 31.8 OHM |
0 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 131 mA | - | Unshielded | 31.8Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-104KFIXED IND 100MH 98MA 71.1 OHM TH |
0 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 98 mA | - | Unshielded | 71.1Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIMC-0402HQ-4N3S-TFIXED IND 4.3NH 0.6A 130 MOHM |
0 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.3 nH | ±0.3nH | 600 mA | - | Shielded | 130mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
ASPI-0706HC-R56N-TFIXED IND .56UH 7.7A 10MOHMS |
0 | - |
|
数据表 |
ASPI-0706HC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±30% | 6 A | 7.7A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
AIAP-03-124KFIXED IND 120MH 70MA 37 OHM |
0 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 mH | ±10% | 70 mA | - | Unshielded | 37Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-5R6MFIXED IND 5.6UH 12.6A 11 MOHM TH |
0 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 12.6 A | - | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-683KFIXED IND 68MH 108MA 46.9 OHM |
0 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 108 mA | - | Unshielded | 46.9Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
ASPI-0520-100M-T2FIXED IND 10UH 1.4A 120 MOHMS |
0 | - |
|
数据表 |
ASPI-0520 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.45 A | 1.3A | Shielded | 120mOhm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
AIMC-0402HQ-3N3S-TFIXED IND 3.3NH 0.7A 90 MOHM |
0 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 700 mA | - | Shielded | 90mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
