固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

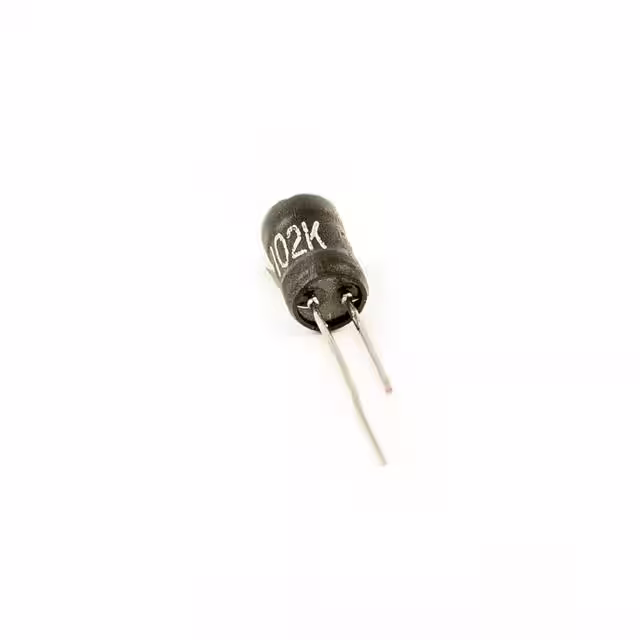

RB5480-1-102K-RC1000UH 10% RADIAL POWER CHOKE |
0 | - |
|
数据表 |
- | Radial, Vertical Cylinder | Bag | Active | - | - | 1 mH | ±10% | 60 mA | 92mA | Unshielded | 5.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.225" Dia (5.72mm) | 0.340" (8.64mm) |
|
RDC60-223K-RC22000UH 10% RADIAL DRUM CORE |
0 | - |
|
数据表 |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 22 mH | ±10% | 2 A | 1.8A | Unshielded | 2.74Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|

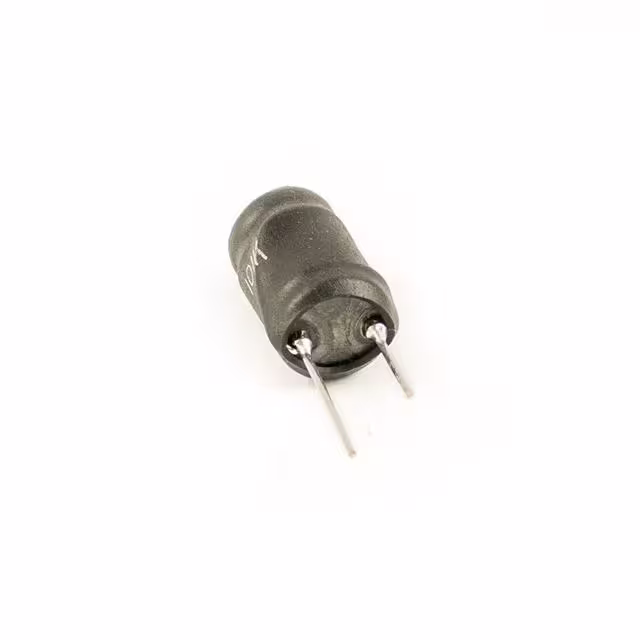

RB5480-4-271K-RC270UH 10% RADIAL POWER CHOKE |
0 | - |
|
数据表 |
- | Radial, Vertical Cylinder | Bag | Active | - | - | 270 µH | ±10% | 1.3 A | 1.75A | Unshielded | 270mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.450" Dia (11.43mm) | 0.760" (19.30mm) |
|
RB5480-5-560K-RC56UH 10% RADIAL POWER CHOKE |
0 | - |
|
数据表 |
- | Radial, Vertical Cylinder | Bag | Active | - | - | 56 µH | ±10% | 4 A | 2.5A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.750" (19.05mm) |
|
|
RDC60-101K-RC100UH 10% RADIAL DRUM CORE |
0 | - |
|
数据表 |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 100 µH | ±10% | 27 A | 26.5A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-121K-RC120UH 10% RADIAL DRUM CORE |
0 | - |
|
数据表 |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 120 µH | ±10% | 27 A | 24.5A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-391K-RC390UH 10% RADIAL DRUM CORE |
0 | - |
|
数据表 |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 390 µH | ±10% | 13.5 A | 13.6A | Unshielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-273K-RC27000UH 10% RADIAL DRUM CORE |
0 | - |
|
数据表 |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 27 mH | ±10% | 1.7 A | 1.6A | Unshielded | 3.71Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-331K-RC330UH 10% RADIAL DRUM CORE |
0 | - |
|
数据表 |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 17 A | 14.8A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RB5480-5-332K-RC3300UH 10% RADIAL POWER CHOKE |
0 | - |
|
数据表 |
- | Radial, Vertical Cylinder | Tray | Active | - | - | 3.3 mH | ±10% | 620 mA | 360mA | Unshielded | 1.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.750" (19.05mm) |
|

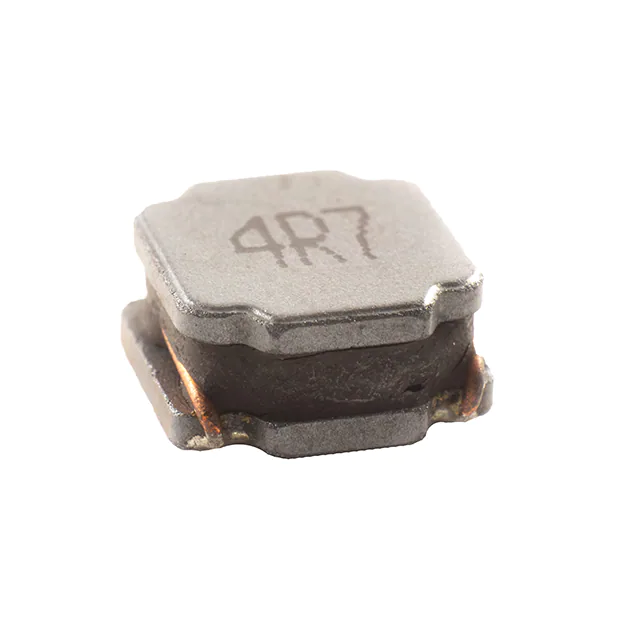

PCSV80-100M-RC10UH 20% PWR CHIP INDUCTOR |
0 | - |
|
数据表 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.8 A | 4.3A | Shielded | 38mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-330M-RC33UH 20% SHIELDED PWR INDUCTOR |
0 | - |
|
数据表 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2 A | 2.3A | Shielded | 110mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-150M-RC15UH 20% SHIELDED PWR INDUCTOR |
0 | - |
|
数据表 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3.2 A | 3.6A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-3R3M-RC3.3UH 20% SHIELDED PWR INDUCTOR |
0 | - |
|
数据表 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6 A | 7.5A | Shielded | 15mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

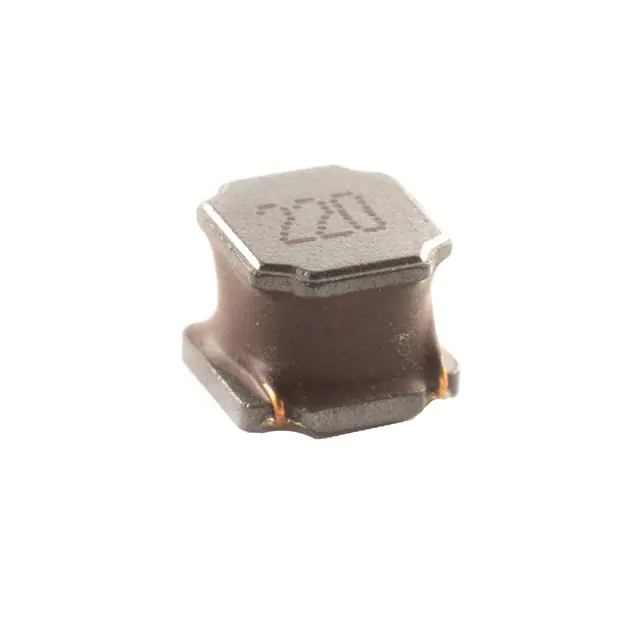

PCSV54-100M-RC10UH 20% SMD PWR CHIP INDUCTOR |
0 | - |
|
数据表 |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.2 A | 2.8A | Shielded | 60mOhm | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-2R0M-RC2.0UH 20% SHIELDED PWR INDUCTOR |
0 | - |
|
数据表 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 7.4 A | 9.6A | Shielded | 11mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV54-470M-RC47UH 20% SMD PWR CHIP INDUCTOR |
0 | - |
|
数据表 |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 900 mA | 1.2A | Shielded | 310mOhm | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-121M-RC120UH 20% SHIELDED PWR INDUCTOR |
0 | - |
|
数据表 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 121 µH | ±20% | 1 A | 1.1A | Shielded | 425mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-6R8M-RC6.8UH 20% SHIELDED PWR INDUCTOR |
0 | - |
|
数据表 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 5.1 A | 5.4A | Shielded | 25mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-4R7M-RC4.7UH 20% SHIELDED PWR INDUCTOR |
0 | - |
|
数据表 |
- | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.5 A | 6A | Shielded | 18mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
