固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

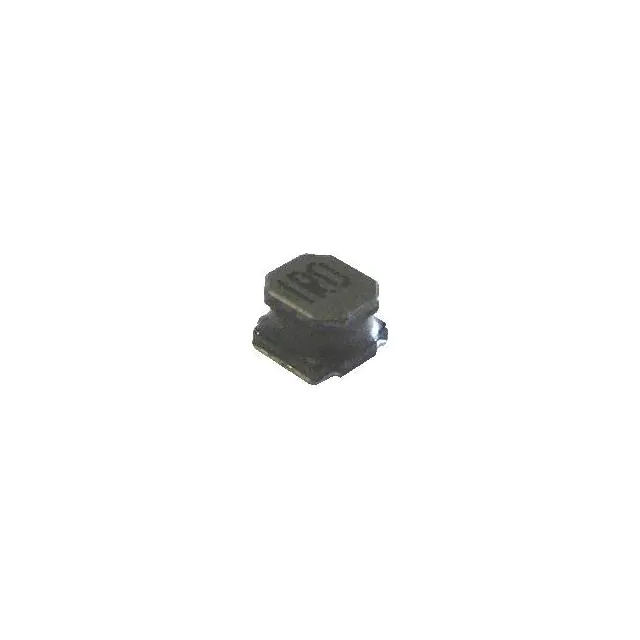

CTLVC6028F-3R3M3.3UH SMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 3.15 A | 3.87A | Shielded | 28mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-2R7N2.7UH SMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 3.33 A | 4.41A | Shielded | 26mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-2R2N2.2UH SMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 3.6 A | 4.86A | Shielded | 20mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-1R0N1.0UH SMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 4.68 A | 6.84A | Shielded | 13mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-220M22UH SMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.35 A | 1.44A | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-330M33UH SMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.26 A | 1.17A | Shielded | 220mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTRL5480F-2-101K100UH RADIAL FIXED INDUCTOR |
5 | - |
|
- |
CTRL5480F-2 | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 µH | ±10% | 490 mA | 530mA | Unshielded | 270mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.272" Dia (6.90mm) | 0.366" (9.30mm) |
|
|
CTLVC6028F-6R8M6.8UH SMD POWER INDUCTOR |
4 | - |
|
数据表 |
CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.43 A | 2.79A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTLVC4012F-2R2M2.2UH SMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLVC4012F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.35 A | 1.53A | Shielded | 65mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.051" (1.30mm) |
|
CTMMP73VCZF-1R0MSMD Shielded Power Inductor |
15 | - |
|
数据表 |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 22 A | - | Shielded | 9mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CTMMP73VCZF-4R7MSMD Shielded Power Inductor |
15 | - |
|
数据表 |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 9 A | - | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
CTLV4026SF-3R3MSMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 2.25 A | 2.7A | Shielded | 67mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-5R6MSMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 1.71 A | 2.07A | Shielded | 110mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-4R7MSMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.8 A | 2.34A | Shielded | 92mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-220MSMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 900 mA | 1.09A | Shielded | 330mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-1R5MSMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 3.33 A | 3.78A | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-1R0MSMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.6 A | 4.5A | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-330MSMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 730 mA | 900mA | Shielded | 480mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-150MSMD POWER INDUCTOR |
10 | - |
|
数据表 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.08 A | 1.3A | Shielded | 240mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTMMP73VCZF-R33MSMD Shielded Power Inductor |
10 | - |
|
数据表 |
- | - | Bulk | Active | - | - | 0.33 µH | ±20% | 33 A | - | Shielded | 4mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
