固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV25T-015J-EFFIXED IND 15NH 480MA 290MOHM SMD |
1,632 | - |
|
数据表 |
NLV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 nH | ±5% | 480 mA | - | Unshielded | 290mOhm Max | 15 @ 100MHz | 2GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
MLF1005VR10KT000FIXED IND 100NH 180MA 510MOHM SM |
1,537 | - |
|
数据表 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±10% | 180 mA | - | Shielded | 510mOhm Max | 10 @ 25MHz | 450MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LQW18ANR36J8ZDFIXED IND 360NH 190MA 3.98OHM SM |
1,534 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 360 nH | ±5% | 190 mA | - | Unshielded | 3.98Ohm Max | 25 @ 100MHz | 1.05GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN82NJ8ZDFIXED IND 82NH 550MA 0.5OHM SMD |
1,466 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 82 nH | ±5% | 550 mA | - | Unshielded | 500mOhm Max | 34 @ 150MHz | 2.23GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
NLV32T-012J-EFFIXED IND 12NH 450MA 140MOHM SMD |
1,232 | - |
|
数据表 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 nH | ±5% | 450 mA | - | Unshielded | 140mOhm Max | 17 @ 100MHz | 2.3GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
AIAP-02-271KFIXED IND 270UH 770MA 557MOHM TH |
5,915 | - |
|
数据表 |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 270 µH | ±10% | 770 mA | - | Unshielded | 557mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
VLS3010ET-1R0NFIXED IND 1UH 1.6A 72 MOHM SMD |
44,988 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 1 µH | ±30% | 1.6 A | 1.6A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
MLF1005VR47KT000FIXED IND 470NH 120MA 1.5OHM SMD |
9,125 | - |
|
数据表 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±10% | 120 mA | - | Shielded | 1.5Ohm Max | 15 @ 25MHz | 190MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LSXND4040MKL1R5NDGFIXED IND 1.5UH 2A 61.2 MOHM SMD |
8,896 | - |
|
数据表 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 2 A | 2.3A | Shielded | 61.2mOhm Max | - | 90MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS3012ET-150MFIXED IND 15UH 550MA 516MOHM SMD |
7,598 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 550 mA | 550mA | Shielded | 516mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
MLP2012SR47MT0S1FIXED IND 470NH 1.2A 117MOHM SMD |
7,508 | - |
|
数据表 |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Shielded | 117mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NRH2410T4R7MNVFIXED IND 4.7UH 670MA 348MOHM SM |
6,438 | - |
|
数据表 |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 670 mA | 880mA | Shielded | 348mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|

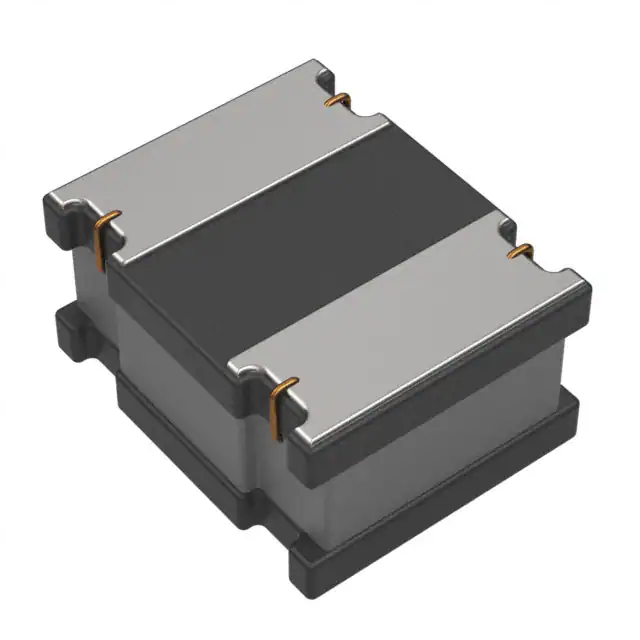

SDED20161T-2R2MSFIXED IND 2.2UH 1.35A 230MOHM SM |
5,938 | - |
|
数据表 |
SDED20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.35 A | 1.31A | Shielded | 230mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
.jpg)
|
MLF1608DR22JTD25FIXED IND 220NH 150MA 550MOHM SM |
5,913 | - |
|
数据表 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±5% | 150 mA | - | Shielded | 550mOhm Max | 15 @ 25MHz | 290MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-2,00mm.jpg)
|
CB2518T1R0MVFIXED IND 1UH 1.25A 78 MOHM SMD |
5,910 | - |
|
- |
CB | 1007 (2518 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.25 A | 1.2A | Unshielded | 78mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
SDET25201T-4R7MSFIXED IND 4.7UH 1.08A 323MOHM SM |
5,847 | - |
|
数据表 |
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.08 A | 1.08A | Shielded | 323mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
NRS4012T2R2MDGJVFIXED IND 2.2UH 1.9A 72 MOHM SMD |
5,693 | - |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 1.65A | Shielded | 72mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SDET25201T-1R0MSFIXED IND 1UH 1.98A 81 MOHM SMD |
5,693 | - |
|
数据表 |
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 1.98 A | 1.89A | Shielded | 81mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

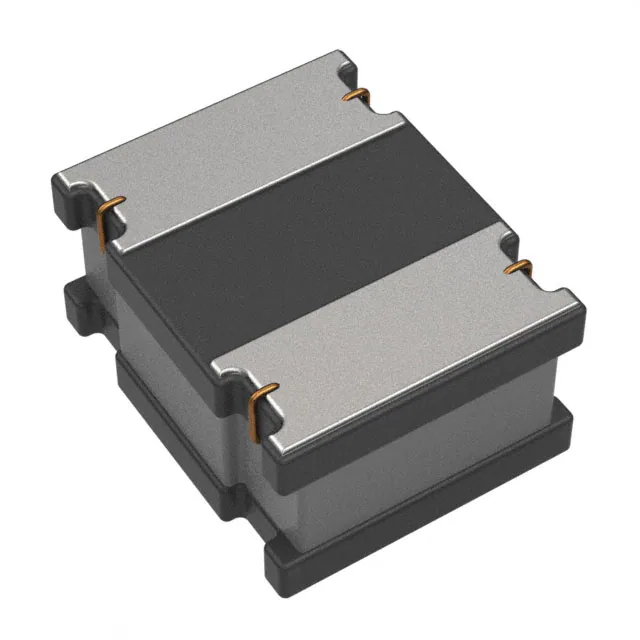

SDEM20161T-R68MSFIXED IND 680NH 2.8A 0.055OHM SM |
4,900 | - |
|
数据表 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 2.8 A | 3.3A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SDEM20161T-R33MSFIXED IND 330NH 3.6A 0.032OHM SM |
4,748 | - |
|
数据表 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 330 nH | ±20% | 3.6 A | 4.1A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
