固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

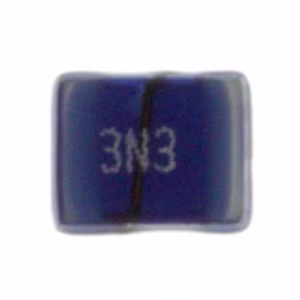

744762033AFIXED IND 3.3NH 1A 60 MOHM SMD |
1,854 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±0.3nH | 1 A | - | Unshielded | 60mOhm Max | 50 @ 1GHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

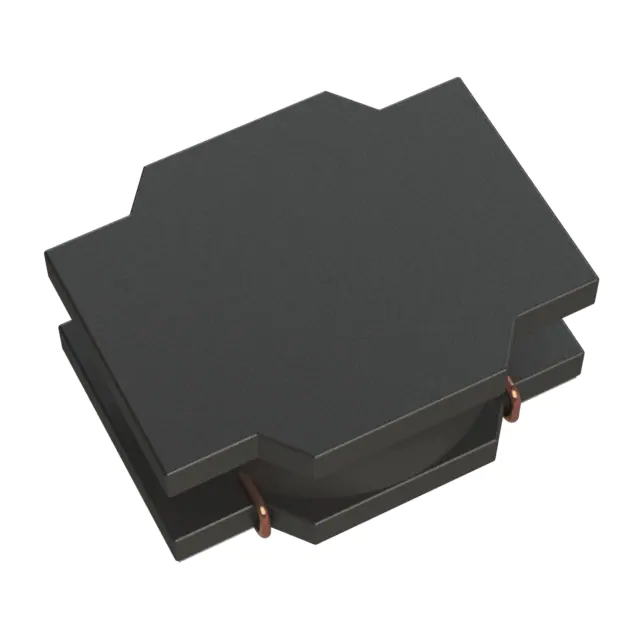

SWPA252010S2R2NTFIXED IND 2.2UH 1.2A 209MOHM SMD |
1,854 | - |
|
数据表 |
SWPA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.2 A | 1.6A | Shielded | 209mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
PE-0603CD820JTTFIXED IND 82NH 400MA 540MOHM SMD |
1,813 | - |
|
数据表 |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 540mOhm Max | 34 @ 150MHz | 1.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
|
SWPA252010S4R7MTFIXED IND 4.7UH 700MA 563MOHM SM |
1,812 | - |
|
数据表 |
SWPA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 700 mA | 1.15A | Shielded | 563mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

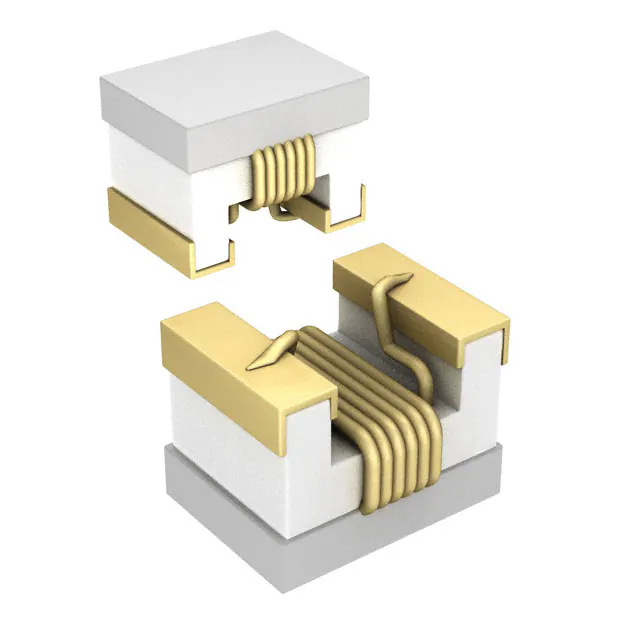

74476013CFIXED IND 33NH 500MA 270MOHM SMD |
1,788 | - |
|
数据表 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 500 mA | - | Unshielded | 270mOhm Max | 60 @ 500MHz | 2.05GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
B78148E1681M000FIXED IND 680NH 4.6A 31 MOHM TH |
1,678 | - |
|
数据表 |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 4.6 A | 7.1A | Unshielded | 31mOhm Max | 60 @ 7.96MHz | 360MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|

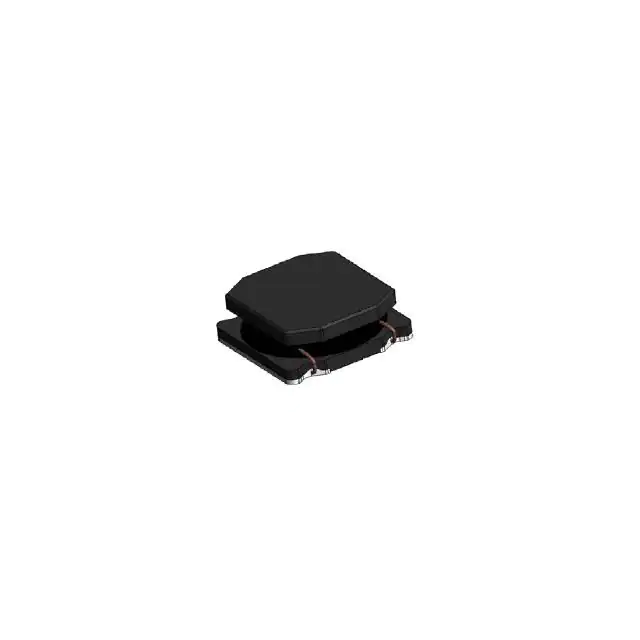

SDCL1V4030-471M-RIND 470 UH 0.32A SMT |
1,596 | - |
|
数据表 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 170 mA | 320mA | Shielded | 8.3Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
744760312CFIXED IND 1.2UH 150MA 4.6OHM SMD |
1,518 | - |
|
数据表 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 µH | ±5% | 150 mA | - | Unshielded | 4.6Ohm Max | 20 @ 25MHz | 200MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760227CFIXED IND 270NH 350MA 1.29OHM SM |
1,509 | - |
|
数据表 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 350 mA | - | Unshielded | 1.29Ohm Max | 35 @ 250MHz | 650MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
VLS4015CX-680M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,427 | - |
|
数据表 |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 570 mA | 540mA | Shielded | 1.72Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
744760118CFIXED IND 18NH 500MA 200MOHM SMD |
1,352 | - |
|
数据表 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 500 mA | - | Unshielded | 200mOhm Max | 50 @ 500MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760282CFIXED IND 820NH 180MA 3.9OHM SMD |
1,182 | - |
|
数据表 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 180 mA | - | Unshielded | 3.9Ohm Max | 23 @ 50MHz | 215MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
74476018CFIXED IND 82NH 400MA 420MOHM SMD |
1,164 | - |
|
数据表 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 420mOhm Max | 50 @ 500MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

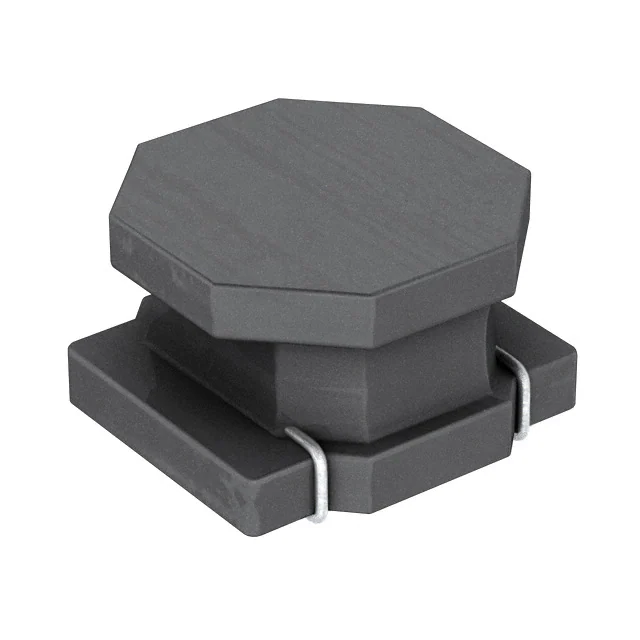

MDKK1616T6R8MMFIXED IND 6.8UH 520MA 820MOHM SM |
1,095 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 520 mA | 880mA | Shielded | 820mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
|
VLS5045EX-1R8NFIXED IND 1.8UH 4.8A 19 MOHM SMD |
1,045 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 4.8 A | - | Shielded | 19mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
74476016CFIXED IND 68NH 500MA 380MOHM SMD |
1,024 | - |
|
数据表 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 500 mA | - | Unshielded | 380mOhm Max | 50 @ 500MHz | 1.45GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
AIAP-01-3R3K-TFIXED IND 3.3UH 1.9A 54 MOHM TH |
9,830 | - |
|
数据表 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±10% | 1.9 A | - | Unshielded | 54mOhm Max | - | 110MHz | - | -40°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|

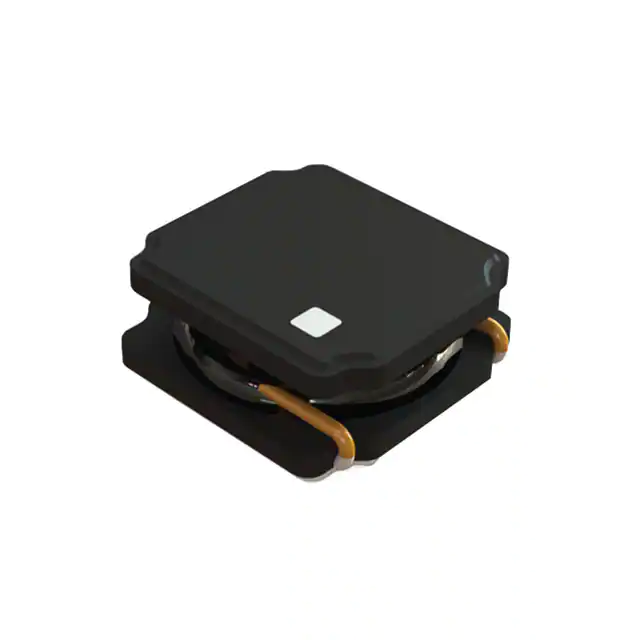

PA4331.472NLTFIXED IND 4.7UH 1.3A 235MOHM SMD |
9,725 | - |
|
数据表 |
PA4331.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 1.3 A | 2A | Shielded | 235mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
AIAP-01-821K-TFIXED IND 820UH 170MA 7.1 OHM TH |
8,060 | - |
|
数据表 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±10% | 170 mA | - | Unshielded | 7.1Ohm Max | - | 1.1MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
ASPI-2515-4R7M-T2FIXED IND 4.7UH 1.1A 206MOHM SMD |
5,211 | - |
|
数据表 |
ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.1 A | 1.15A | Shielded | 206mOhm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
