固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0705-331K-TFIXED IND 330UH 400MA 1.26OHM SM |
5,298 | - |
|
数据表 |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 400 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
NRS5024T6R8MMGJVFIXED IND 6.8UH 1.6A 96 MOHM SMD |
4,553 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.6 A | 2.2A | Shielded | 96mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
29332CFIXED IND 3.3UH 4A 28 MOHM SMD |
4,318 | - |
|
数据表 |
2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | - | 4 A | - | Shielded | 28mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
LQM2MPNR24MEHLFIXED IND 240NH 3A 34 MOHM SMD |
3,091 | - |
|
数据表 |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 240 nH | ±20% | 3 A | 4.5A | Shielded | 34mOhm Max | - | 130MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
NRM6045T220MMRRVFIXED IND 22UH 1.2A 132MOHM SMD |
3,083 | - |
|
数据表 |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.2 A | 2.5A | Unshielded | 132mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
.jpg)
|
252010CDMCDDS-1R5MCFIXED IND 1.5UH 3A 72 MOHM SMD |
2,939 | - |
|
数据表 |
252010CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 3 A | 2.5A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
NRS5024T220MMGJVFIXED IND 22UH 820MA 276MOHM SMD |
2,747 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 820 mA | 1.2A | Shielded | 276mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
VLS6045EX-330M-CAFIXED IND 33UH 1.5A 227.5MOHM SM |
2,720 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.9A | Shielded | 227.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
36501J15NJTDGFIXED IND 15NH 700MA 170MOHM SMD |
2,675 | - |
|
数据表 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 15 nH | ±5% | 700 mA | - | Unshielded | 170mOhm Max | 35 @ 250MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
252010CDMCDDS-1R0MCFIXED IND 1UH 4A 48 MOHM SMD |
2,623 | - |
|
数据表 |
252010CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 4 A | 3.4A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
NRM6045T101MMRRVFIXED IND 100UH 550MA 600MOHM SM |
2,596 | - |
|
数据表 |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 550 mA | 1.05A | Unshielded | 600mOhm Max | - | 4MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRS5024T330MMGJVFIXED IND 33UH 630MA 444MOHM SMD |
2,583 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 630 mA | 1A | Shielded | 444mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|

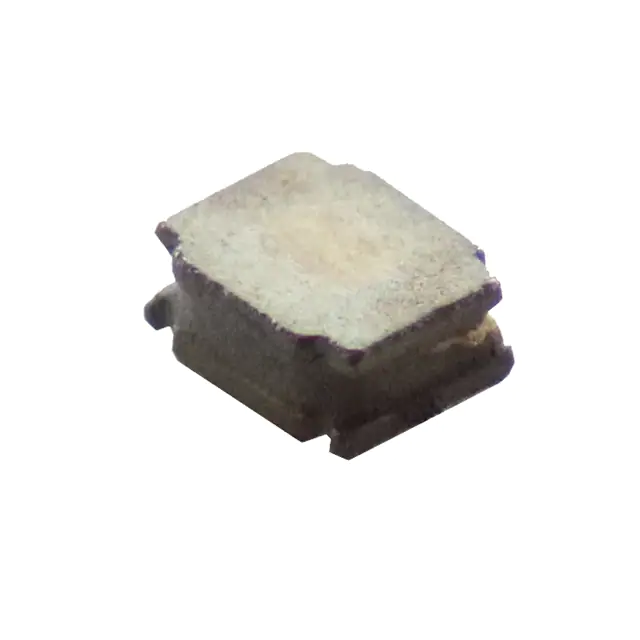

MPL-SE2512-2R2FIXED IND 2.2UH 2.5A 92 MOHM SMD |
2,286 | - |
|
数据表 |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 2.2 µH | - | 2.5 A | 2.7A | Shielded | 72mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLS6045EX-1R5N-HFIXED IND 1.5UH SMD |
2,054 | - |
|
数据表 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | - | - | Shielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLS6045EX-100M-CAFIXED IND 10UH 3.4A 61.1MOHM SMD |
2,040 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.9A | Shielded | 61.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

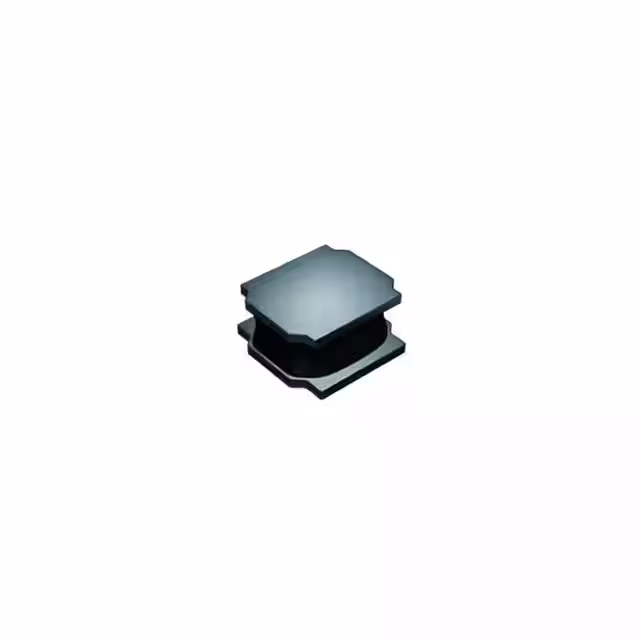

LSXBH8080YBL0R9NFIXED IND 900NH 7.8A 7.8MOHM SMD |
2,000 | - |
|
数据表 |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 900 nH | ±30% | 7.8 A | 11A | Shielded | 6mOhm | - | 85MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
MDKK3030T6R8MMFIXED IND 6.8UH 1A 437 MOHM SMD |
1,885 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1 A | 1.4A | Shielded | 437mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
VLS6045EX-150M-CAFIXED IND 15UH 2.5A 97.5MOHM SMD |
1,786 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 3.1A | Shielded | 97.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
AIUR-03-2R2MFIXED IND 2.2UH 3.2A 21 MOHM TH |
1,719 | - |
|
数据表 |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 3.2 A | 6.5A | Unshielded | 21mOhm Max | 20 @ 7.96MHz | 100MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
NRS5024T3R3NMGJVFIXED IND 3.3UH 2.4A 51.6MOHM SM |
1,665 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.4 A | 3.1A | Shielded | 51.6mOhm Max | - | 41MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
