固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82498F3569K001FIXED IND 5.6NH 900MA 40MOHM SMD |
5,108 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±10% | 900 mA | - | Unshielded | 40mOhm Max | 50 @ 1GHz | 7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
SDE0403A-330KFIXED IND 33UH 600MA 485MOHM SMD |
4,910 | - |
|
数据表 |
SDE0403A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 600 mA | 800mA | Unshielded | 485mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SDE0604A-221KIND5.8X5.2X4.5MM,22010%0.52A,NON |
4,288 | - |
|
数据表 |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 470 mA | 470mA | Unshielded | 1.57Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
SDE0604A-151KFIXED IND 150UH 520MA 1.1OHM SMD |
3,991 | - |
|
数据表 |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 520 mA | 520mA | Unshielded | 1.1Ohm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
B82144F2183K000FIXED IND 18UH 2.2A 0.155OHM TH |
2,971 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 2.2 A | 2.25A | Unshielded | 155mOhm Max | 50 @ 252kHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

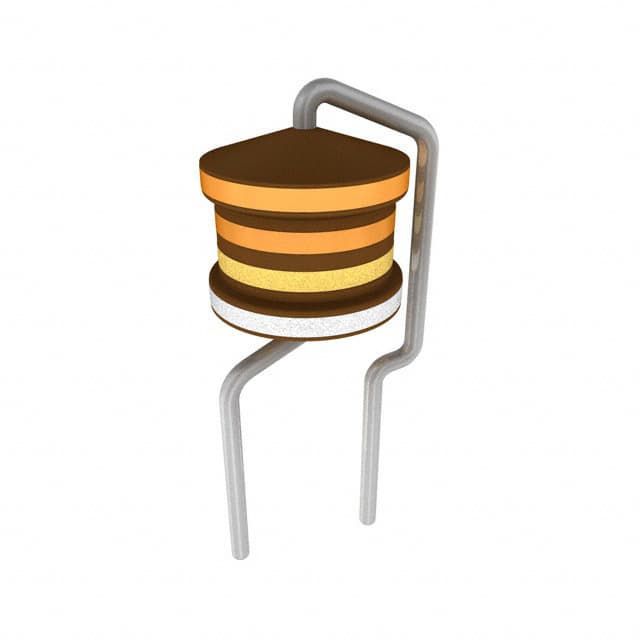

B82144B2332K000FIXED IND 3.3UH 3.5A 65 MOHM TH |
2,956 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 3.5 A | 5A | Unshielded | 65mOhm Max | 60 @ 2.52MHz | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
|
SDE0604A-270MFIXED IND 27UH 1.7A 200 MOHM SMD |
2,285 | - |
|
数据表 |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.7 A | 1.2A | Unshielded | 200mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|

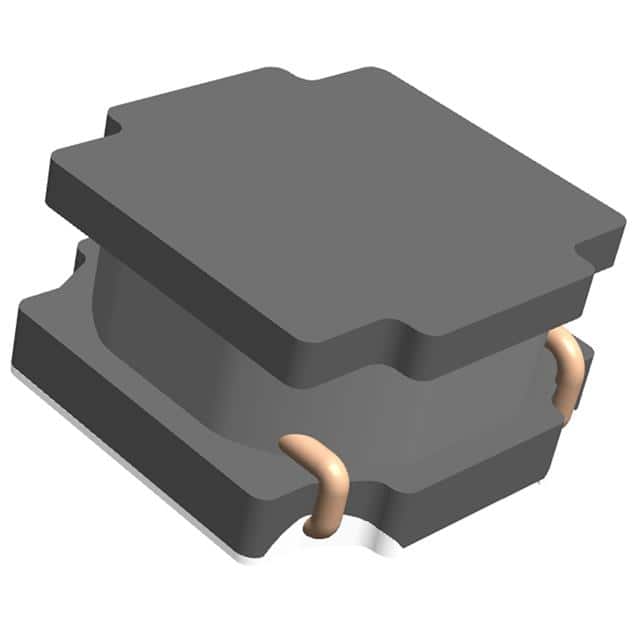

SDCHA1V8040-3R3-RIND SMD POWER3.3UH 6.6A |
1,973 | - |
|
数据表 |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 6.6 A | 8A | Shielded | 15mOhm | - | 48MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
MDMK3030TR30MMFIXED IND 300NH 4.8A 20 MOHM SMD |
1,693 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 300 nH | ±20% | 4.8 A | 7.6A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
74404043151AFIXED IND 150UH 390MA 1.634 OHM |
1,403 | - |
|
数据表 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 390 mA | 270mA | Shielded | 1.634Ohm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
IFSC0806AZER3R3M01FIXED IND 3.3UH 1.05A 297MOHM SM |
8,690 | - |
|
数据表 |
IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.05 A | 1A | Shielded | 297mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LBCNF2012KKTR33MADFIXED IND 0.33UH SMD |
6,000 | - |
|
数据表 |
LBCN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 330 nH | ±20% | 4.5 A | 4.4A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
LBCNF2012KKTR47MADFIXED IND 0.47UH SMD |
5,980 | - |
|
数据表 |
LBCN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 3.8 A | 3.8A | Unshielded | 41mOhm Max | - | - | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
LBCNF2012KKTR24MADFIXED IND 0.24UH SMD |
5,975 | - |
|
数据表 |
LBCN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 5.4 A | 4.8A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
SDR0503-562JLFIXED IND 5.6MH 38MA 72 OHM SMD |
4,132 | - |
|
数据表 |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±5% | 38 mA | 50mA | Unshielded | 72Ohm Max | 40 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
B82144F2182K000FIXED IND 1.8UH 3.75A 0.05OHM TH |
3,432 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 3.75 A | 6.4A | Unshielded | 50mOhm Max | 60 @ 2.52MHz | 150MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82144F2103K000FIXED IND 10UH 2.45A 0.12OHM TH |
2,465 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.45 A | 2.85A | Unshielded | 120mOhm Max | 40 @ 252kHz | 22MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
|
SDR0503-151KLFIXED IND 150UH 330MA 2 OHM SMD |
2,412 | - |
|
数据表 |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 330 mA | 400mA | Unshielded | 2Ohm Max | 40 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-221KLFIXED IND 220UH 250MA 2.5OHM SMD |
2,246 | - |
|
数据表 |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 250 mA | 340mA | Unshielded | 2.5Ohm Max | 35 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
SBC1-221-391FIXED IND 220UH 390MA 1.2 OHM TH |
1,899 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 390 mA | 320mA | Unshielded | 1.2Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.413" (10.50mm) |
