固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

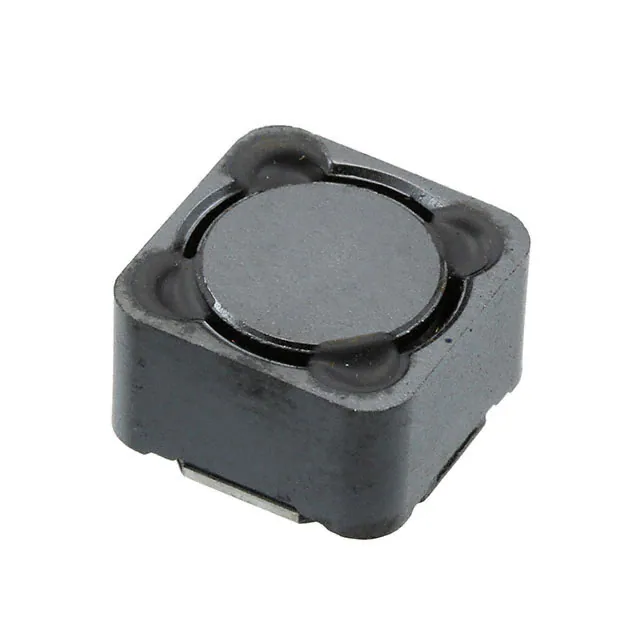

SRR1280A-561KFIXED IND 560UH 800MA 960MOHM SM |
7,811 | - |
|
数据表 |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±10% | 800 mA | 1.15A | Shielded | 960mOhm Max | 20 @ 796kHz | 2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280A-180MFIXED IND 18UH 4.8A 35 MOHM SMD |
3,473 | - |
|
数据表 |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±20% | 4.8 A | 4.6A | Shielded | 35mOhm Max | 24 @ 2.52MHz | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
MPX1D0830L330FIXED IND 33UH 2.8A 229.5MOHM SM |
3,071 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 2.8 A | 4A | Shielded | 229.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
MWLB0401S-2R2MTFIXED IND 2.220%UH 100MOHM 4300M |
3,000 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 2.6 A | 3.5A | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
|
MWLB0601S-8R2MTFIXED IND 8.220%UH 280MOHM 2500M |
3,000 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 8.2 µH | ±20% | 1.5 A | 2.2A | Unshielded | 280mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|
|
MWLB0501S-4R7MTFIXED IND 4.720%UH 175MOHM 2500M |
3,000 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 1.8 A | 2.2A | Unshielded | 175mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.201" L x 0.201" W (5.10mm x 5.10mm) | 0.039" (1.00mm) |
|
|
MWLB0501S-2R2MTFIXED IND 2.220%UH 105MOHM 3500M |
3,000 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 2.5 A | 3A | Unshielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.201" L x 0.201" W (5.10mm x 5.10mm) | 0.039" (1.00mm) |
|
|
MWLB0401S-4R7MTFIXED IND 4.720%UH 160MOHM 2600M |
2,998 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 1.4 A | 2.1A | Unshielded | 186mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
|
MWLB0601S-6R8MTFIXED IND 6.820%UH 197MOHM 2500M |
2,989 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 6.8 µH | ±20% | 1.8 A | 2.2A | Unshielded | 197mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|
|
MWLB0401S-1R0MTFIXED IND 1.020%UH 50MOHM 4000MA |
2,985 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 3.1 A | 3.5A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
PA4342.333ANLTFIXED IND 33UH 3.5A 91 MOHM SMD |
2,883 | - |
|
数据表 |
PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.5 A | 5A | Shielded | 91mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWLB0601S-100MTFIXED IND 1020%UH 310MOHM 2100MA |
2,630 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | 1.4 A | 1.9A | Unshielded | 310mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|
|
MWLB0401S-100MTFIXED IND 1020%UH 27015%MOHM 160 |
2,483 | - |
|
数据表 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | 1.3 A | 1.6A | Unshielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
|
SRR1280A-560MFIXED IND 56UH 2.6A 100 MOHM SMD |
2,400 | - |
|
数据表 |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 2.6 A | 2.5A | Shielded | 100mOhm Max | 24 @ 2.52MHz | 7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280A-6R8YFIXED IND 6.8UH 7.6A 18.5MOHM SM |
2,314 | - |
|
数据表 |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 7.6 A | 8A | Shielded | 18.5mOhm Max | 20 @ 100kHz | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
74453147FIXED IND 47UH 600MA 0.65OHM SMD |
1,945 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 47 µH | ±20% | 600 mA | 1.3A | Shielded | 650mOhm Max | - | 12.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
PF0464.104NLFIXED IND 100UH 850MA 505MOHM SM |
1,405 | - |
|
数据表 |
PF0464NL | Nonstandard | Tray | Active | - | - | 100 µH | ±20% | 850 mA | 540mA | Shielded | 505mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
|
CMLE064TR15MS1C-1FIXED IND 150NH 40A 0.67MOHM SMD |
1,399 | - |
|
数据表 |
CMLE064T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 40 A | 46A | Shielded | 0.67mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.260" W (7.60mm x 6.60mm) | 0.157" (4.00mm) |
|
MWSA0605S-220MTFIXED IND 22UH 2.6A 140MOHM SMD |
995 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 22 µH | ±20% | 2.6 A | 3.5A | Shielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
SPM5010T-1R0M-LRFIXED IND 1UH 3.3A 60.5 MOHM SMD |
987 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.3 A | 5A | Shielded | 60.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
